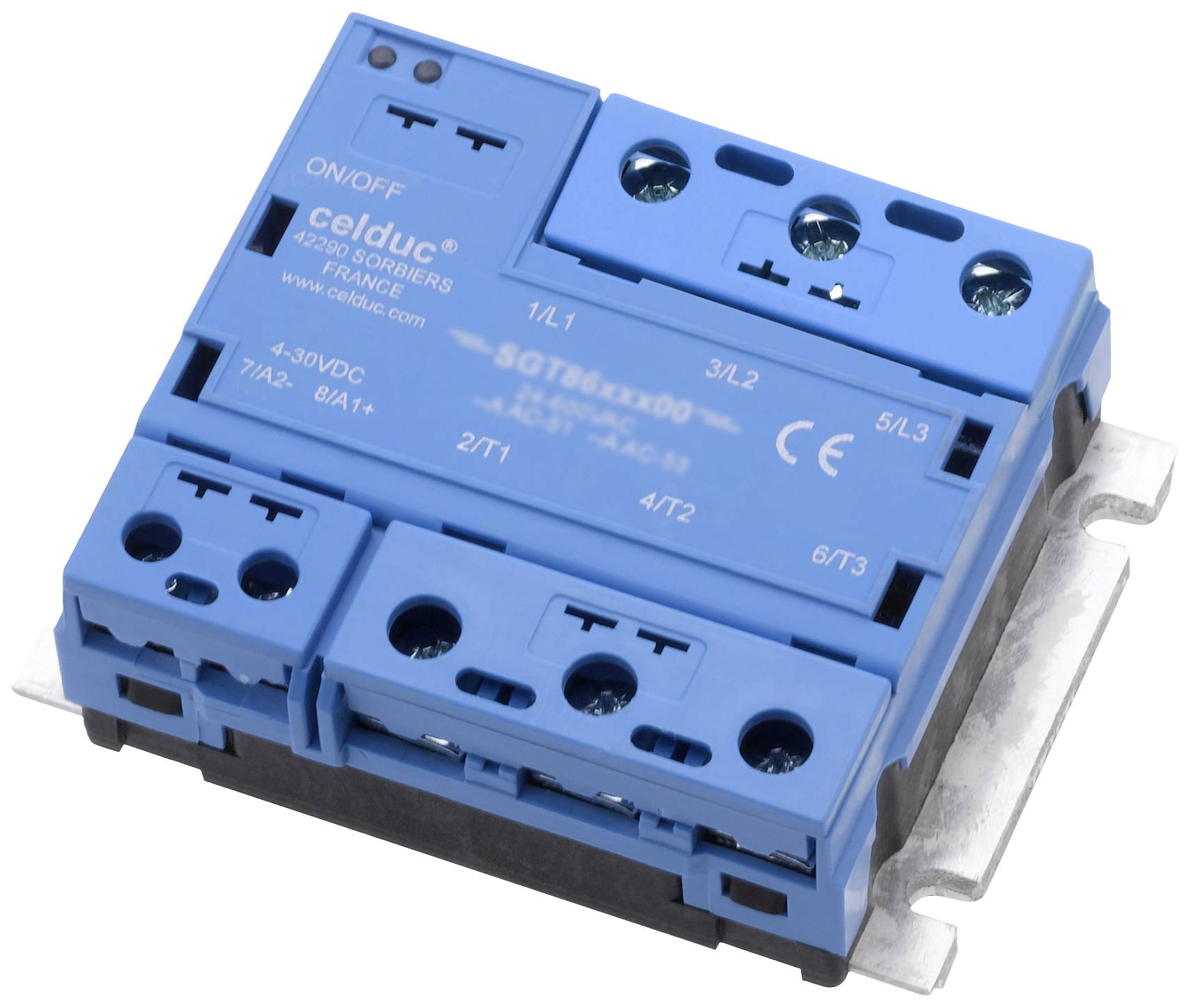

Celduc SSR SGT8678500 16 A Switching voltage (max.): 520 V AC Zero crossing 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSR
Control voltage (min.)
24 V AC
24 V DC
Control voltage (max.)
255 V AC
255 V DC
Switching voltage (max.)
520 V AC
Datasheet (PDF)
Number
Minimum order quantity: 16
Multiple: 16
Total (€ 256.30 / piece)
€ 4,100.80
plus VAT.
14-day return policy included
Technical specifications
- Thyristor rated values: 3x75A
- Max. Switching current (A): 3x16A AC-3 @40°C
- 3x54A AC-1 @40°C
- Function AC on/off Zero-Cross
- Relay type (AC or DC): AC
- Series: SGT 2G
- Heatsink included: No.
- Housing type: Standard
- Applications: (AC-1 / LC A) heating elements
- (AC-3 / LC B) MOTORS
- (AC-5a / LC C) discharge lamps
- (AC-5a / LC D) incandescent lamps and infrared lamps
- (AC-5b/DC-6) LEDs
- (AC-6b / LC F) Capacitors
- (AC-14/AC-15/DC-13) electromagnetic valves and electromagnets
- (AC-14/AC-15/DC-13/DC-14) CONTACTORS
- Number of switched phases: 3 phases - 1 control
- Protection (RC, Varistor, TVS): RC ; VDR
- Packaging type
Piece
- Product type
SSR
- Type
SGT8678500
- Switching type
Zero crossing
- Connection
Screws
- Control voltage (min.)
24 V AC
24 V DC
- Control voltage (max.)
255 V AC
255 V DC
- Control voltage range
24, 24 - 255, 255 V AC, V DC
- Surge current (max.)
1200 A
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
520 V AC
- Current load (max.)
16 A
- Output voltage (max.)
520 V AC
- Max. output current
54 A
- Contact type
1 maker
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Content
1 pc(s)
- Mounting type
Screws
Documents & Downloads
Datasheet
Datasheet 3222008 Celduc SSR SGT8678500 16 A Switching voltage (max.): 520 V AC Zero crossing 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3222008 Celduc SSR SGT8678500 16 A Switching voltage (max.): 520 V AC Zero crossing 1 pc(s)
Description
Cellduc SSR - SGT8678500
