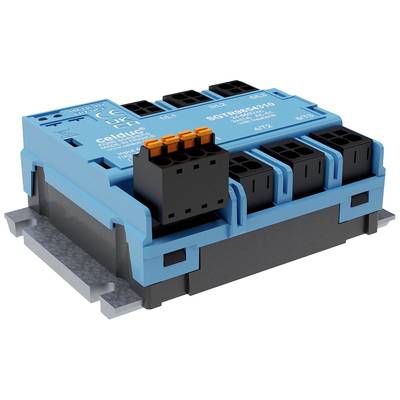

Celduc SSR SGTR9854310 41 A Switching voltage (max.): 660 V AC Zero crossing 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSR
Control voltage (min.)
4 V DC
Control voltage (max.)
30 V DC
Switching voltage (max.)
660 V AC
Datasheet (PDF)
Number
Minimum order quantity: 16
Multiple: 16
Total (€ 210.08 / piece)
€ 3,361.28
plus VAT.
14-day return policy included
Technical specifications
- Thyristor rated values: 3x50A
- Max. Switching current (A): 3x41A AC-1 @40°C
- Function AC on/off Zero-Cross
- Relay type (AC or DC): AC
- Series: SGTR9
- Heatsink included: No.
- Housing type: Standard
- Applications: (AC-1 / LC A) heating elements
- Number of switched phases: 3 phases - 1 control
- Protection (RC, varistor, TV): TVS
- Packaging type
Piece
- Product type
SSR
- Type
SGTR9854310
- Switching type
Zero crossing
- Connection
Push-in connector
- Control voltage (min.)
4 V DC
- Control voltage (max.)
30 V DC
- Control voltage range
4 - 30 V DC
- Control current (max.)
25 mA
- Surge current (max.)
750 A
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
660 V AC
- Current load (max.)
41 A
- Output voltage (max.)
660 V AC
- Max. output current
41 A
- Contact type
1 maker
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Content
1 pc(s)
- Mounting type
Screws
Documents & Downloads
Datasheet
Datasheet 3222011 Celduc SSR SGTR9854310 41 A Switching voltage (max.): 660 V AC Zero crossing 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3222011 Celduc SSR SGTR9854310 41 A Switching voltage (max.): 660 V AC Zero crossing 1 pc(s)
Description
Cellduc SSR - SGTR9854310
