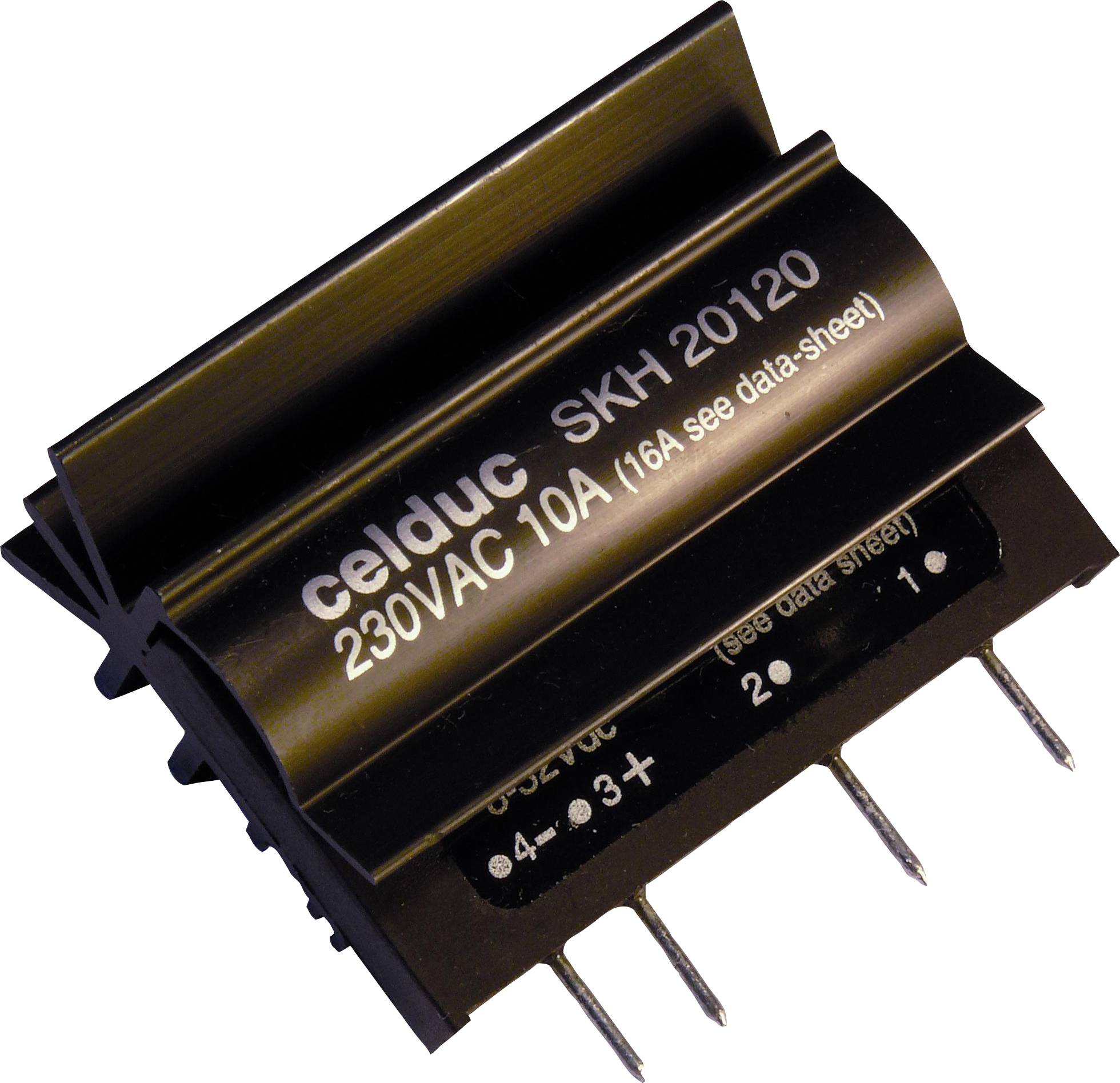

Image similar

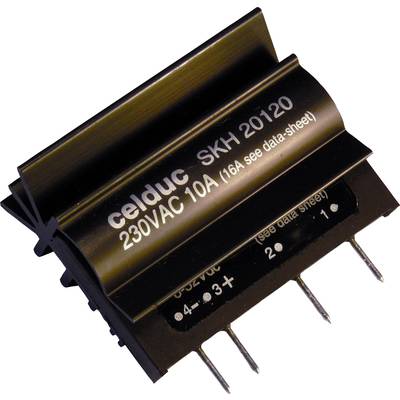

Image similar
Celduc SSR SKH20240 10 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSR
Control voltage (min.)
8 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
600 V AC
Datasheet (PDF)
Number
Total (€ 68.90 / piece)
€ 68.90
plus VAT.
Technical specifications
- Thyristor rated values: 10A
- Max. Switching current (A) 10A
- Function AC on/off Zero-Cross
- Relay type (AC or DC): AC
- Series: SK
- Heatsink included: Yes
- Housing type PCB relay
- Applications: (AC-1 / LC A) heating elements
- (AC-3 / LC B) MOTORS
- (AC-5a / LC C) discharge lamps
- (AC-5a / LC D) incandescent lamps and infrared lamps
- (AC-5b/DC-6) LEDs
- (AC-6A / LC E) transformers
- (AC-6b / LC F) Capacitors
- (AC-14/AC-15/DC-13) electromagnetic valves and electromagnets
- (AC-14/AC-15/DC-13/DC-14) CONTACTORS
- Number of switched phases: 1 phase
- Packaging type
Piece
- Product type
SSR
- Type
SKH20240
- Switching type
Zero crossing
- Connection
Print
- Control voltage (min.)
8 V DC
- Control voltage (max.)
32 V DC
- Control voltage range
8 - 32 V DC
- Control current (max.)
18 mA
- Surge current (max.)
300 A
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
600 V AC
- Current load (max.)
10 A
- Output voltage (max.)
600 V AC
- Max. output current
10 A
- Contact type
1 maker
- Min. temperature
-40 °C
- Max. temperature
+80 °C
- Content
1 pc(s)
- Mounting type
PCB
Documents & Downloads
Datasheet
Datasheet 3222015 Celduc SSR SKH20240 10 A Switching voltage (max.): 600 V AC Zero crossing 1 pc(s)
Description
Cellduc SSR - SKH20240
