Buy Celduc SSR SKL20240 22 A Switching voltage (max.): 600 V AC 1 pc(s)

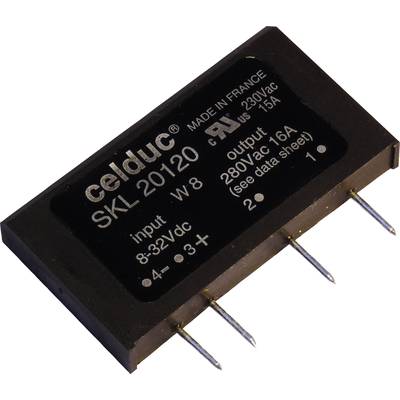

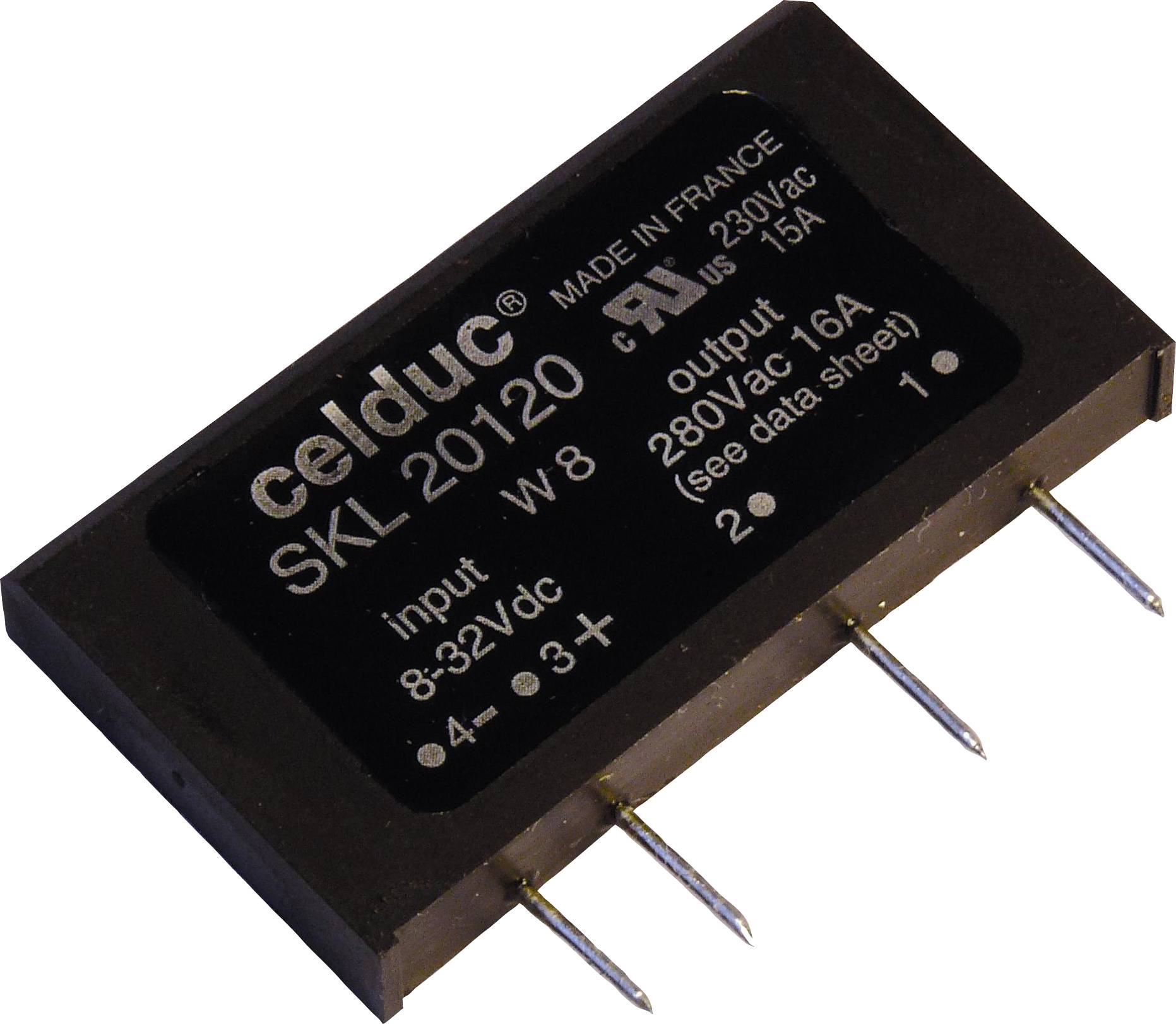

A black electronic component with the inscription 'celduc SKL 20120'. The component has connection pins and technical specifications.

Image similar

Datasheet (PDF)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Minimum order quantity: 20

Total (€ 55.45 / piece)

€

Report legal concerns

Technical specifications

Thyristor ratings: 22A
Max. Switching current (A) 22A
Function AC on/off Zero-Cross
Relay type (AC or DC): AC
Series: SK
Heatsink included: No.
Housing type PCB relay
Applications: (AC-1 / LC A) heating elements
(AC-3 / LC B) MOTORS
(AC-5a / LC C) discharge lamps
(AC-5a / LC D) incandescent lamps and infrared lamps
(AC-5b/DC-6) LEDs
(AC-6A / LC E) transformers
(AC-6b / LC F) Capacitors
(AC-14/AC-15/DC-13) electromagnetic valves and electromagnets
(AC-14/AC-15/DC-13/DC-14) CONTACTORS
Number of switched phases: 1 phase

Type: SKL20240

Connection: Print

Control voltage (min.): 8 V DC

Control voltage (max.): 32 V DC

Control voltage range: 8 - 32 V DC

Control current (max.): 18 mA

Surge current (max.): 300 A

Switching voltage (min.): 24 V AC

Switching voltage (max.): 600 V AC

Current load (max.): 22 A

Contact type: 1 maker

Min. temperature: -40 °C

Max. temperature: +80 °C

Content: 1 pc(s)

Mounting type: PCB

Product type: SSR

Documents & Downloads

Datasheet

Datasheet 3222018 Celduc SSR SKL20240 22 A Switching voltage (max.): 600 V AC 1 pc(s)

Description

Cellduc SSR - SKL20240

This text is machine translated.

What kind of Solid State Relays are you looking for?

More interesting products

(^*All information is plus legal VAT)

TRU COMPONENTS SSR TC-GSR-1-40DA 40 A Switching voltage (max.): 480 V AC DC circuit 1 pc(s)

Conrad Electronic

€ 8.39^*

TRU COMPONENTS SSR TC-GSR-1-40DD 40 A Switching voltage (max.): 220 V DC DC circuit 1 pc(s)

Conrad Electronic

€ 9.24^*

TRU COMPONENTS SSR TC-GSR-1-25DD 25 A Switching voltage (max.): 220 V DC DC circuit 1 pc(s)

Conrad Electronic

€ 8.39^*

TRU COMPONENTS SSR TC-GSR-1-100DD 100 A Switching voltage (max.): 220 V DC DC circuit 1 pc(s)

Conrad Electronic

€ 26.04^*

TRU COMPONENTS SSR TC-12705364 60 A Switching voltage (max.): 480 V AC Zero crossing 1 pc(s)

Conrad Electronic

€ 16.80^*

TRU COMPONENTS SSR TC-12705356 10 A Switching voltage (max.): 480 V AC Zero crossing 1 pc(s)

Conrad Electronic

€ 9.24^*

TRU COMPONENTS SSR TC-12705388 40 A Switching voltage (max.): 480 V AC Zero crossing 1 pc(s)

Conrad Electronic

€ 18.48^*

TRU COMPONENTS SSR TC-GSR-1-10DA 10 A Switching voltage (max.): 480 V AC DC circuit 1 pc(s)

Conrad Electronic

€ 7.55^*

TRU COMPONENTS SSR TC-12705372 40 A Switching voltage (max.): 250 V DC DC circuit 1 pc(s)

Conrad Electronic

€ 13.44^*

TRU COMPONENTS SSR TC-12705368 25 A Switching voltage (max.): 250 V DC DC circuit 1 pc(s)

Conrad Electronic

€ 13.44^*

TRU COMPONENTS Heatsink TC-12705408 1 pc(s)

Conrad Electronic

€ 10.08^*

TRU COMPONENTS SSR TC-12705392 60 A Switching voltage (max.): 480 V AC Zero crossing 1 pc(s)

Conrad Electronic

€ 22.68^*

TRU COMPONENTS SSR TC-GSR-1-60DA 60 A Switching voltage (max.): 480 V AC 1 pc(s)

Conrad Electronic

€ 15.12^*

-13%

Solid-state relay module PLC-OSC-230UC/230AC/ 1 2967882 Phoenix Contact

Conrad Electronic

€ 315.13

€ 273.11^*

TRU COMPONENTS SSR TC-12705376 100 A Switching voltage (max.): 250 V DC DC circuit 1 pc(s)

Conrad Electronic

€ 29.40^*

TRU COMPONENTS SSR TC-GSR8-25DA48Z 25 A Switching voltage (max.): 480 V AC Zero crossing 1 pc(s)

Conrad Electronic

€ 17.64^*

TRU COMPONENTS SSR TC-12705380 15 A Switching voltage (max.): 480 V AC Zero crossing 1 pc(s)

Conrad Electronic

€ 15.12^*

TRU COMPONENTS Heatsink TC-12705396 1 pc(s)

Conrad Electronic

€ 2.34^*

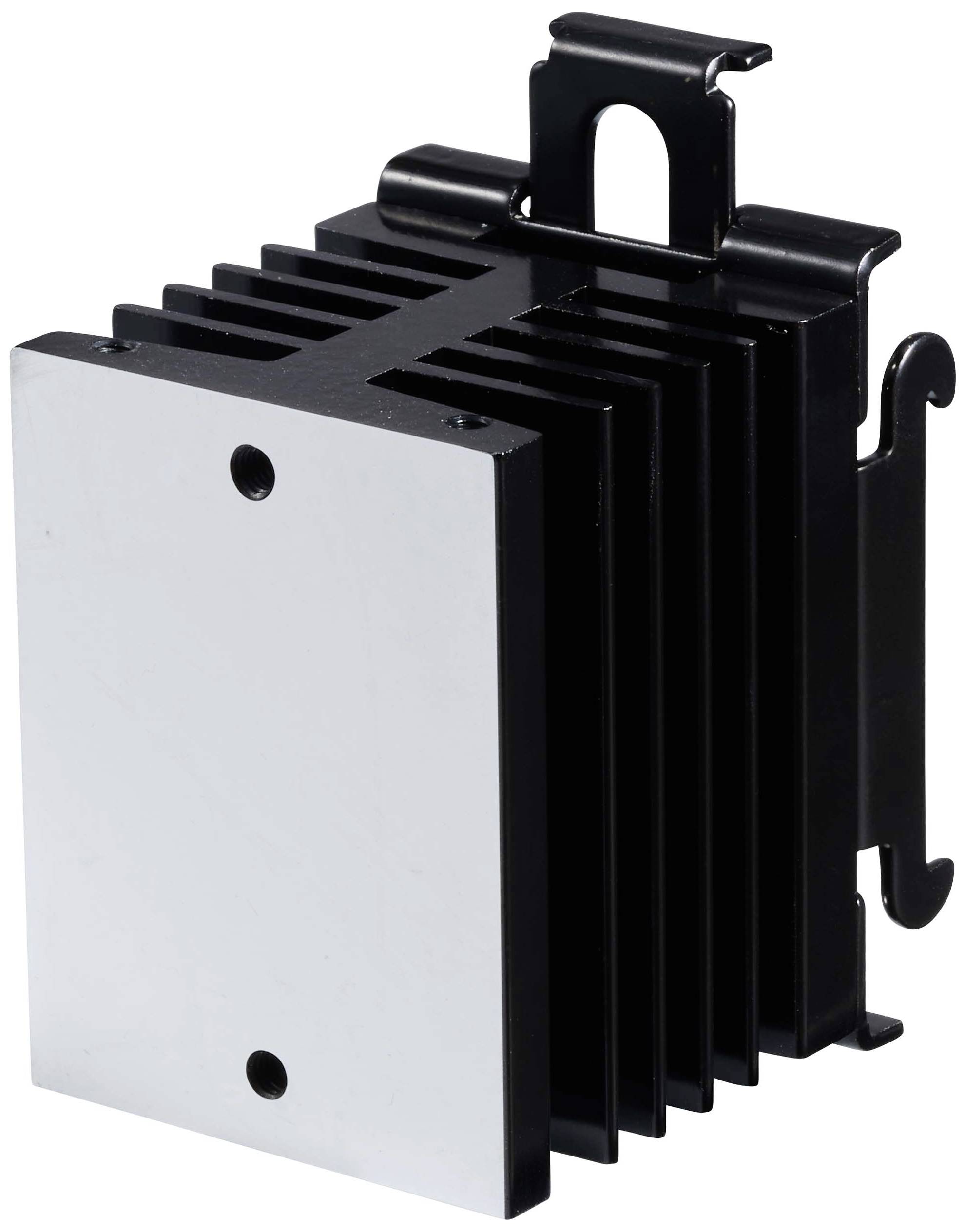

TRU COMPONENTS Heatsink TC-12705404 1 pc(s)

Conrad Electronic

€ 10.08^*

TRU COMPONENTS SSR TC-12705360 40 A Switching voltage (max.): 480 V AC Zero crossing 1 pc(s)

Conrad Electronic

€ 11.76^*

Finder SSR 34.81.7.024.9024 Switching voltage (max.): 33 V DC Instant response 1 pc(s)

Conrad Electronic

€ 19.32^*

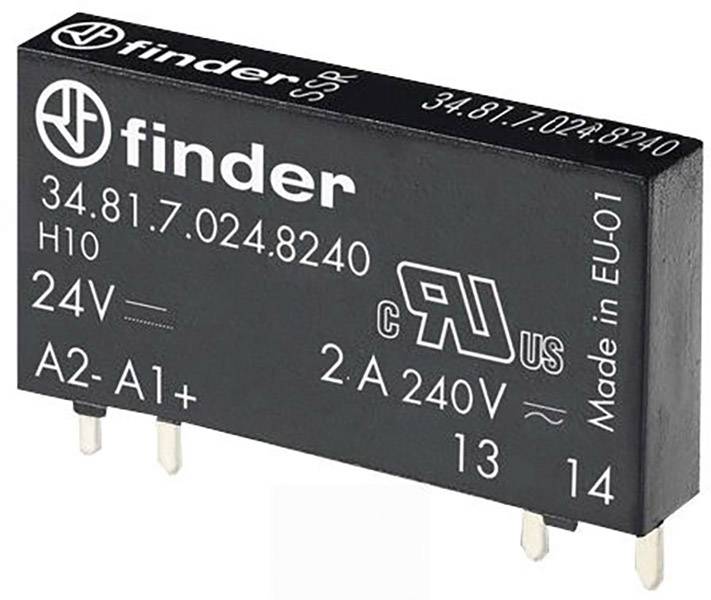

Finder SSR 34.81.7.024.8240 Switching voltage (max.): 275 V AC Zero crossing 1 pc(s)

Conrad Electronic

€ 21.00

€ 20.16^*

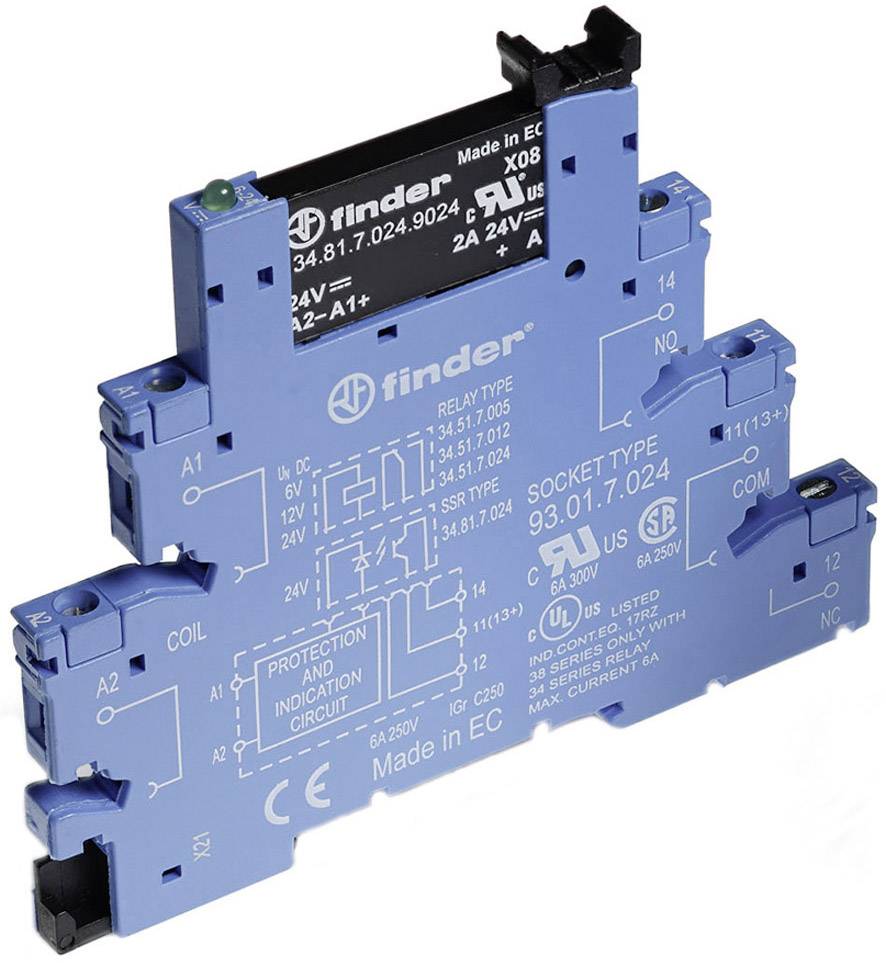

Finder 38.81.7.024.9024 - 2A Relay Interface Module, SSR, N/A 24V DC
