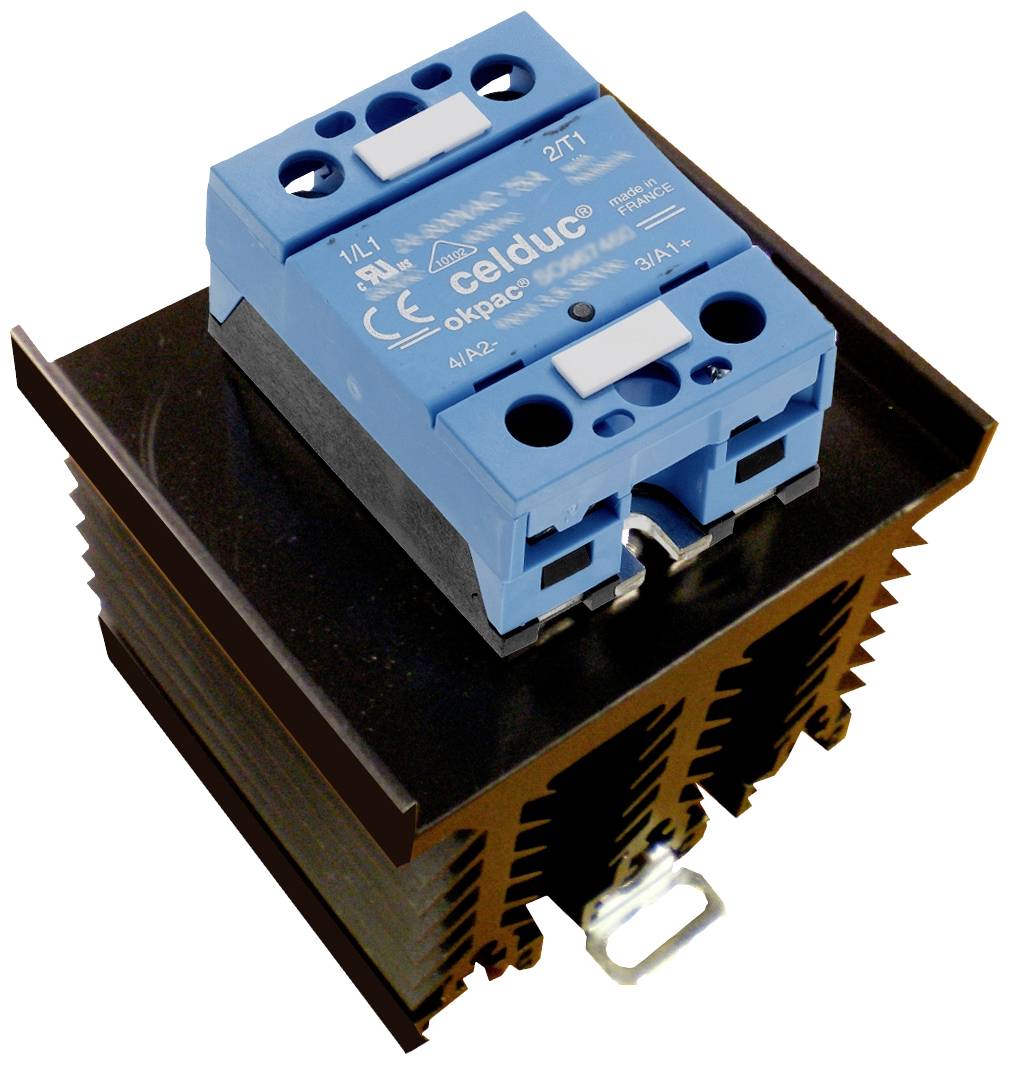

Image similar

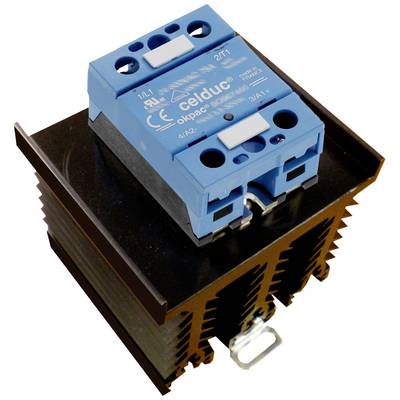

Image similar
Celduc SSR SO887040-WF108 75 A Switching voltage (max.): 690 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSR
Control voltage (min.)
3.5 V DC
Control voltage (max.)
32 V DC
Switching voltage (max.)
690 V AC
Current load (max.)
75 A
Datasheet (PDF)
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 201.67 / piece)
€ 2,016.70
plus VAT.
Technical specifications
- Thyristor ratings: 75A
- Max. Switching current (A) 75A
- Function AC on/off Zero-Cross
- Relay type (AC or DC): AC
- SO8 Series
- Heatsink included: Yes
- Casing type: Hockey puck
- Standard
- Applications: (AC-1 / LC A) heating elements
- (AC-3 / LC B) MOTORS
- (AC-5a / LC C) discharge lamps
- (AC-5a / LC D) incandescent lamps and infrared lamps
- (AC-5b/DC-6) LEDs
- (AC-6b / LC F) Capacitors
- (AC-14/AC-15/DC-13) electromagnetic valves and electromagnets
- (AC-14/AC-15/DC-13/DC-14) CONTACTORS
- Number of switched phases: 1 phase
- Protection (RC, varistor, TV): TVS
- Product type
SSR
- Type
SO887040-WF108
- Connection
Screws
- Control voltage (min.)
3.5 V DC
- Control voltage (max.)
32 V DC
- Control voltage range
3.5 - 32 V DC
- Control current (max.)
13 mA
- Surge current (max.)
1200 A
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
690 V AC
- Current load (max.)
75 A
- Contact type
1 maker
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Content
1 pc(s)
- Mounting type
Screws
Documents & Downloads
Datasheet
Datasheet 3222037 Celduc SSR SO887040-WF108 75 A Switching voltage (max.): 690 V AC 1 pc(s)
Description
CELLDUC SSR – SO887040-WF108
