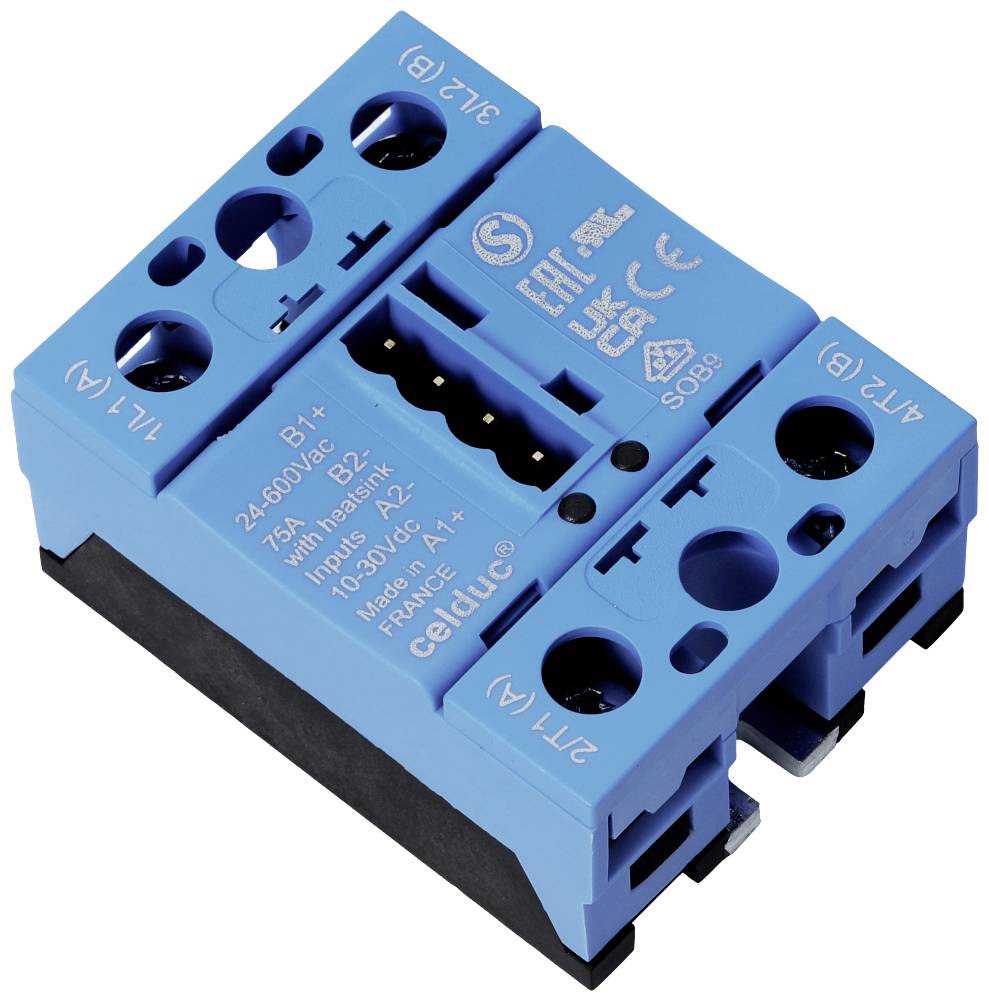

Celduc SSR SOB867640 75 A Switching voltage (max.): 510 V AC Zero crossing 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSR
Control voltage (min.)
8 V DC
Control voltage (max.)
30 V DC
Switching voltage (max.)
510 V AC
Current load (max.)
75 A
Datasheet (PDF)
Number
Minimum order quantity: 19
Multiple: 19
Total (€ 172.26 / piece)
€ 3,272.94
plus VAT.
14-day return policy included
Technical specifications
- Thyristor ratings: 2x75A
- Max. Switching current (A) 2 x 75A
- Function AC on/off Zero-Cross
- Relay type (AC or DC): AC
- Series SOB
- Heatsink included: No.
- Casing type: Hockey puck
- Standard
- Applications: (AC-1 / LC A) heating elements
- (AC-3 / LC B) MOTORS
- (AC-5a / LC C) discharge lamps
- (AC-5a / LC D) incandescent lamps and infrared lamps
- (AC-5b/DC-6) LEDs
- (AC-6b / LC F) Capacitors
- (AC-14/AC-15/DC-13) electromagnetic valves and electromagnets
- (AC-14/AC-15/DC-13/DC-14) CONTACTORS
- Number of switched phases: 2 phases - 2 controllers
- Protection (RC, Varistor, TVS): On gate
- Product type
SSR
- Type
SOB867640
- Switching type
Zero crossing
- Connection
Screws
- Control voltage (min.)
8 V DC
- Control voltage (max.)
30 V DC
- Control voltage range
8 - 30 V DC
- Control current (max.)
24 mA
- Surge current (max.)
1200 A
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
510 V AC
- Current load (max.)
75 A
- Output voltage (max.)
510 V AC
- Max. output current
75 A
- Contact type
1 maker
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Content
1 pc(s)
- Mounting type
Screws
Documents & Downloads
Datasheet
Datasheet 3222049 Celduc SSR SOB867640 75 A Switching voltage (max.): 510 V AC Zero crossing 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3222049 Celduc SSR SOB867640 75 A Switching voltage (max.): 510 V AC Zero crossing 1 pc(s)
Description
Cellduc SSR - SOB867640
