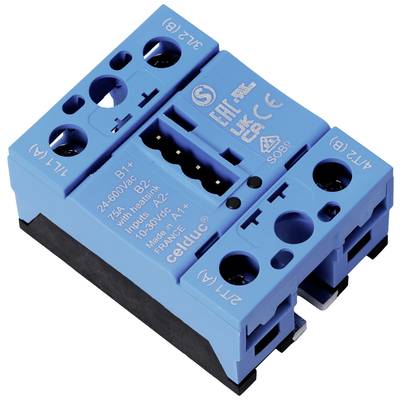

Celduc SSR SOB963660 35 A Switching voltage (max.): 600 V AC 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSR
Control voltage (min.)
10 V DC
Control voltage (max.)
30 V DC
Switching voltage (max.)
600 V AC
Current load (max.)
35 A
Datasheet (PDF)
Number
Minimum order quantity: 19
Multiple: 19
Total (€ 134.45 / piece)
€ 2,554.55
plus VAT.
Technical specifications
- Thyristor rated values: 2 x 35A
- Max. Switching current (A) 2 x 35A
- Function AC on/off Zero-Cross
- Relay type (AC or DC): AC
- Series SOB
- Heatsink included: No.
- Casing type: Hockey puck
- Standard
- Applications: (AC-1 / LC A) heating elements
- Number of switched phases: 2 phases - 2 controllers
- Product type
SSR
- Type
SOB963660
- Connection
Screws
- Control voltage (min.)
10 V DC
- Control voltage (max.)
30 V DC
- Control voltage range
10 - 30 V DC
- Control current (max.)
24 mA
- Surge current (max.)
500 A
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
600 V AC
- Current load (max.)
35 A
- Contact type
1 maker
- Min. temperature
-55 °C
- Max. temperature
+100 °C
- Content
1 pc(s)
- Mounting type
Screws
Documents & Downloads
Datasheet
Datasheet 3222053 Celduc SSR SOB963660 35 A Switching voltage (max.): 600 V AC 1 pc(s)
Description
Cellduc SSR - SOB963660
