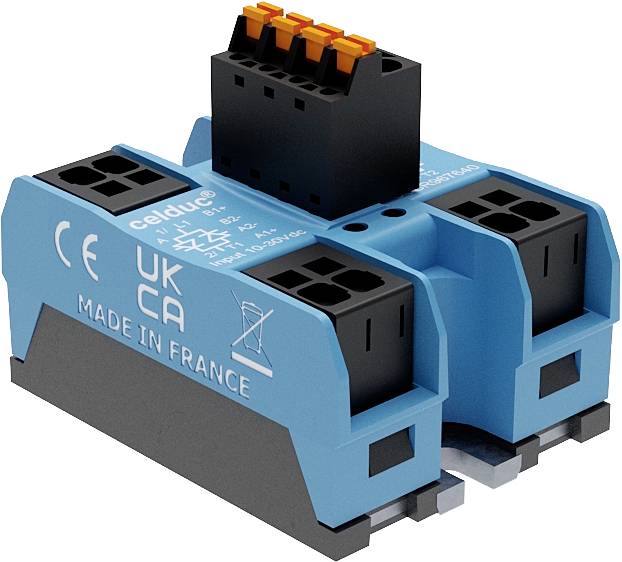

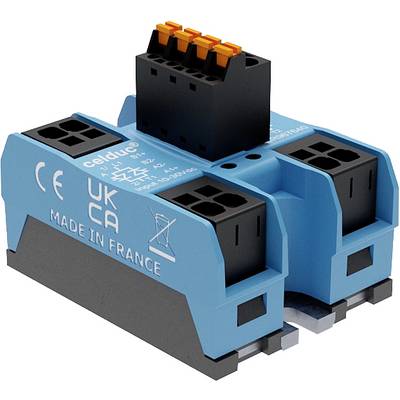

Celduc SSR SOBR943640-HE 35 A Switching voltage (max.): 280 V AC Zero crossing 1 pc(s)
EAN:
Part number:
Item no:
Product type
SSR
Control voltage (min.)
10 V DC
Control voltage (max.)
30 V DC
Switching voltage (max.)
280 V AC
Current load (max.)
35 A
Datasheet (PDF)
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
Technical specifications
- Thyristor rated values: 2 x 35A
- Max. Switching current (A): 2 x 35A AC-1 @40°C
- Function AC on/off Zero-Cross
- Relay type (AC or DC): AC
- Series SOBR9
- Heatsink included: No.
- Casing type: Hockey puck
- Standard
- Applications: (AC-1 / LC A) heating elements
- Number of switched phases: 2 phases - 2 controllers
- Protection (RC, varistor, TV): TVS
- Product type
SSR
- Type
SOBR943640-HE
- Switching type
Zero crossing
- Connection
Push-in connector
- Control voltage (min.)
10 V DC
- Control voltage (max.)
30 V DC
- Control voltage range
10 - 30 V DC
- Control current (max.)
24 mA
- Surge current (max.)
420 A
- Switching voltage (min.)
12 V AC
- Switching voltage (max.)
280 V AC
- Current load (max.)
35 A
- Output voltage (max.)
280 V AC
- Max. output current
35 A
- Contact type
1 maker
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Permanent current (max.)
35 A
- Content
1 pc(s)
- Mounting type
Screws
Documents & Downloads
Datasheet
Datasheet 3222059 Celduc SSR SOBR943640-HE 35 A Switching voltage (max.): 280 V AC Zero crossing 1 pc(s)
Description
CELLDUC SSR - SOBR943640-HE
