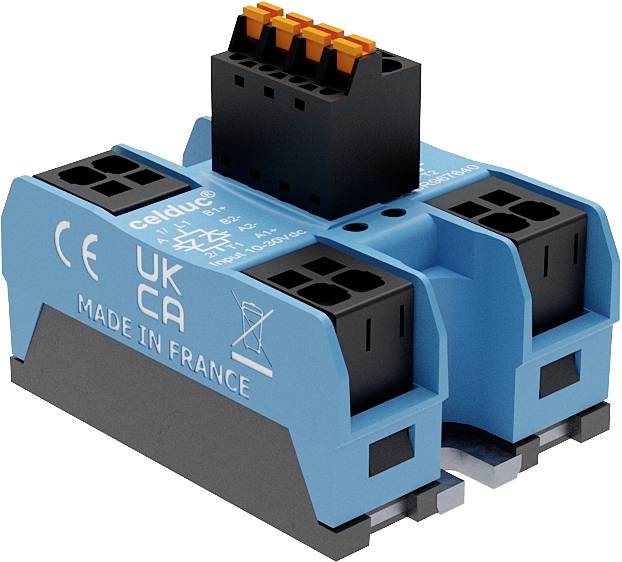

Celduc SSR SOBR965640-HE 41 A Switching voltage (max.): 660 V AC Zero crossing 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSR
Control voltage (min.)
10 V DC
Control voltage (max.)
30 V DC
Switching voltage (max.)
660 V AC
Datasheet (PDF)
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
14-day return policy included
Technical specifications
- Thyristor rated values: 2X50A
- Max. Switching current (A): 2 x 41A AC-1 @40°C
- Function AC on/off Zero-Cross
- Relay type (AC or DC): AC
- Series SOBR9
- Heatsink included: No.
- Casing type: Hockey puck
- Standard
- Applications: (AC-1 / LC A) heating elements
- Number of switched phases: 2 phases - 2 controllers
- Protection (RC, varistor, TV): TVS
- Packaging type
Piece
- Product type
SSR
- Type
SOBR965640-HE
- Switching type
Zero crossing
- Connection
Push-in connector
- Control voltage (min.)
10 V DC
- Control voltage (max.)
30 V DC
- Control voltage range
10 - 30 V DC
- Control current (max.)
24 mA
- Surge current (max.)
580 A
- Switching voltage (min.)
24 V AC
- Switching voltage (max.)
660 V AC
- Current load (max.)
41 A
- Output voltage (max.)
660 V AC
- Contact type
1 maker
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- Content
1 pc(s)
- Mounting type
Screws
Documents & Downloads
Datasheet
Datasheet 3222061 Celduc SSR SOBR965640-HE 41 A Switching voltage (max.): 660 V AC Zero crossing 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3222061 Celduc SSR SOBR965640-HE 41 A Switching voltage (max.): 660 V AC Zero crossing 1 pc(s)
Description
CELLDUC SSR - SOBR965640-HE
