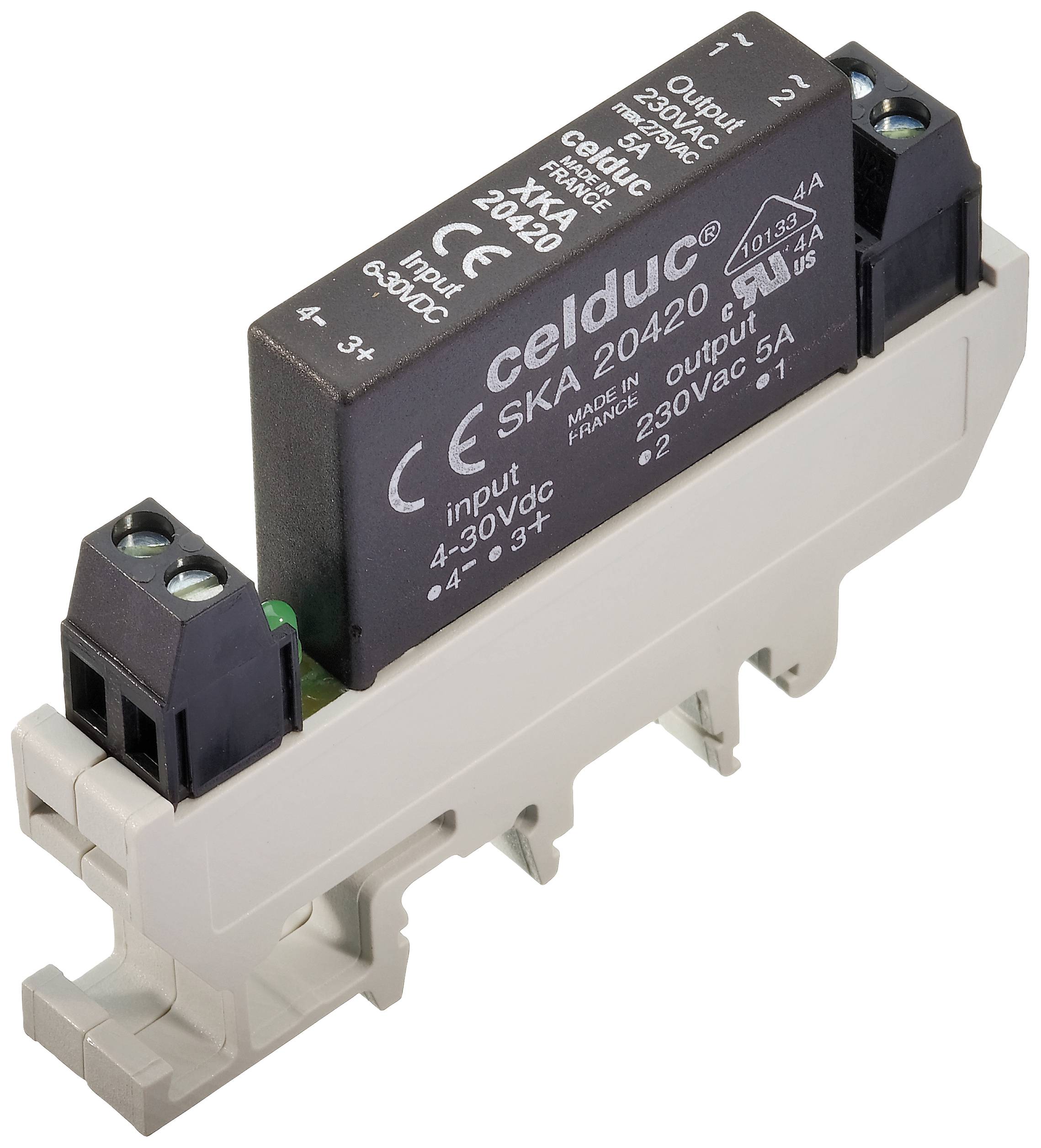

Image similar

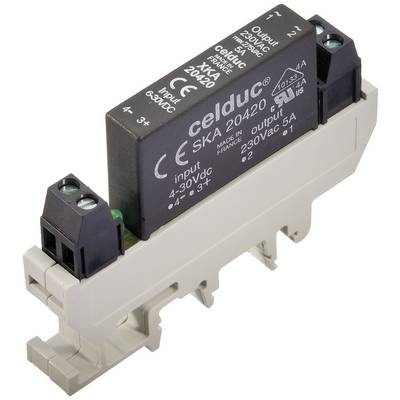

Image similar
Celduc SSR XKA70420 5 A Switching voltage (max.): 275 V AC Zero crossing 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
SSR
Control voltage (min.)
15 V AC
15 V DC
Control voltage (max.)
30 V AC
30 V DC
Switching voltage (max.)
275 V AC
Datasheet (PDF)
Number
Minimum order quantity: 22
Multiple: 22
Total (€ 57.13 / piece)
€ 1,256.86
plus VAT.
Technical specifications
- Thyristor rated values: 5A
- Max. Switching current (A) 5A
- Function AC on/off Zero-Cross
- Relay type (AC or DC): AC
- Series XK
- Heatsink included: No.
- Housing type: Interface relays
- Applications: (AC-1 / LC A) heating elements
- (AC-3 / LC B) MOTORS
- (AC-5a / LC C) discharge lamps
- (AC-5a / LC D) incandescent lamps and infrared lamps
- (AC-5b/DC-6) LEDs
- (AC-14/AC-15/DC-13) electromagnetic valves and electromagnets
- (AC-14/AC-15/DC-13/DC-14) CONTACTORS
- SPS Inputs/Outputs
- Number of switched phases: 1 phase
- Protection (RC, varistor, TV) VDR
- Packaging type
Piece
- Product type
SSR
- Type
XKA70420
- Switching type
Zero crossing
- Connection
Screws
- Control voltage (min.)
15 V AC
15 V DC
- Control voltage (max.)
30 V AC
30 V DC
- Control voltage range
15, 15 - 30, 30 V AC, V DC
- Control current (max.)
14 mA
- Surge current (max.)
100 A
- Switching voltage (min.)
12 V AC
- Switching voltage (max.)
275 V AC
- Current load (max.)
5 A
- Output voltage (max.)
275 V AC
- Max. output current
5 A
- Contact type
1 maker
- Min. temperature
-40 °C
- Max. temperature
+80 °C
- Content
1 pc(s)
- Mounting type
DIN rail
Documents & Downloads
Datasheet
Datasheet 3222084 Celduc SSR XKA70420 5 A Switching voltage (max.): 275 V AC Zero crossing 1 pc(s)
Description
Cellduc SSR - XKA70420
