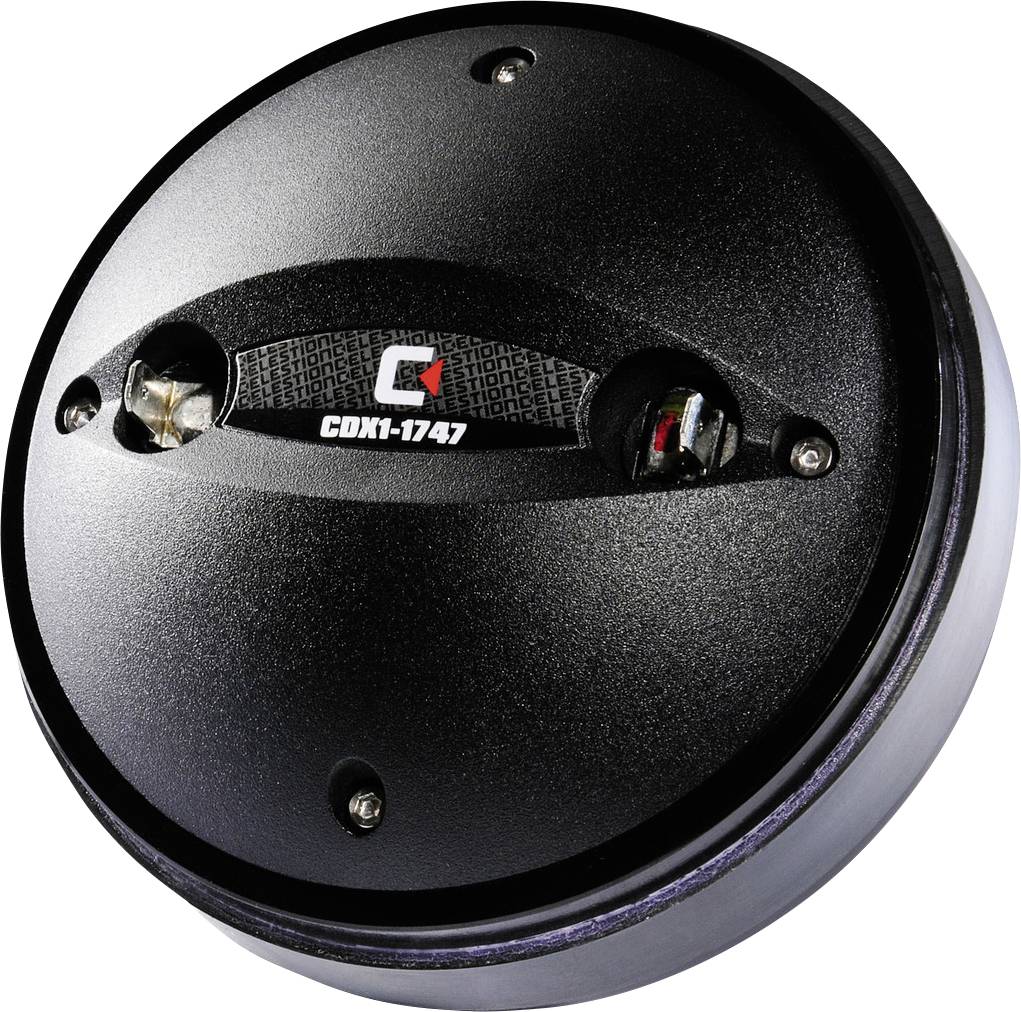

Celestion CDX1-1747/8 PA horn driver RMS capacity=60 W 8 Ω
EAN:
Part number:
Item no:
Technical specifications
- Net weight: 1.96 kg
- Transmission technology: Cable
- Frequency range 1000-20000 Hz
- Nominal capacity (RMS) 60 W.
- Characteristic sound pressure 110 dB/W/m
- Mounting hole: Depending on the horn
- Installation depth: Depending on the horn
- Dimensions: Ø 120 mm x 53 mm
- Outer diameter: 120 mm
- Width 120 mm
- Height: 120 mm
- Depth: 53 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 1.96 kg
- Speaker type 1"
- Gross weight: 2.06 kg
- Impedance (Z) 8 Ω
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):1600 Hz
- Music load capacity (MAX) 120 W
- Voice coil diameter 44 mm

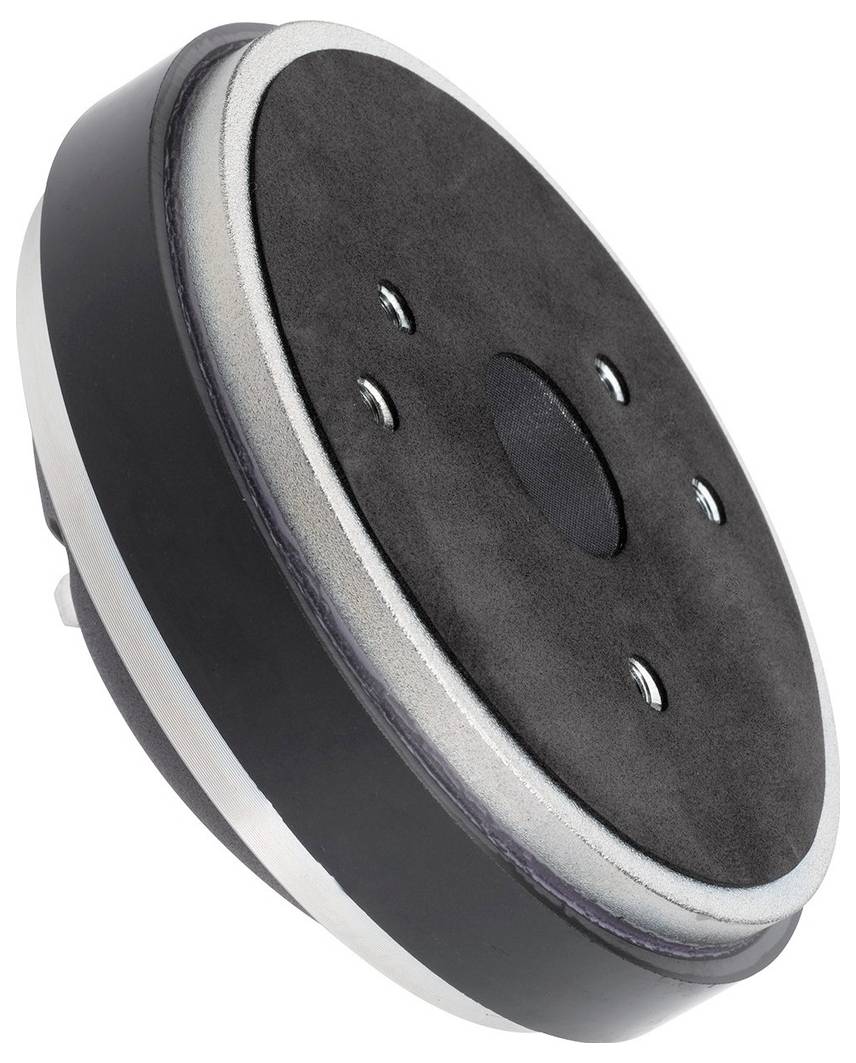

- Hole diameter: Ø 76 mm (2xM6), Ø 57.2 mm (3xM6)
- Voice coil material: Copper-coated aluminum flat wire
- Outlet opening 25 mm
- Product type
PA horn driver
- RMS capacity
60 W
- Max. load
120 W
- Min. frequency
1000 Hz
- Max. frequency
20000 Hz
- Frequency range
1000 Hz - 20000 Hz
- Impedance
8 Ω
- Weight
1.96 kg
- (Ø)
120 mm
- Width
120 mm
- Height
120 mm
- Factory colour
Black
- Depth
53 mm
- Sound pressure
110 dB
- Speaker size (inch)
1 inch
Documents & Downloads
Datasheet
Datasheet 3341026 Celestion CDX1-1747/8 PA horn driver RMS capacity=60 W 8 Ω
User & Safety Instructions
User & Safety Instructions 3341026 Celestion CDX1-1747/8 PA horn driver RMS capacity=60 W 8 Ω
Description
PA HORN DRIVER, 60 W, 8 Ω
High-quality 25 mm horn driver (1") with 44 mm voice coil (1.75") and ferrite magnet Modern development using finite element analysis (FEA) Standard 2-hole and 3-hole screw mounting Wide-band, extremely linear frequency response up to 20000 Hz Very high sound pressure with lowest distortions
This text is machine translated.
High-quality 25 mm horn driver (1") with 44 mm voice coil (1.75") and ferrite magnet Modern development using finite element analysis (FEA) Standard 2-hole and 3-hole screw mounting Wide-band, extremely linear frequency response up to 20000 Hz Very high sound pressure with lowest distortions
This text is machine translated.
Features
- Impedance (Z) 8 Ω
- Transmission technology: Cable
- Frequency range 1000-20000 Hz
- Rec. Cut-off frequency (fmax.) (12 dB/Oct):1600 Hz
- Nominal capacity (RMS) 60 W.
- Music load capacity (MAX) 120 W
- Characteristic sound pressure 110 dB/W/m
- Voice coil diameter: Ø 44 mm
- Voice coil material: Copper-coated aluminum flat wire
- Outlet opening 25 mm
- Mounting hole: Depending on the horn
- Installation depth: Depending on the horn
- Hole diameter: Ø 76 mm (2xM6),;Ø 57.2 mm (3xM6)
- Dimensions: Ø 120 mm x 53 mm
- Outer diameter: Ø 120 mm
- Width: Ø 120 mm
- Height: Ø 120 mm
- Depth: 53 mm
- Colour, black
- Ass. Operating temperature 0-40 °C
- Weight: 1.96 kg
- Packing: 1
- Speaker type 1"
- Packaging dimensions (W x H x L) 0.135 x 0.07 x 0.178 m
- Gross weight: 2.06 kg
- Net weight: 1.96 kg
