CellPack 407861 EASY-PROTECT/215 Connector gel box flexible: 0.2-4 mm² fixed: 0.2-4 mm² 1 pc(s) Black
EAN:
Part number:
Item no:
Product type
Connector gel box
Cross section (flexible) (min.)
0.2 mm²
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (min.)
0.2 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Number
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Height dimensions 17.80 mm
- Housing type 2
- Housing number: 1 pieces
- Terminal number: 1 pieces
- Protection class: IPX8
- Polypropylene housing
- Latch: Latch
- Yellow color: Yellow translucent
- Gel material: Polyurethane
- Flammability class housing:V2
- Product type
Connector gel box
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Cross section (inflexible) (max.)
4 mm²
- Factory colour
Black
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Content
1 pc(s)
- Dim
(L x W) 33.60 mm x 45.90 mm
- Manufacturer part #
407861
- Nominal voltage
450 V
- Width
45.90 mm
- Length
33.60 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3164791 CellPack 407861 EASY-PROTECT/215 Connector gel box flexible: 0.2-4 mm² fixed: 0.2-4 mm² 1 pc(s) Black
Security datasheet
Security datasheet 3164791 CellPack 407861 EASY-PROTECT/215 Connector gel box flexible: 0.2-4 mm² fixed: 0.2-4 mm² 1 pc(s) Black
Description

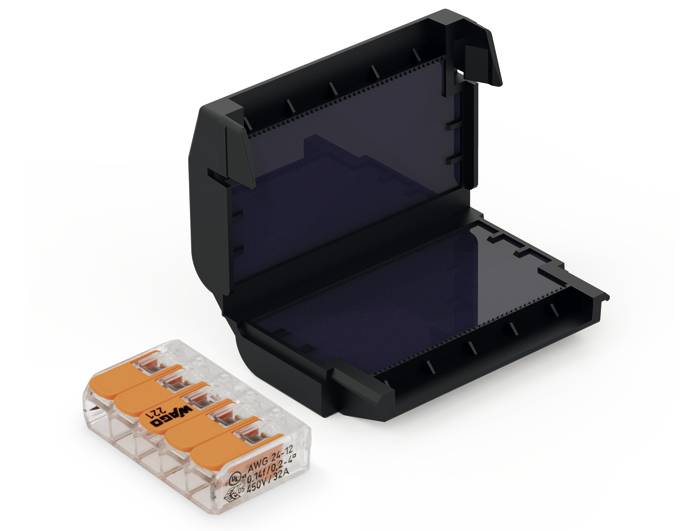

Yellow box with WAGO COMPACT connection terminals. Gel-filled casing for a simple, fast and safe moisture protection of WAGO COMPACT-connection terminals.
This text is machine translated.
This text is machine translated.
Features
- Protects the WAGO COMPACT connection terminal against moisture and water penetration according to IPX8
- VDE type-tested system according to EN 60998-2, approved with WAGO COMPACT connection terminals type 221
- Rigid, labeling and silicone-free gel
- UV-resistant, robust and accessible housing
- Fast, simple and safe mounting
- Ready to use
