CellPack 486520 EASYCELL/EASY5/V+ Gel connector sleeve Cable Ø range: 14 - 22 mm Content: 1 Set
EAN:
Part number:
Item no:
Product type
Gel connector sleeve
Cable Ø (max.)
22 mm
Min. cross section
6 mm²
max. cross section
16 mm²
Content
1 Set
Number
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
14-day return policy included
Highlights & Details

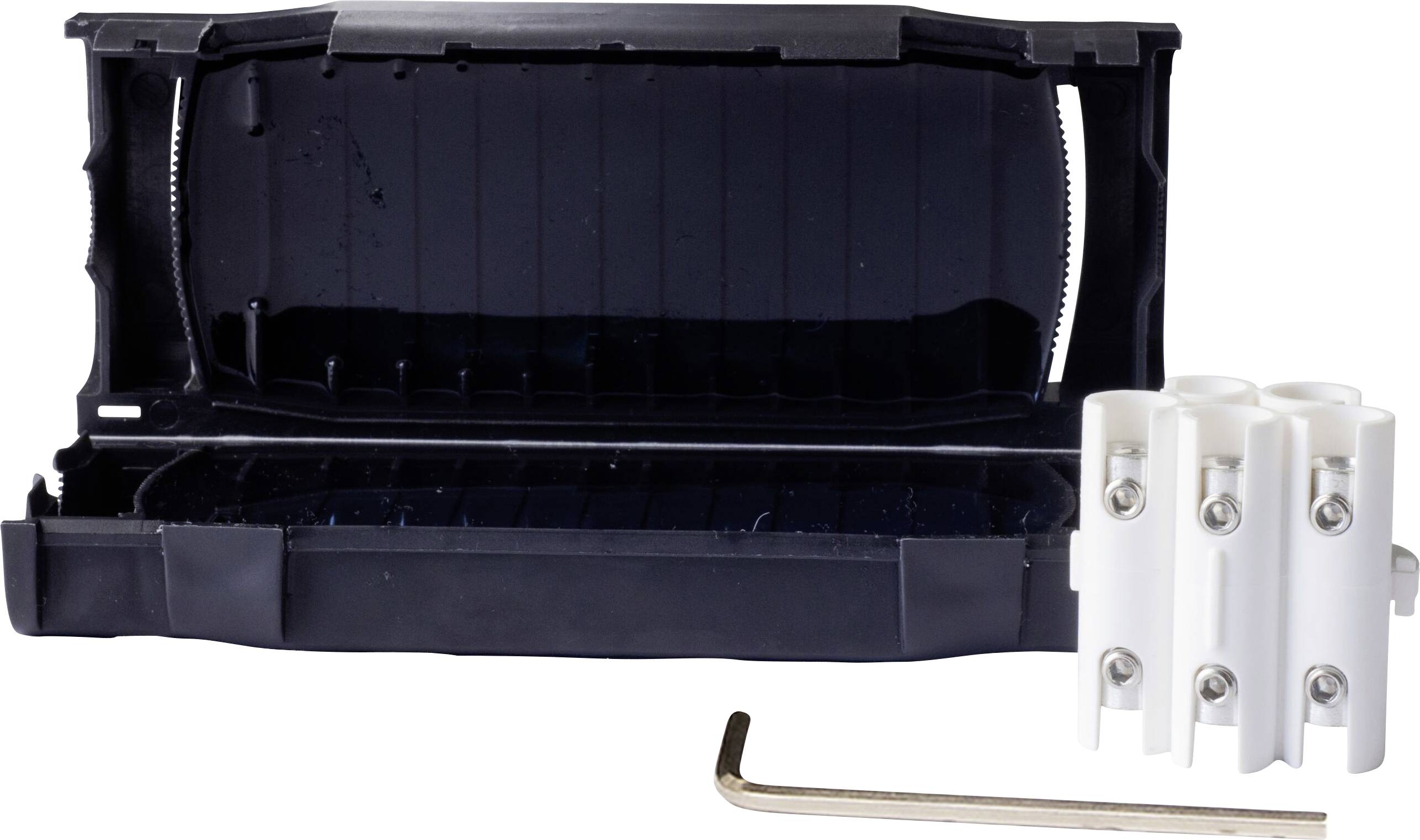

Gel connection sleeve with connector block
- Connection area is completely sealed by gel
- Easily accessible and ready to use
- New snap closing system (IP68), no cable ties required
- Flame-retardant, UV-resistant and impact-resistant plastic molded shell
- Fast, simple and safe mounting
Technical specifications
- Product type
Gel connector sleeve
- Cable Ø (max.)
22 mm
- Min. cross section
6 mm²
- max. cross section
16 mm²
- Content
1 Set
- Manufacturer part #
486520
- Dim
(L x W) 183 mm x 72 mm
- Factory colour
Black
- Cable Ø up to
14 mm
- Cable Ø range
14 - 22 mm
- Width
72 mm
- Length
183 mm
- Max. temperature
90 °C
- Min. temperature
-10 °C
- Type
EASYCELL/EASY5/V+
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3833436 CellPack 486520 EASYCELL/EASY5/V+ Gel connector sleeve Cable Ø range: 14 - 22 mm Content: 1 Set
Description
Can be used universally to connect all common plastic cables (e.g. N(A)YY, NYM, H05) in a cross-section range from 1.5 mm² to 6 mm². Suitable for copper and aluminum cable.
