Buy Chauvin Arnoux C.A 6526 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 200 GΩ

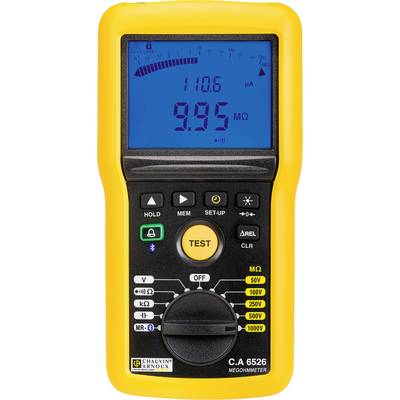

A yellow megohmmeter with a blue display shows measurement readings of 110.6 µA and 9.95 MΩ. It has various buttons and a rotary switch.

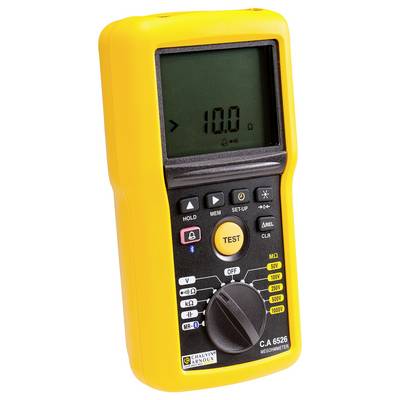

A yellow digital multimeter, model C.A 6526, displays a measurement value of '10.0'. It has buttons and a rotary switch for mode selection.

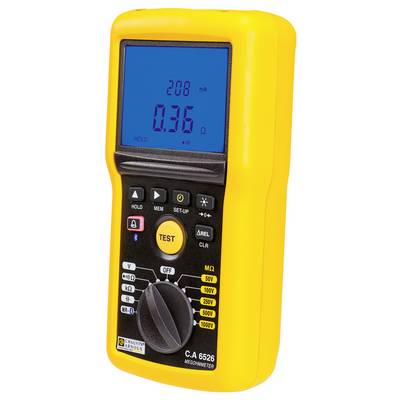

A yellow digital measuring device displays a reading of 0.36 ohms on its screen. It has various controls and connection options.

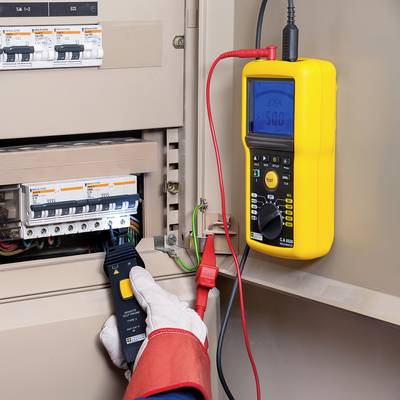

An electrician is measuring the electrical current in a distribution box using a yellow multimeter.

1/4

Datasheet (PDF)

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 827.73 / piece)

€

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

Insulation and continuity tester C.A 6526 for industrial maintenance

Test voltages from 50 V to 1000 V/200 GΩ
Operating mode: manual, Lock, duration and PI/DAR - Determination
Continuity test with 200 mA/20 mA with active protection without fuse

Technical specifications

Product type: Insulation tester

Test voltage: 50 V
100 V
250 V
500 V
1000 V

Reading type: Insulation resistance
Resistance
Frequency
Resistance
Voltage

Continuity testing: 0 - 100 Ω

: Manufacturer's standards (no certificate)

Reading range - resistance: 0 - 3999 Ω

Interfaces: Bluetooth® 2.0

: IP54

Dim: (L x W x H) 6 x 21.1 x 10.8 cm

Weight: 850 g

Display type: Digital (LCD)

Max. frequency: 399.9 Hz

Min. frequency: 15.3 Hz

Frequency range: 15.3 Hz - 399.9 Hz

Insulation resistance (max.): 200 GΩ

Voltage reading range (max.): 399.9 V

Voltage reading range (min.): 0.3 V

Reading category: CAT IV 600 V

Width: 21.1 cm

Height: 10.8 cm

Length: 6 cm

Documents & Downloads

Datasheet

Datasheet 1666182 Chauvin Arnoux C.A 6526 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 200 GΩ

User & Safety Instructions

User & Safety Instructions 1666182 Chauvin Arnoux C.A 6526 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 200 GΩ

Description

A periodic review of the insulation of industrial plant and equipment protects against interference and accidents. The preventive maintenance detects damage or premature aging of insulation by changing the insulation properties:
• Insulation measurement using a pre-programd duration
• Determination of PI and DAR for the determination of the insulation quality with little influence of the current temperature
• Comparison with earlier saved measurements
