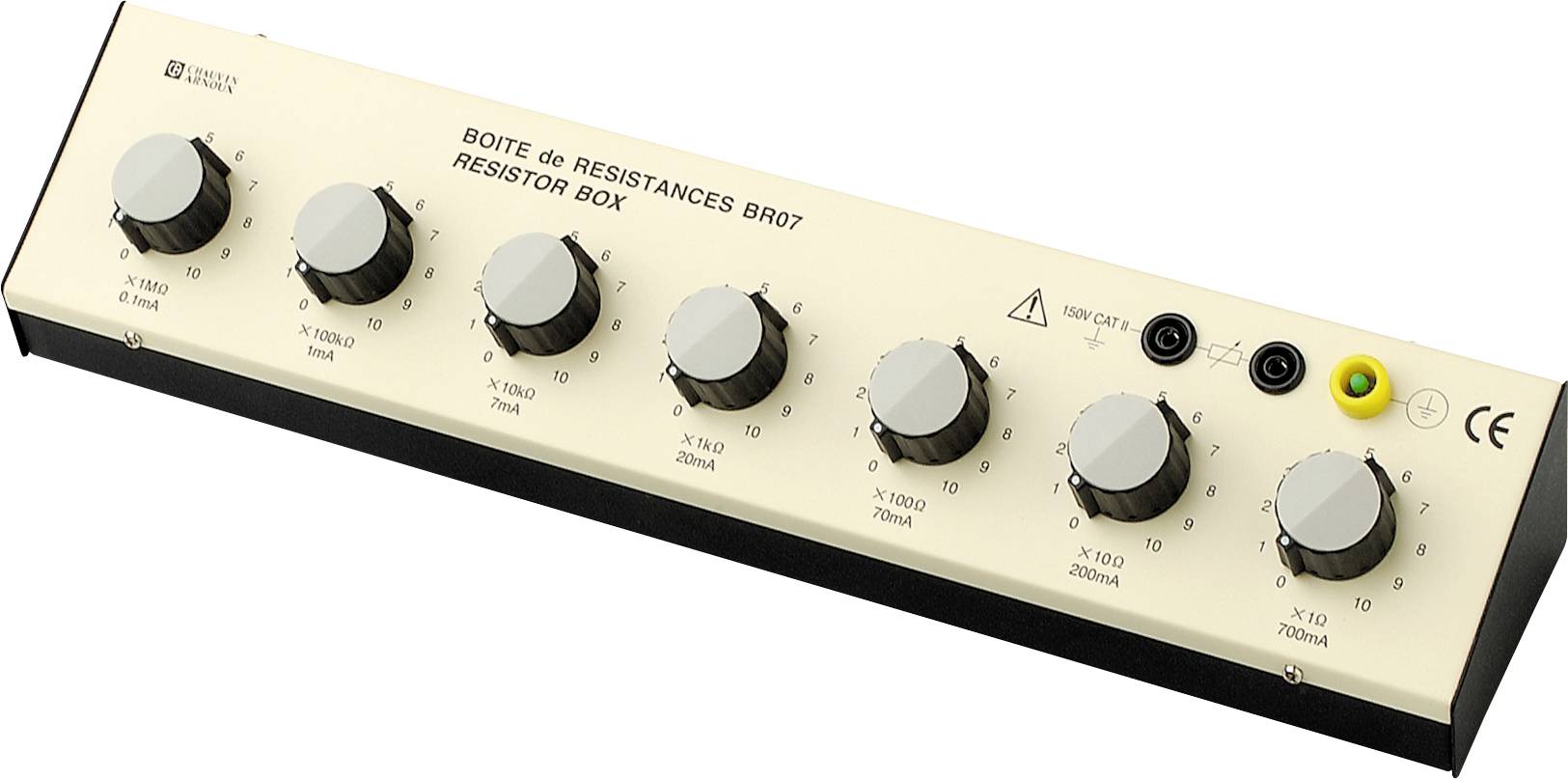

Chauvin Arnoux BR07 Decade box Resistance 1 %
- Decade of resistance for use in training, in laboratories, in research and development and in maintenance
- Desk case with 7 decades with 11-digit selector switch and Ø 4 mm safety jack output
- Decade 1: 1 Ω to 10 Ω - I max. 700 mA
- Decade 2: 10 Ω to 100 Ω - I max. 200 mA
- Decade 3: 100 Ω to 1 kΩ - I max. 70 mA
- Decade 4: 1 kΩ to 10 kΩ - I max. 20 mA
- Decade 5: 10 kΩ to 100 kΩ - I max. 7 mA
- Decade 6: 100 kΩ to 1 MΩ - I max. 1 mA
- Decade 7: 1 MΩ to 10 MΩ - I max. 0.1 mA
- • Accuracy 1%
Technical specifications
- Adjustment range
1 Ω to 10 MΩ
- Steps
1 Ω
- Dim
(L x W x H) 90 x 80 x 410 mm
- Weight
1400 g
- Height
410 mm
- Length
90 mm
- Width
80 mm
Manufacturer's standards (no certificate)
- Functions
Resistance
- Tolerance
1 %
- Plastic free packaging
Plastic-free packaging
- Product type
Decade box
Documents & Downloads
Datasheet
Datasheet 2793012 Chauvin Arnoux BR07 Decade box Resistance 1 %
User & Safety Instructions
User & Safety Instructions 2793012 Chauvin Arnoux BR07 Decade box Resistance 1 %
Warranty Terms
Warranty Terms 2793012 Chauvin Arnoux BR07 Decade box Resistance 1 %
Description
Resistance decade with 7 decades
• Resistance decades in the console case
• Output: Safety sockets with Ø 4 mm
• Front panel and metal case are connected to a safety earth bushing that is protected against polarity reversal.
This text is machine translated.
• Resistance decades in the console case
• Output: Safety sockets with Ø 4 mm
• Front panel and metal case are connected to a safety earth bushing that is protected against polarity reversal.
