Chauvin Arnoux C.A 1621 Calibrator Temperature
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

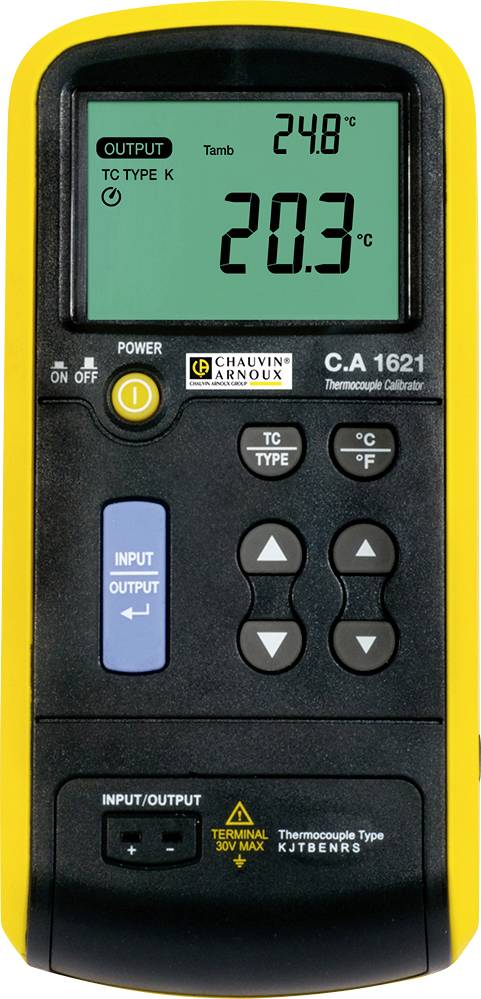

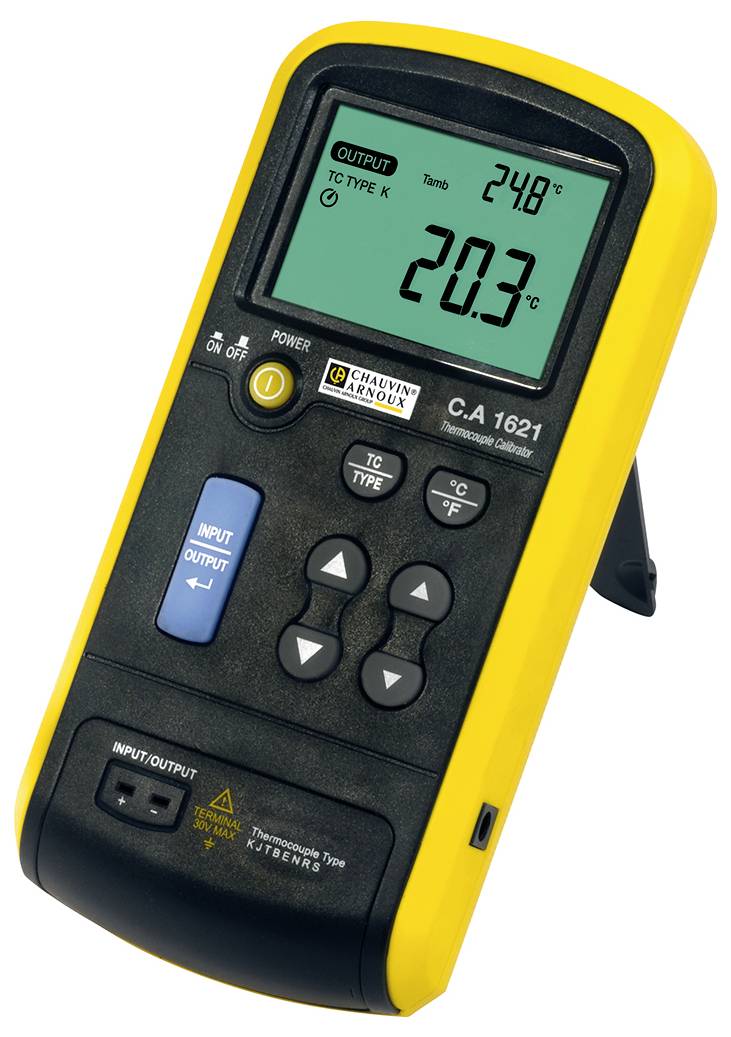

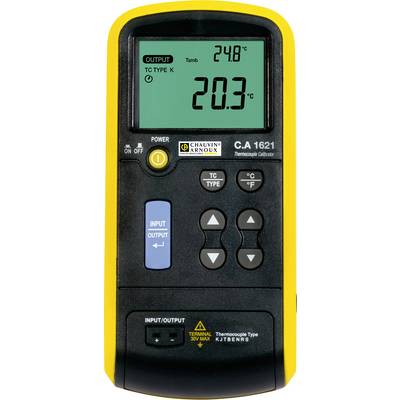

CA 1621 calibrator for thermocouple sensors
- Compact, easy-to-use calibrator for thermo-element sensors
- Measurement and simulation of up to 8 types of thermocouples
- Measurement and simulation of DC voltages in the mV range
- Mains independent by battery mode
- Handy, portable device: Optimum for on-site use
Technical specifications
- Unit of measurement: °C or °F.
- Resolution: 0.01 mV
- Accuracy: ±0.025% +2 digits
- Input / output range: -10 mV to + 100 mV.
Manufacturer's standards (no certificate)
- Product type
Calibrator
- Unit of measurement
Temperature
- Dim
(L x W x H) 205 x 97 x 45 mm
- Weight
472 g
- Width
97 mm
- Height
45 mm
- Length
205 mm
- Power supply
6 x AA battery (included)
Documents & Downloads
Datasheet
Datasheet 102358 Chauvin Arnoux C.A 1621 Calibrator Temperature
User & Safety Instructions
User & Safety Instructions 102358 Chauvin Arnoux C.A 1621 Calibrator Temperature
Description
The temperature calibrator for thermo-elements is compact and easy to use. It can measure and simulate up to 8 thermocouple types (J, K, T, E, R, S, B, N) and voltages in the mV range.
The battery operation allows you to use the device independent of the mains supply on the spot. If mains operation is mains-operated, an interruption-free use is possible.
This text is machine translated.
The battery operation allows you to use the device independent of the mains supply on the spot. If mains operation is mains-operated, an interruption-free use is possible.
This text is machine translated.
Scope of delivery
- 2 adapters for thermo elements
- 6 batteries 1.5 V type AAA
- 1 operating instructions in 5 languages
- 1 carrying case
