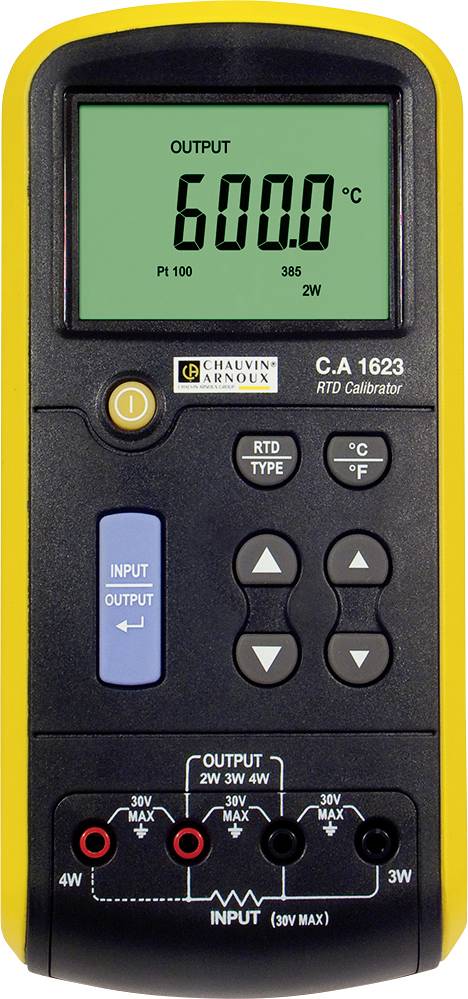

A resistance temperature detector (RTD) calibrator displays a temperature of 600.0 °C on the screen. Buttons for adjusting input and output values are visible.

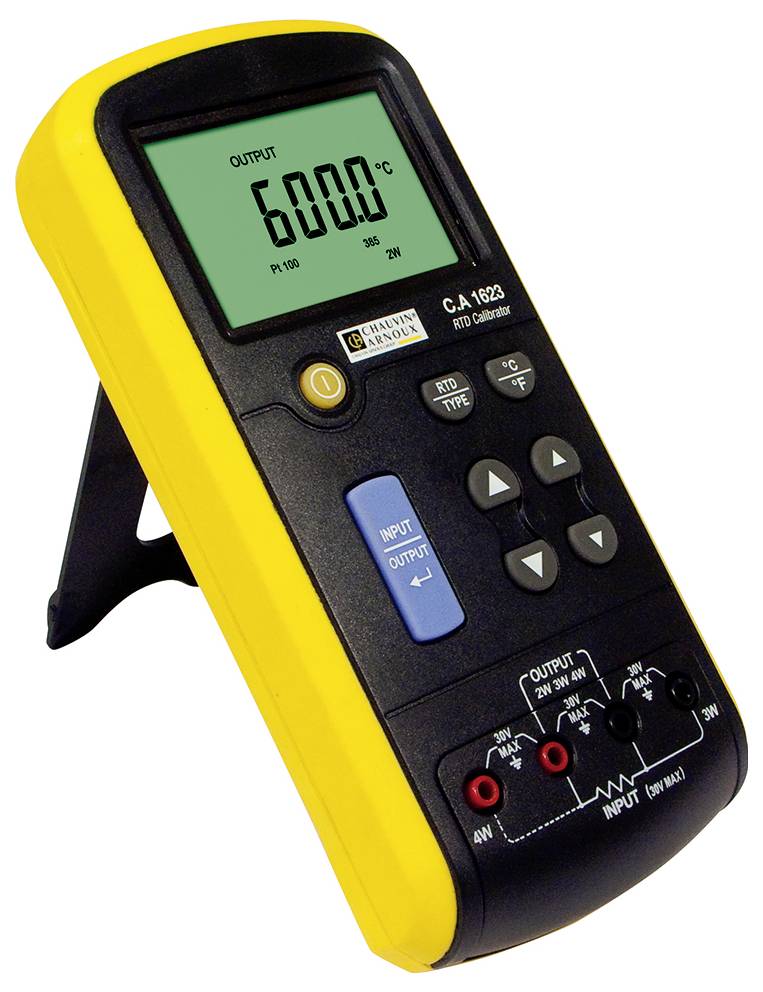

Handheld measuring device with a yellow casing for temperature calibration. Displays 'OUTPUT 600.0 °C' on the screen. Input and output control buttons are visible.

A digital temperature calibration device with a yellow border displays '60.00 °C' on its screen. Settings buttons are visible.

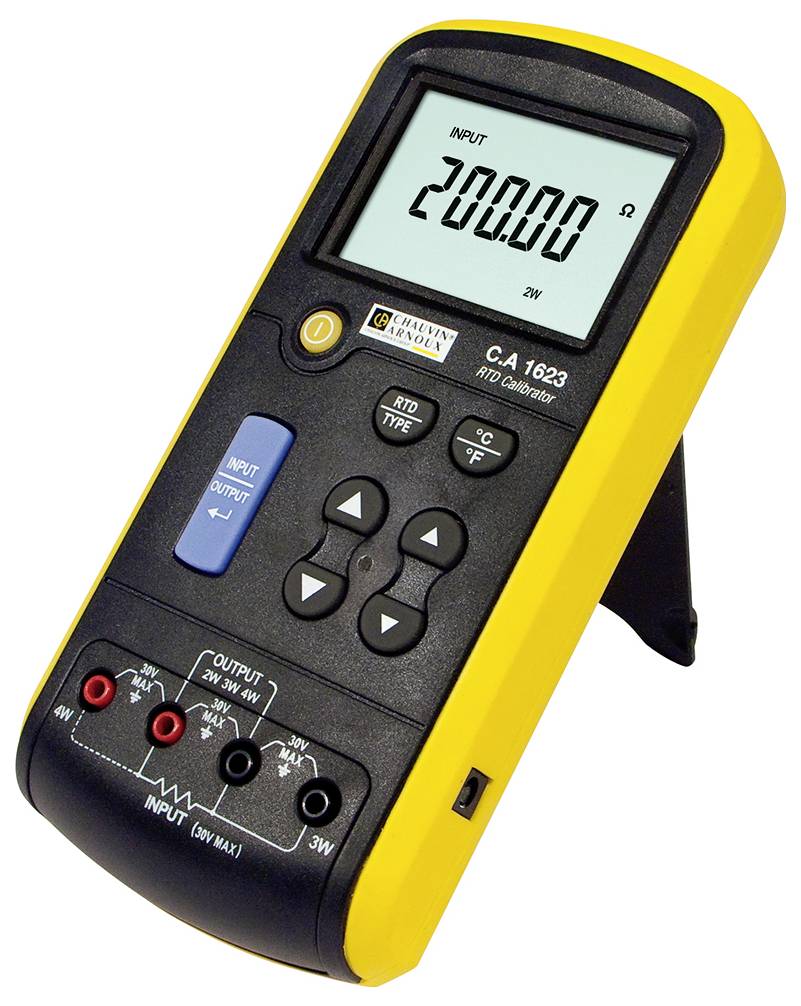

A yellow measuring device with a display shows '200.00 Ω'. It has buttons for control and sockets for input and output connections.

Handheld measuring device with digital display shows '200.00 Ω'. It has a yellow border, input and output buttons, and stands on a fold-out stand.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

C.A 1623 - Calibrator for resistance sensors

With the C.A 1623 up to 7 types of resistance sensors can be measured and simulated, as well as resistance values can be generated.
This text is machine translated.

Technical specifications

Unit of measurement: °C or °F.

: Manufacturer's standards (no certificate)

Product type: Calibrator

Unit of measurement: Resistance

Dim: (L x W x H) 205 x 97 x 45 mm

Weight: 472 g

Width: 97 mm

Height: 45 mm

Length: 205 mm

Power supply: 6 x AA battery (included)

Documents & Downloads

Datasheet

Datasheet 102359 Chauvin Arnoux C.A 1623 Calibrator Resistance

User & Safety Instructions

User & Safety Instructions 102359 Chauvin Arnoux C.A 1623 Calibrator Resistance

Description

The calibrator series C.A 1621, C.A 1623 and C.A 1631 serve to precisely measure and simulate all types of low-level measurement and process signals in industry. The simple use of these devices makes them particularly suitable for use on site and thanks to a large number of recognized sensors the devices fulfill the requirements of practically all applications. As battery-operated devices, they are independant of the mains and have long battery operating times. The devices can also be operated for as long as desired with the mains adapter.

This text is machine translated.

Features

Sensor type Pt10 385: Measurement range - 200 to + 800 °C.
Sensor type Pt50 385: Measurement range - 200 to + 800 °C.
Sensor type Pt100 385: Measurement range - 200 to + 800 °C.
Sensor type Pt200 385: Measurement range - 200 to + 250 °C, 250 to + 630 °C.
Sensor type Pt500 385: Measurement range - 200 to + 500 °C, +500 to + 630 °C.
Sensor type Pt1000 385: Measurement range - 200 to + 100 °C, +100 to + 630 °C.
Sensor type Pt100 JIS: Measurement range +200 to + 630 °C.
Range:
0.00 Ω to 400.00 Ω; Measuring accuracy 4 conductors ±Ω 0.1; Simulation accuracy 0.1 / 0.15; Permissible excitation: 0.1 to 0.5 / 0.5 to 3.0
400.0 Ω to 150.0 Ω; Measuring accuracy 4 conductors ±Ω 0.5; Simulation accuracy 0.5; Permissible excitation: 0.05 to 0.8
1500.0 Ω to 3200.0 Ω; Measuring accuracy 4 conductors ±Ω 1/2; Simulation accuracy 1; Permissible excitation: 0.05 to 0.4
