Chauvin Arnoux C.A 6011 Continuity tester 200 Ω
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
CA 6011 Continuity tester Alone
- Simple and handy device
- Developed for daily continuity testing of protection, earthing, and potential equalization

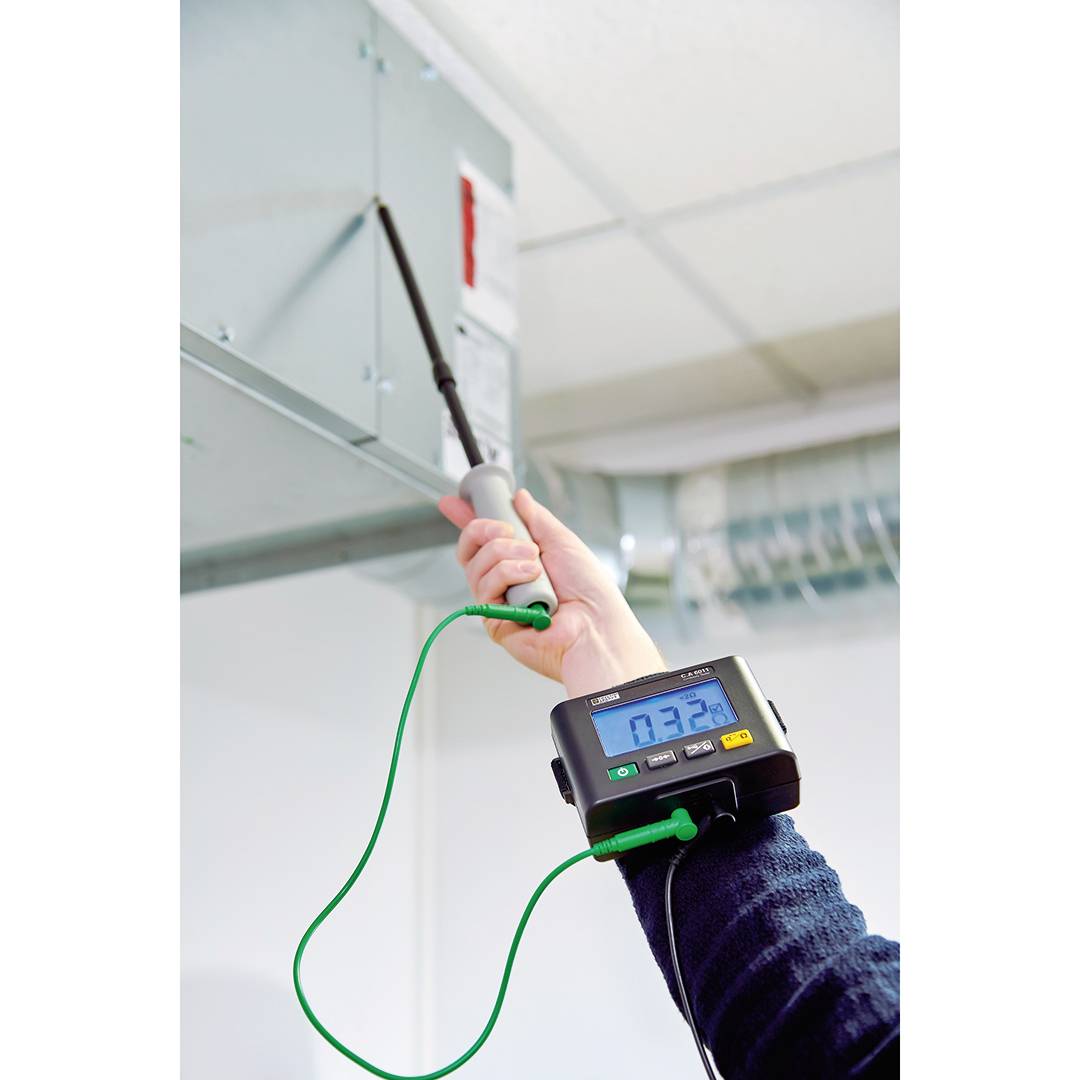

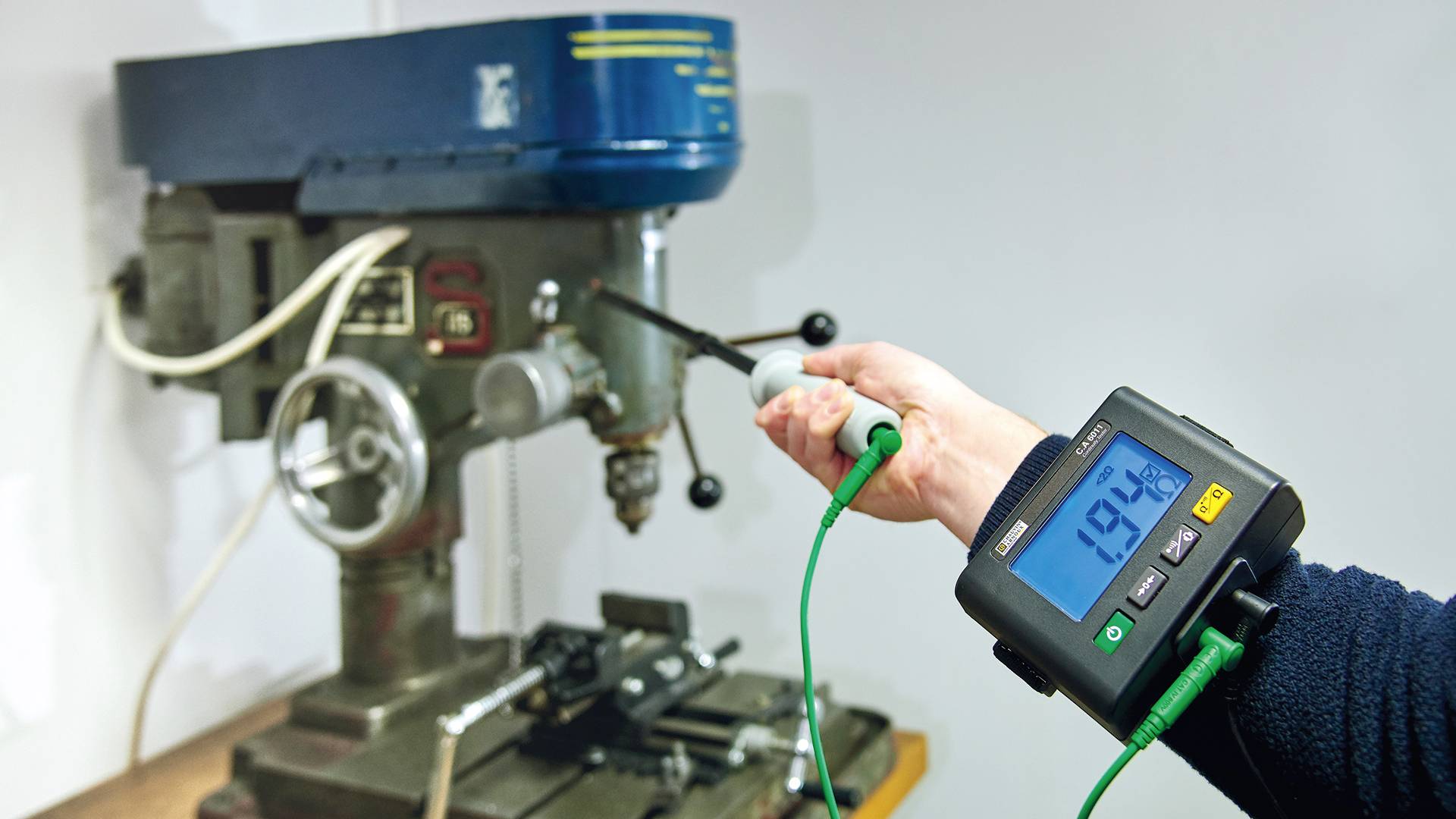

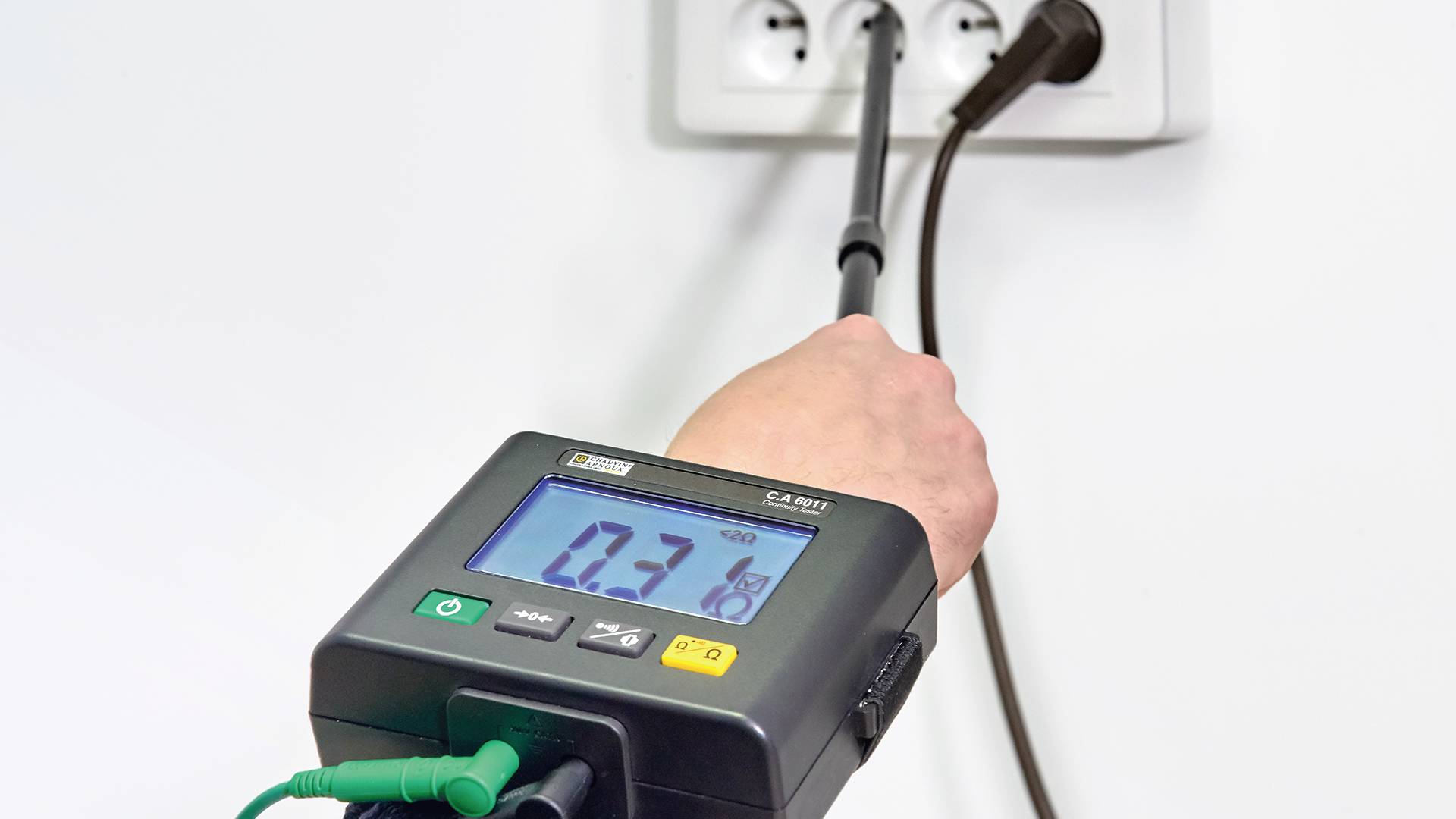

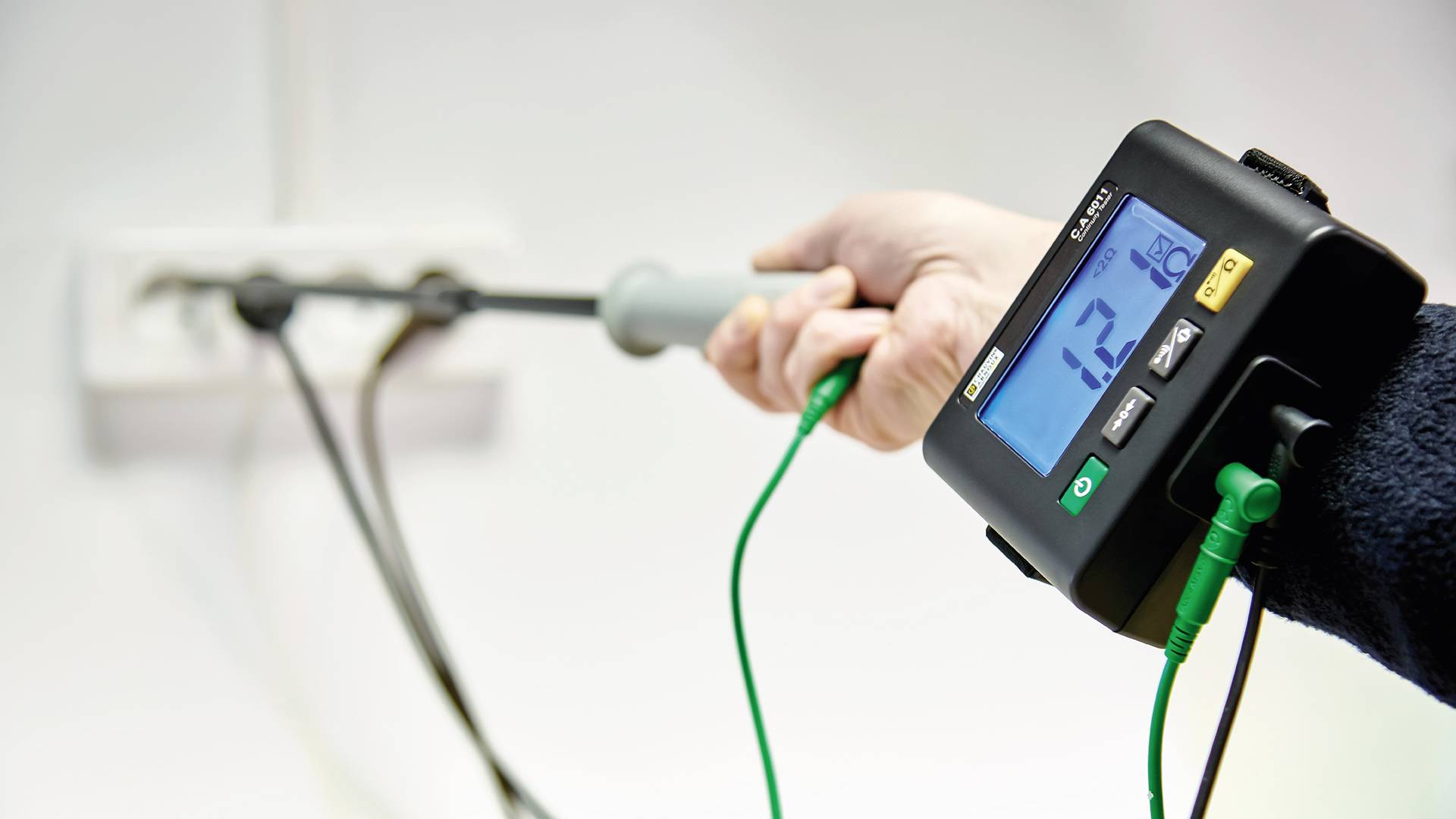

- Highly comfortable to use and operate thanks to wrist strap
- Clear good/bad display with alarms by signal tone or vibration
- Measurements comply with the standard IEC / EN 61557-4
Technical specifications
- Product type
Continuity tester
- Reading type
Resistance
Resistance
- Continuity testing
20 Ω
Manufacturer's standards (no certificate)
- Reading range - resistance
1.0 Ω to 200.0 Ω
IP40
- Dim
(L x W x H) 13.5 x 22.5 x 18.5 cm
- Weight
350 g
- Display type
Digital
Acoustic
Vibration
- Insulation resistance (max.)
200 Ω
- Reading category
CAT IV 300 V
- Width
22.5 cm
- Height
18.5 cm
- Length
13.5 cm
Documents & Downloads
Datasheet
Datasheet 2199876 Chauvin Arnoux C.A 6011 Continuity tester 200 Ω
User & Safety Instructions
User & Safety Instructions 2199876 Chauvin Arnoux C.A 6011 Continuity tester 200 Ω
Description
The continuity tester C.A 6011 has been specially developed for the regular protective earth inspection of electrical devices, equipment and systems in accordance with the standards IEC/EN 60364, NF C 15-100, VDE 100 and the legislation.
These systematic and recurring controls account for more than 80% of all control procedures, so particular attention must be paid not to make them too annoying.
The tester with reel C.A 6011 fulfills this requirement thanks to its ergonomics and functionality and ensures user-friendliness, high measuring capacity and safety for the customer:

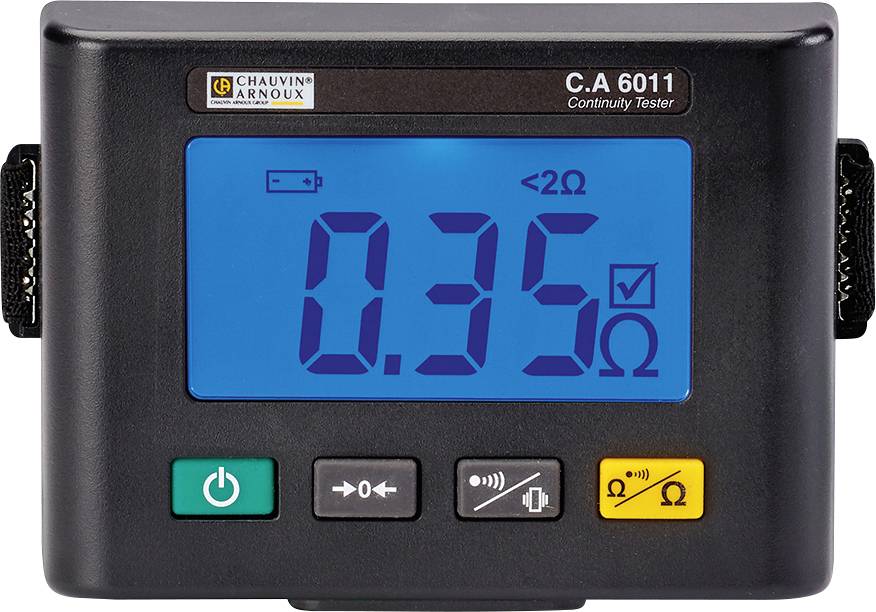

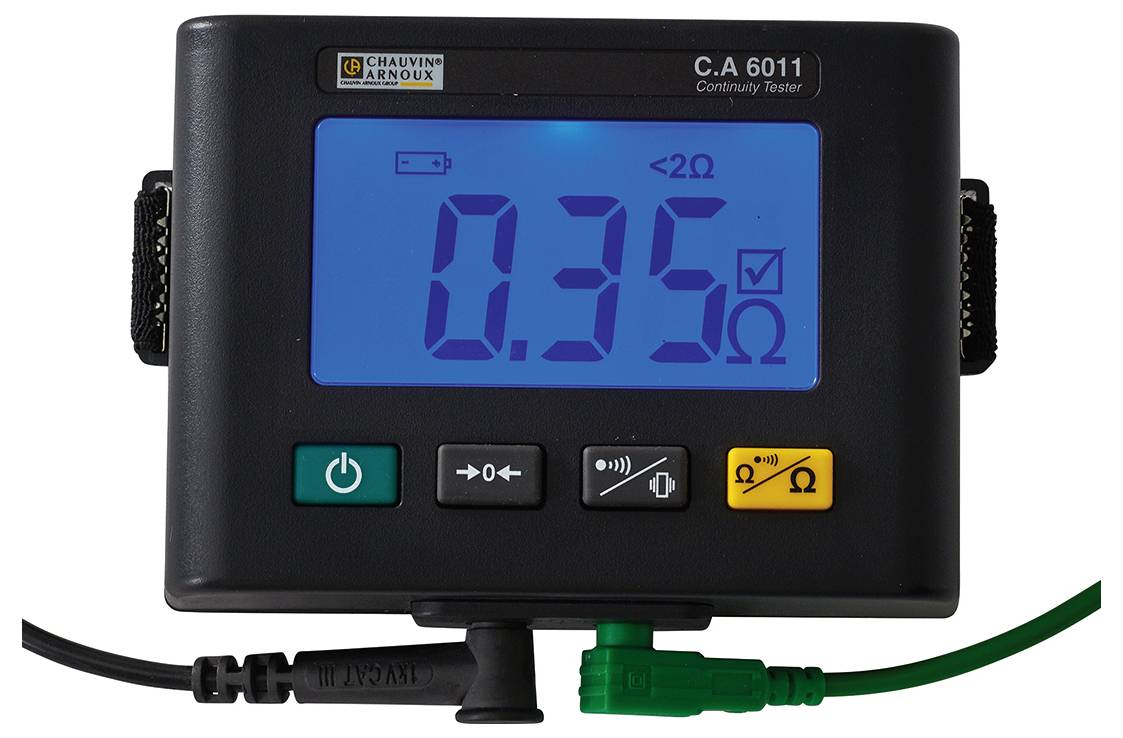

• Large illuminated display (the largest on the market)

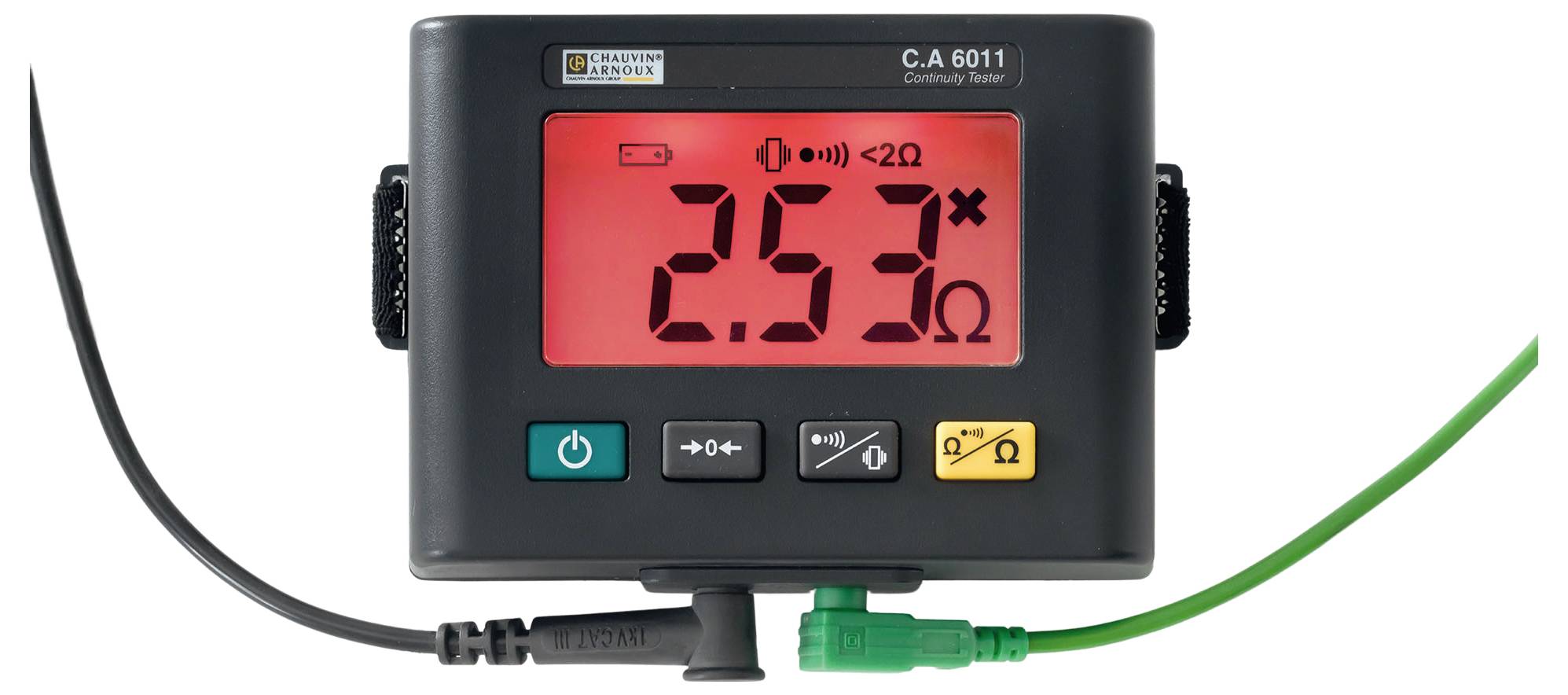

• Clear and intuitive indicators: Blue/red display, simple symbols, beep
• Completely new functionality: The vibration function does not disturb the peace of your customers and at the same time relieves your neck.
• You can choose whether you want to use the measuring housing together or separately from the reel.
• 4 buttons on the front panel provide direct access to all functions.
• High operating time: Up to 30,000 measurements!
• The shoulder strap and belt are used to distribute the weight optimally to the body.
This text is machine translated.
These systematic and recurring controls account for more than 80% of all control procedures, so particular attention must be paid not to make them too annoying.
The tester with reel C.A 6011 fulfills this requirement thanks to its ergonomics and functionality and ensures user-friendliness, high measuring capacity and safety for the customer:
• Large illuminated display (the largest on the market)
• Clear and intuitive indicators: Blue/red display, simple symbols, beep
• Completely new functionality: The vibration function does not disturb the peace of your customers and at the same time relieves your neck.
• You can choose whether you want to use the measuring housing together or separately from the reel.
• 4 buttons on the front panel provide direct access to all functions.
• High operating time: Up to 30,000 measurements!
• The shoulder strap and belt are used to distribute the weight optimally to the body.
This text is machine translated.
Scope of delivery
- 1 elastic hand strap for attaching the housing to wrist
- 4 batteries 1.5 V LR06
Hints
The continuity tester is supplied with hand strap and 4 batteries. Other accessories not included in the delivery. Please order separately if necessary. The figures show some of the equipment that is not supplied with the kit.
