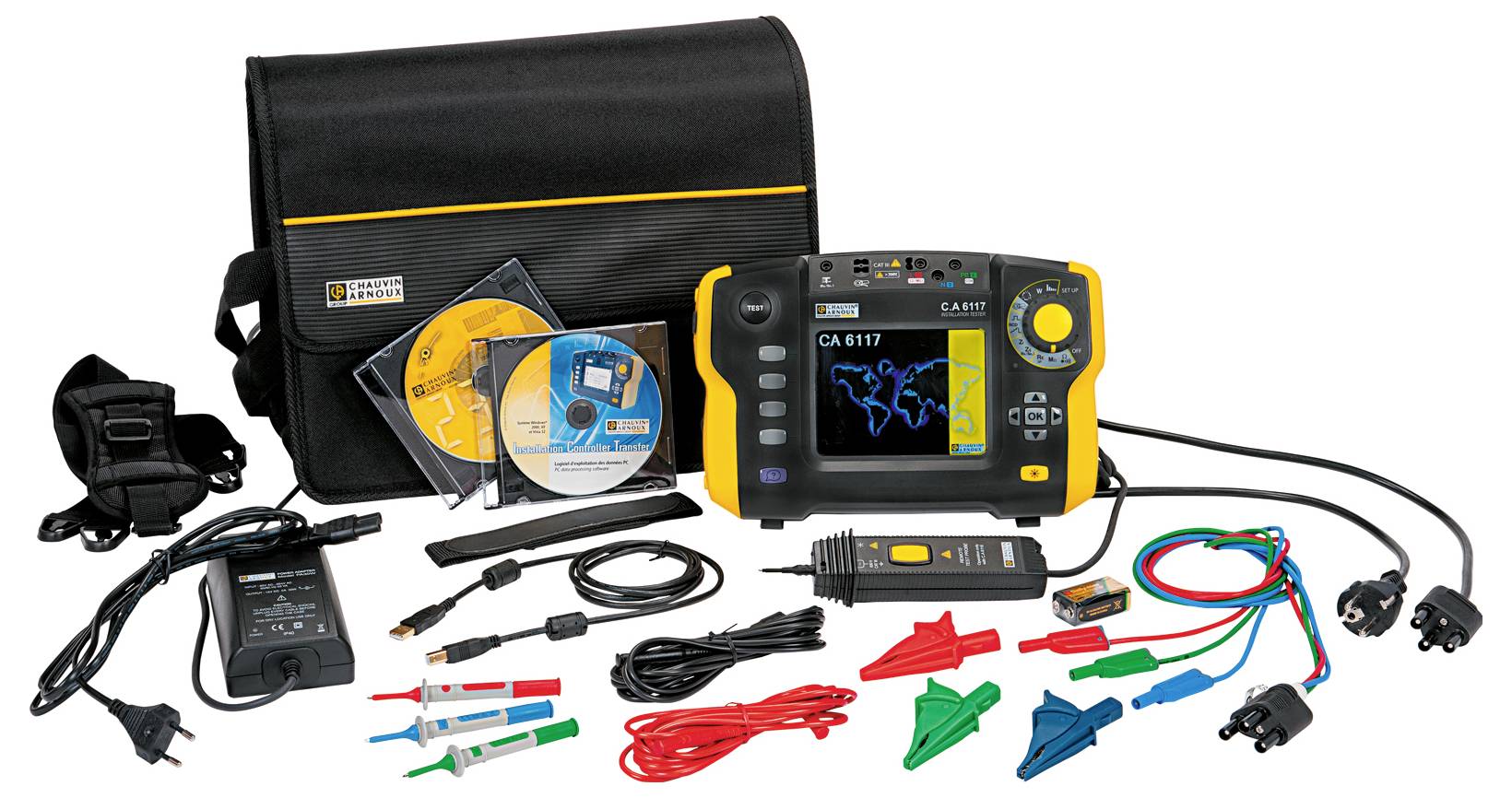

Portable multi-functional measurement device with accessories, cables, and carrying case. Used for measuring electrical parameters.

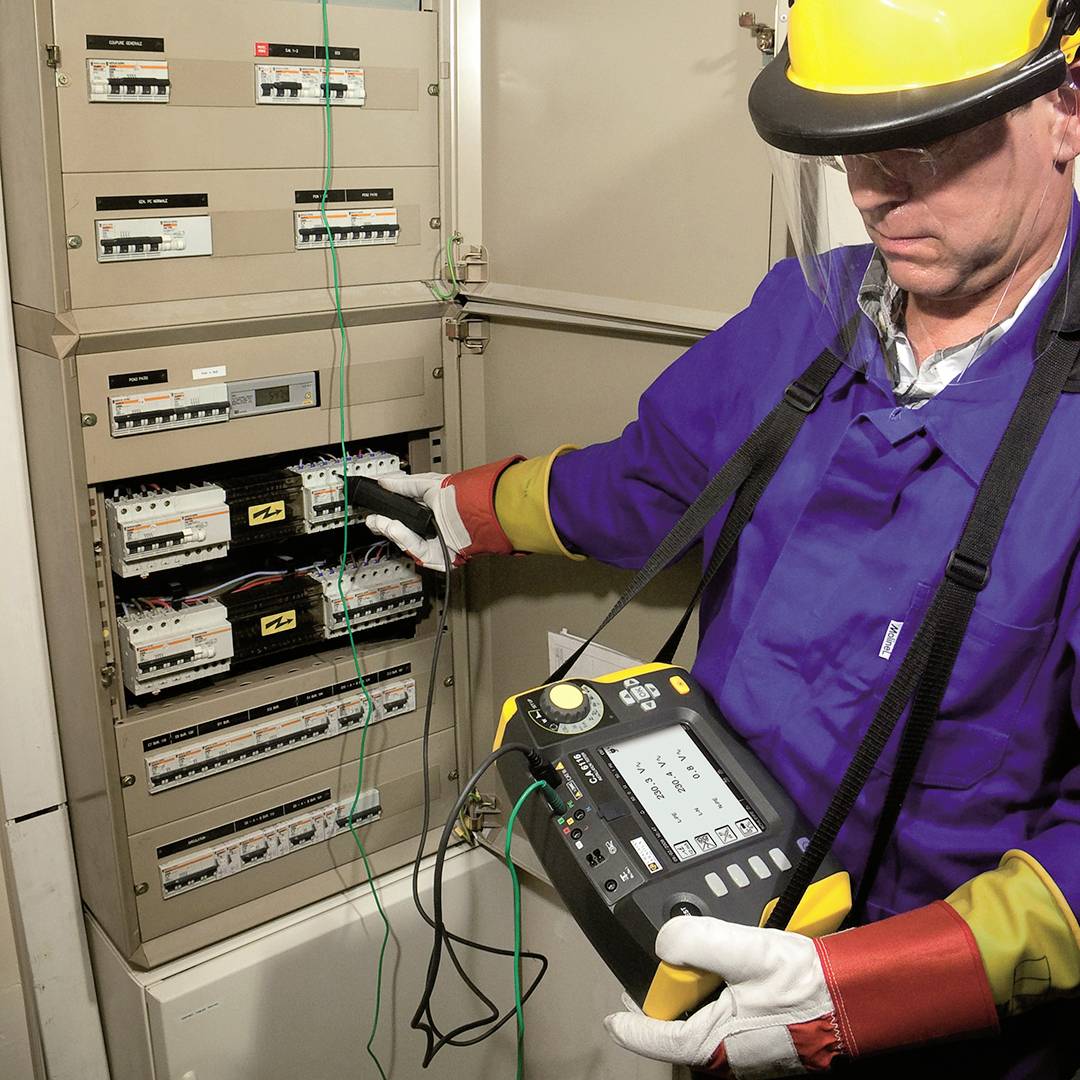

An electrician wearing a safety helmet and gloves checks an electrical control panel with a testing device in a technical room.

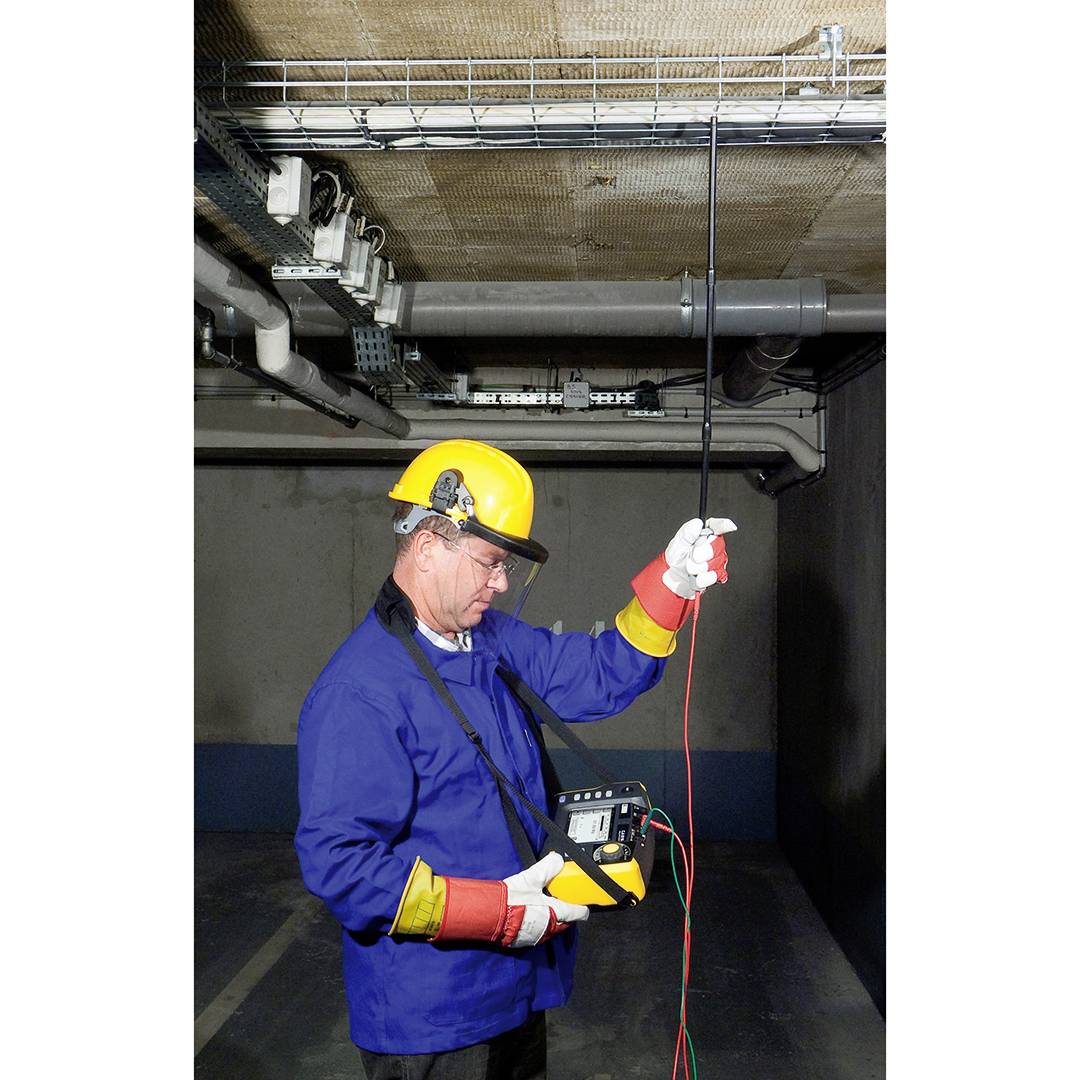

A technician in protective clothing is measuring the electrical cables on the ceiling in a basement area.

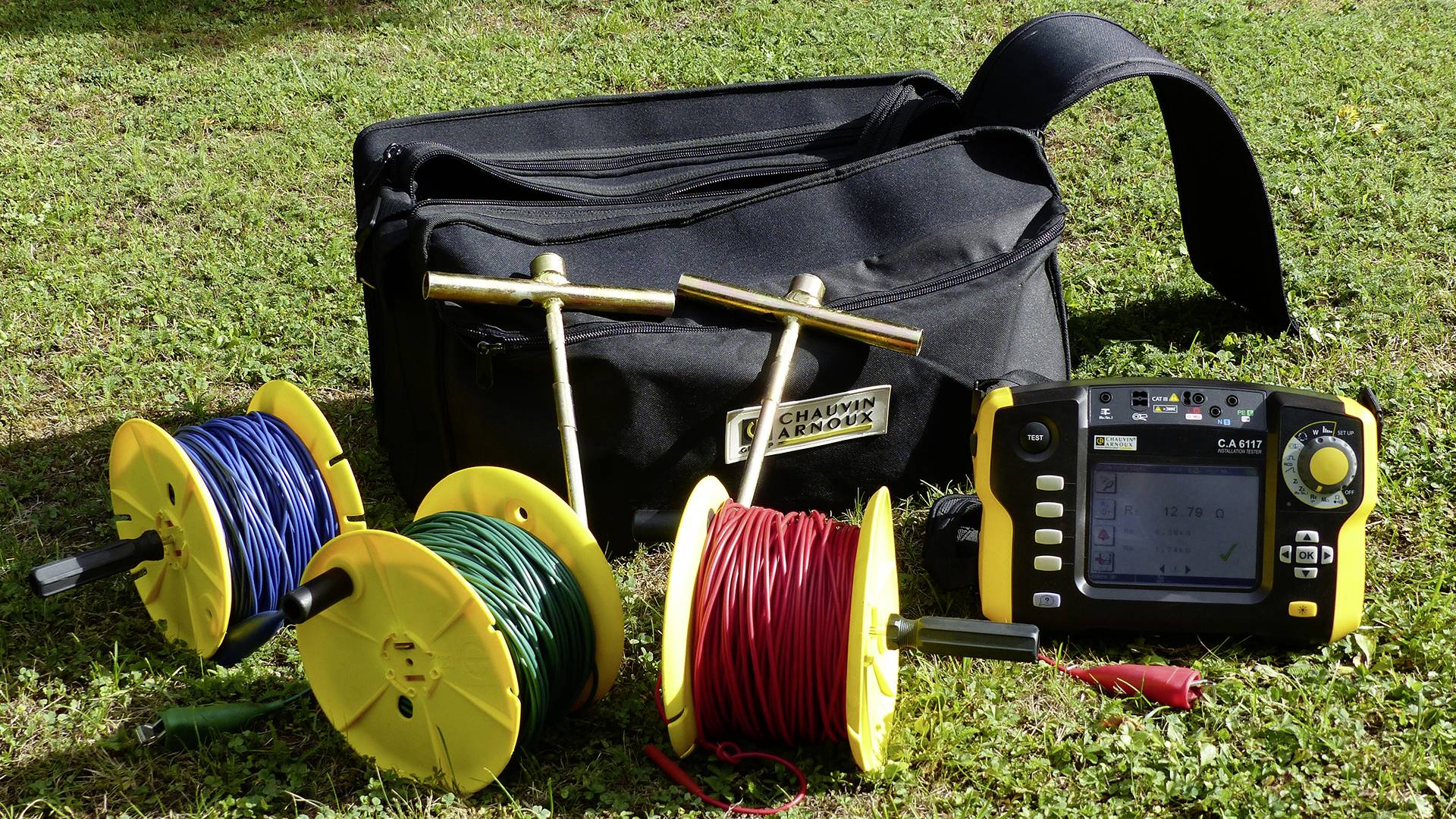

A black toolbox, three cable reels with colourful cables, and an electronic measuring device are lying on a meadow.

1/5

Datasheet (PDF)

Dispatches on Wed, 14 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 2,004.20 / piece)

€ 2,004.20

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

C.A 6116N electrical tester + free MN77 current clamp attachment

17-in-1
600 V CAT III
Complies with DIN VDE 0100-600 / DIN VDE 0105-100 /DIN VDE 0413, EN 61557, IEC 60364-6, ÖVE/ÖNORM E 8001, and NIN/NIV test standards
Suitable for TT, TN and IT earthing arrangements
RCD and FI type AC/A/B testing
Built-in fuse chart
Lithium-ion rechargeable battery

Technical specifications

Continuity/impedance test: nominal / reading range / resolution: > 200 MA / 39.99 Ω / 0.01 Ω / ± (1.5 % of the displayed value + 2 digits)
12 MA / 39.99 Ω and 399.9 Ω / 0.01 and 0.1 Ω /± (1.5 % of the displayed value + 5 digits) with acoustic signal
Reading range / resolution / accuracy: 4 kΩ / 1 Ω / ± (1.5 % of the displayed value + 5 digits)
40 KΩ - 400 kΩ / 10 Ω - 100 Ω / ± (1.5 % of the displayed value + 2 digits)
IR test (Megger) at 50 / 100 / 250 / 500 / 1000 V DC
Reading range / resolution / accuracy: 0.01 MΩ to 2 GΩ / 10 kΩ to 1 MΩ / ± (5% of the displayed value + 3 digits)
Short circuit current: ≤ 3mA
Earth test: three-pole reading: 0.50 Ω to 40 Ω / 0.01 Ω / ± (2% of the displayed value + 10 digits)
40 Ω to 15 kΩ / 0.1 Ω to 1 Ω / ± (2% of the displayed value + 2 digits)
Reading range / resolution / accuracy: 15 kΩ to 40 kΩ / 10 Ω / ± (10 % of the displayed value + 2 digits)
In addition: impedance reading of RH & RS auxiliary probes (up to 40 kΩ)
Complies with SEV 3569 standard
Selective earth testing (1 probe): 0.20 Ω to 39.99 Ω - 40 Ω to 399.9 Ω / 0.01 Ω - 0.1 Ω / ± (10 % of the displayed value +10 digits) Isel via clamp
Loop impedance test (ZS (L-PE) and ZI (L-N and L-L)) - voltage load earth testing (1 probe): earth test during operation
System operating voltage / frequency: 90 to 500 V / 15.8 to 17.5 Hz - 45 to 65 Hz
High test current (FI/RCD trip) ZS (L-PE) & ZI (L-N and L-L)
Reading range / resolution/ accuracy: Max. test current: 7.5 A
(0.050 ) 0.100 Ω to 0.5 Ω / 0.001 Ω / ± (10 % of the displayed value + 20 digits)
0.5 Ω to 3.999 Ω / 0.001 Ω / ± (5% of the displayed value + 20 digits)
3.999 to 39.99 Ω / 0.01 Ω / ± (5% of the displayed value + 2 digits)
39.99 Ω to 399.99 Ω / 0.1 Ω / ± (5% of the displayed value + 2 digits)
No trip (ZS (L-PE) only): test current 6 mA - 9 mA - 12 mA (selectable)
0.20 Ω to 0.99 Ω / 0.01 Ω / ± (15 % of the displayed value + 10 digits)
1.00 to 1.99 Ω / 0.01 Ω / ± (15 % of the displayed value + 3 digits)
2.00 to 39.99 Ω / 0.01 Ω / ± (10 % of the displayed value + 3 digits)
40.00 Ω to 399.9 Ω / 0.1 Ω / ± (5% of the displayed value + 2 digits)
400 to 3 999 Ω / 1 Ω / ± (5% of the displayed value + 2 digits)
Short circuit current (Ik) calcualtion (PFC (Zi)), I Sc PSCC (Zi): fault current and short circuit current: 0.1 A to 20 kA
Fuse chart? Yes
Voltage drop ΔU% (Zi): -40% to 40%
Additional readings: ohmic impedance (Zs) and capacitve impedance (Zi)
RCD/FI type B test: system operating voltage / frequency: 90 V to 275 V / 15.8 Hz to 17.5 Hz, and 45 Hz to 65 Hz
IΔn: Ramp / pulse 2 x IΔn pulse 4 x IΔn: 10/30/ 100/300/500 mA; 10/30/100 mA pulse 4 IΔn; Duration: 150 ms at 4 x IΔn, and 300 ms at 2 x IΔn respectively
RCD ramp test: 0.2 x IΔn to 2.2 x IΔn
Trip test: 2 x IΔn: IΔN ≤ 200 mA: 2.2 x 2 x IΔn, IΔN > 200 mA: 1.1 x 2 x IΔn
Trip test: 4 x IΔn: IΔN ≤ 100 mA: 2.2 x 4 IΔN
Additional readings: current via C177/C177A current clamp: 5 mA to 199.9 (C177A)
Current via MN77 current clamp: 0 to 550 V AC/DC / DC at 15.8 Hz to 500 Hz
Voltage: 0 to 550 V AC/DC / DC and 15.8 to 500 Hz
Frequency range: 10 Hz - 500 Hz
Line conductor phase sequence: 20 V to 500 V AC
Active power: single-phase 0 kW to 110 kW - three-phase 0 to 330 kW, simultaneous display voltage and current wave form
Harmonics: current and voltage / up to 50th order / THD-F / THD-R.

Product type: Electrical tester set

: Manufacturer's standards (no certificate)

Reading category: CAT III 600 V
CAT VI 300 V

Interfaces: USB

Dim: (W x H x D) 280 x 190 x 128 mm

Weight: 2.2 kg

: IP53

Reading range (VDE): Earth leakage resistance
Insulation resistance
Leakage current
Earth leakage current
Touch voltage
Voltage

DIN standard: DIN IEC 60364
DIN EN 61557

Display type: Digital (LCD)

Accuracy: 1.5 %

Width: 280 mm

Height: 190 mm

Test procedure: automated

Voltage supply: Battery

Memory (space): 1000

Memory: Yes

Type: C.A 6116N

VDE standard: 0100
0105
0413

Depth: 128 mm

Power supply (details): Li-ion battery 10.8 V/5.8 Ah

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1270859 Chauvin Arnoux C.A 6116N Electrical tester set VDE standard 0100, 0105, 0413

User & Safety Instructions

User & Safety Instructions 1270859 Chauvin Arnoux C.A 6116N Electrical tester set VDE standard 0100, 0105, 0413

Description

Multifunction tester. Versatile multifunction tester that makes sure your wiring job is safe.

Features

Complies with DIN VDE 0100-600 / DIN VDE 0105-100 /DIN VDE 0413, EN 61557, IEC 60364-6, ÖVE/ÖNORM E 8001, and NIN/NIV test standards
Easy to set up and use, guidelines for each test function including graphs
Suitable for TT, TN and IT earthing arrangements
RCD and FI type AC, A testing
Comes with a fuse chart enabling quick assessment of the readings
Li-ion rechargeable battery for portable use
Reads voltage, current (via current clamp), wattage. wave forms and harmonics
Voltage drop test to determine appropriate cable cross-sections
Loop impedance test, 1 mΩ resolution
Built-in memory
17 functions, 1 device.
