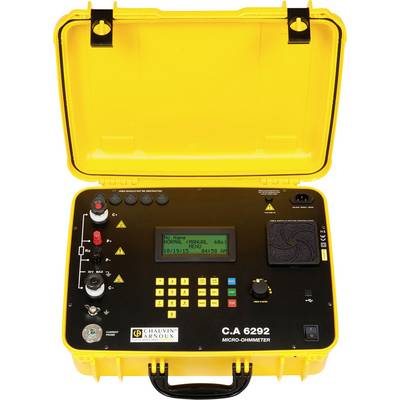

Chauvin Arnoux C.A 6292 Micro ohmmeter

The C.A6292 has a site use case with clear connection terminal marked, so that the connection of the measuring lines is quick and easy and connection errors can be avoided. The measurements are set via a rotary button on the housing or with the PC via the USB connection. The measuring results appear immediately on the perfectly readable and illuminated LCD display. With the help of the c.a6292 are the measurements to make absolutely sure, both for the operator, as well as for the material. With the BSG-method is a two-sided earthing of the test object is possible, so that any hazards caused by electromagnetic induction are excluded. In this method, the optional clamp transformer MR6292 can be used, the currents up to 50 A measures.

Exact measurement values:
With the Lord Kelvin notified four-conductor measurement, measurement errors due to line or contact resistances will be avoided. As a result of which the measurements low resistors with the c.a6292 high accuracy with a resolution of up to 0.1 μΩ and with an accuracy of approx. 1% of the result.

The possibilities of the c.a6292 are versatile:
· Examination of the contact resistance in high-voltage/high-voltage stations
· Examination of the contact quality of cut-off devices, switches, relays, etc…
· Resistance test on busbars, pipes, coils, etc…
· Continuity test on rails, wheel hubs, weld seams
· Testing of surfaces and metal coatings
· Testing of separation facilities
