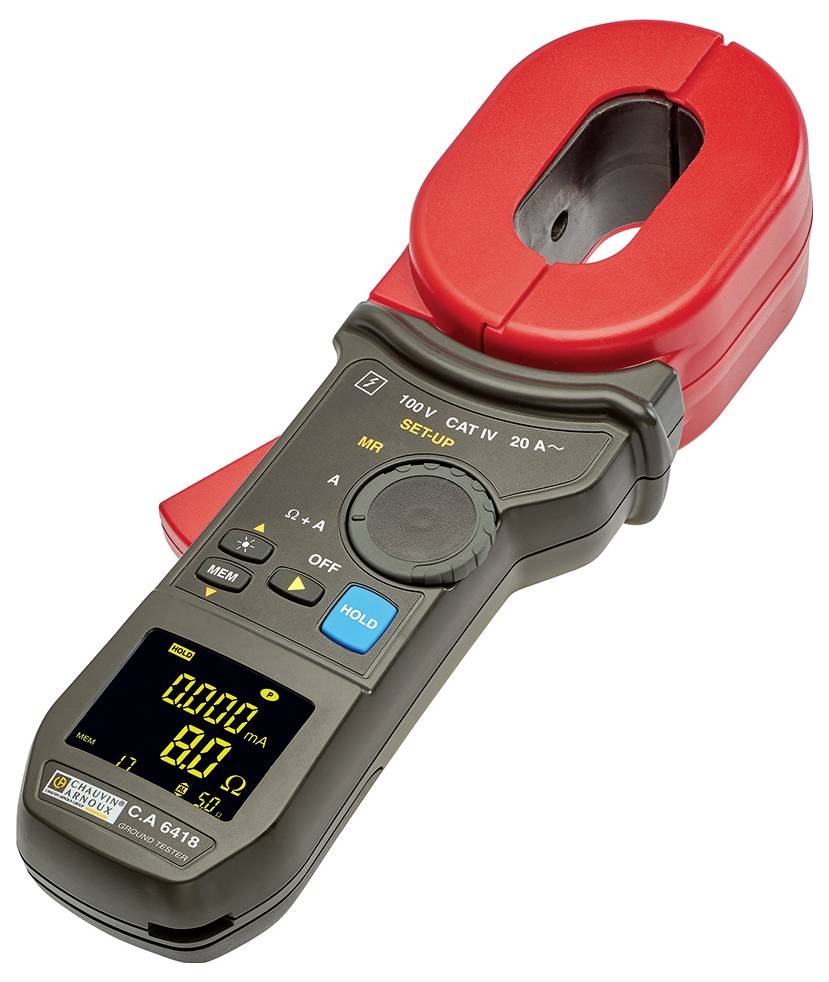

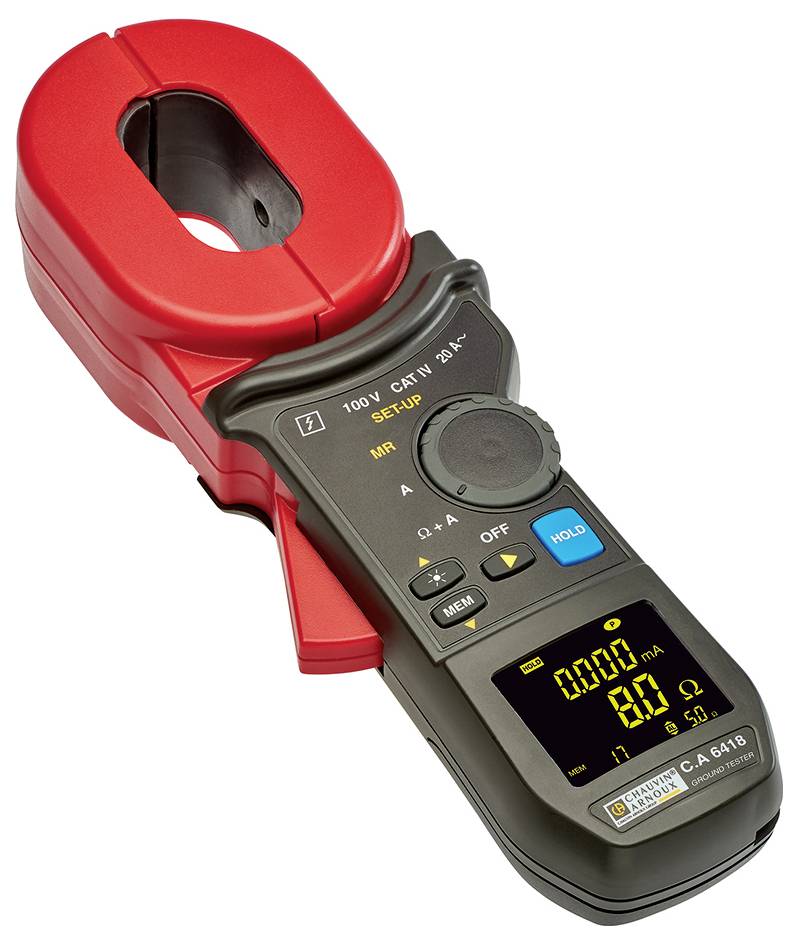

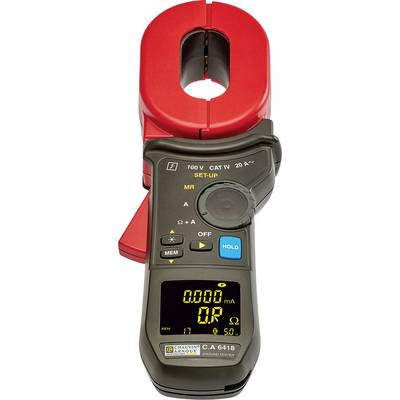

Chauvin Arnoux C.A 6418 Earth ground meter
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 1,869.75 / piece)
€ 1,869.75
plus VAT.
Only 1 Piece(s) available
Highlights & Details
C.A 6418 earth testing pliers
- Measurement of the earthing loop resistance, simultaneous display of Ω and A.OLED display ensures perfect readability, even in strong sunlightDesign with long measuring head specifically for bands (Ø 32 mm / bands 30 x 40 mm / 20 x 55 mm)Storage of 300 measurementsClamp adjustment possible without returning to the manufacturer with optional calibration loop CL1
Technical specifications
- Product type
Earth ground meter
Manufacturer's standards (no certificate)
- Reading range - resistance
0.01 Ω - 1200 Ω
- Data storage
300
IP40
- Dim
(L x W x H) 5.6 x 30 x 10.6 cm
- Weight
1.2 kg
- Display
Digital
- Weight, information
incl. batteries
- Content
1 pc(s)
- Reading category
CAT III 150 V
CAT IV
- Measuring type
Clamp
- Width
30 cm
- Height
10.6 cm
- Length
5.6 cm
- Type
C.A 6418
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1925309 Chauvin Arnoux C.A 6418 Earth ground meter
User & Safety Instructions
User & Safety Instructions 1925309 Chauvin Arnoux C.A 6418 Earth ground meter
Description
The earth test clamp C.A 6418 is best suitable for measuring ground loop resistances at bands due to its long measuring head.
The containment capacity is:
- for cables: Up to 32 mm Ø
- for belts / rails: 30 mm x 40 mm or 20 mm x 50 mm
Like the C.A 6416 and C.A 6417, the C.A 6418 is also equipped with an excellent readable OLED display. The clamp can measure and display A and Ω simultaneously and has adjustable alarms for these two sizes.
In addition, the pliers have an auto-hold function as well as a memory of up to 300 measured values with time stamp.
This text is machine translated.
The containment capacity is:
- for cables: Up to 32 mm Ø
- for belts / rails: 30 mm x 40 mm or 20 mm x 50 mm
Like the C.A 6416 and C.A 6417, the C.A 6418 is also equipped with an excellent readable OLED display. The clamp can measure and display A and Ω simultaneously and has adjustable alarms for these two sizes.
In addition, the pliers have an auto-hold function as well as a memory of up to 300 measured values with time stamp.
This text is machine translated.
Scope of delivery
- 1 transport bag.
- 4 batteries 1.5 V
- 1 carrying strap
- 1 CD Rom with operating instructions
- 1 quick instructions
- 1 Safety data sheet multilingual
- 1 test certificate
