Chauvin Arnoux C.A 6505 Insulation tester 500 V, 1000 V, 2500 V, 5000 V 10 TΩ
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

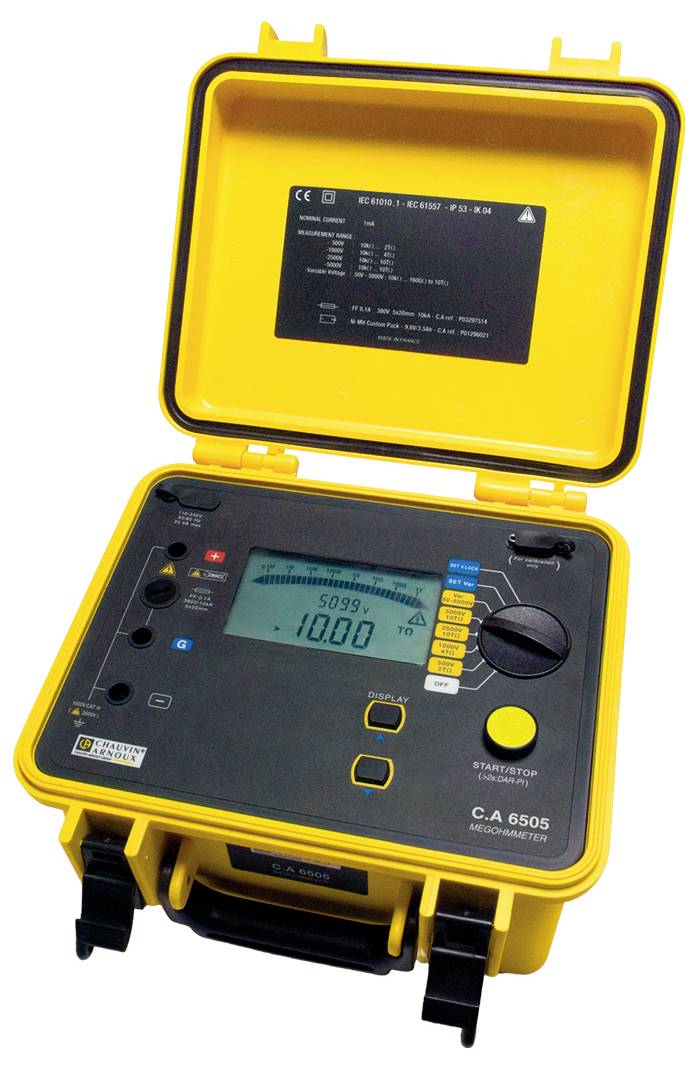

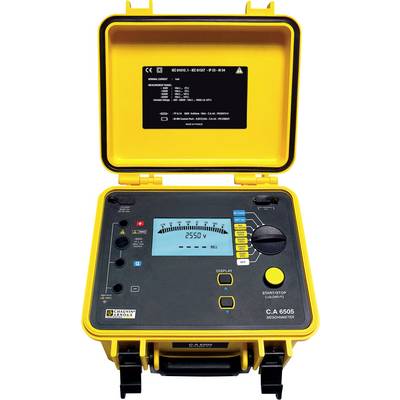

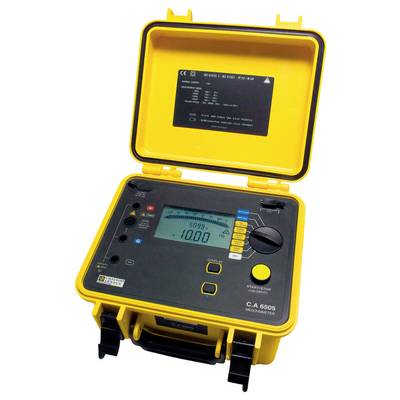

C.A 6505 Insulation tester 5kV
- Robust insulation meter for demanding applications for measuring very high insulation resistance up to 10 TΩ with test voltages up to 5 kVLarge illuminated LCD display with digital display and analogueue bar graphAutomatic calculation of insulation quality parameters (DAR, PI)With 4 fixed and an adjustable test voltage from 40 V to 5100 V.Adjustable test duration for improved assessment of insulation at longer applied test voltages
Technical specifications
- Adjustable test voltage: 40 V to 5100 V in steps of 10 V or 100 V.
- Product type
Insulation tester
- Test voltage
500 V
1000 V
2500 V
5000 V
- Reading type
Insulation resistance
Manufacturer's standards (no certificate)
- Reading range - resistance
10 kΩ - 10 TΩ
IP53
- Power supply (details)
85–256 V/50–60 Hz
- Dim
(L x W x H) 25 x 18 x 27 cm
- Weight
4.3 kg
- Display type
Digital (LCD)
- Insulation resistance (max.)
10 TΩ
- Reading category
CAT III 1000 V
- Width
18 cm
- Height
27 cm
- Length
25 cm
Documents & Downloads
Datasheet
Datasheet 2621435 Chauvin Arnoux C.A 6505 Insulation tester 500 V, 1000 V, 2500 V, 5000 V 10 TΩ
User & Safety Instructions
User & Safety Instructions 2621435 Chauvin Arnoux C.A 6505 Insulation tester 500 V, 1000 V, 2500 V, 5000 V 10 TΩ
Description
DescriptionWith the MegOhmMeter C.A 6505 for 5 kV measurements can be made easily for the control and maintenance of industrial plants.The C.A 6505 is supplied in a robust construction site housing and enables very precise, expert insulation measurements.Once connected, measurements of the voltage, frequency, capacity and current of the systems or test objects are immediately possible.Technical data and functions:Test voltage: Specified 500/1000/2500/5000 V DC or variable 40 V to 5100 V DCMeasurement range: 10 kΩ to 10 TΩProgrammable measurement durationCalculation OF THE ACTUAL and PI values for insulation qualityMeasurement of voltage, capacity and residual currentLCD display with bar graphPower supply via NiMH rechargeable batteryComplies with IEC 61557Protection class: IP53INSTALLATION CATEGORY: IEC 61010 1000 V CATDimensions 270 x 250 x 180 mm; weight 4.3 kg
