Buy Chauvin Arnoux C.A 6541 Insulation tester 50 V, 1000 V 4 TΩ

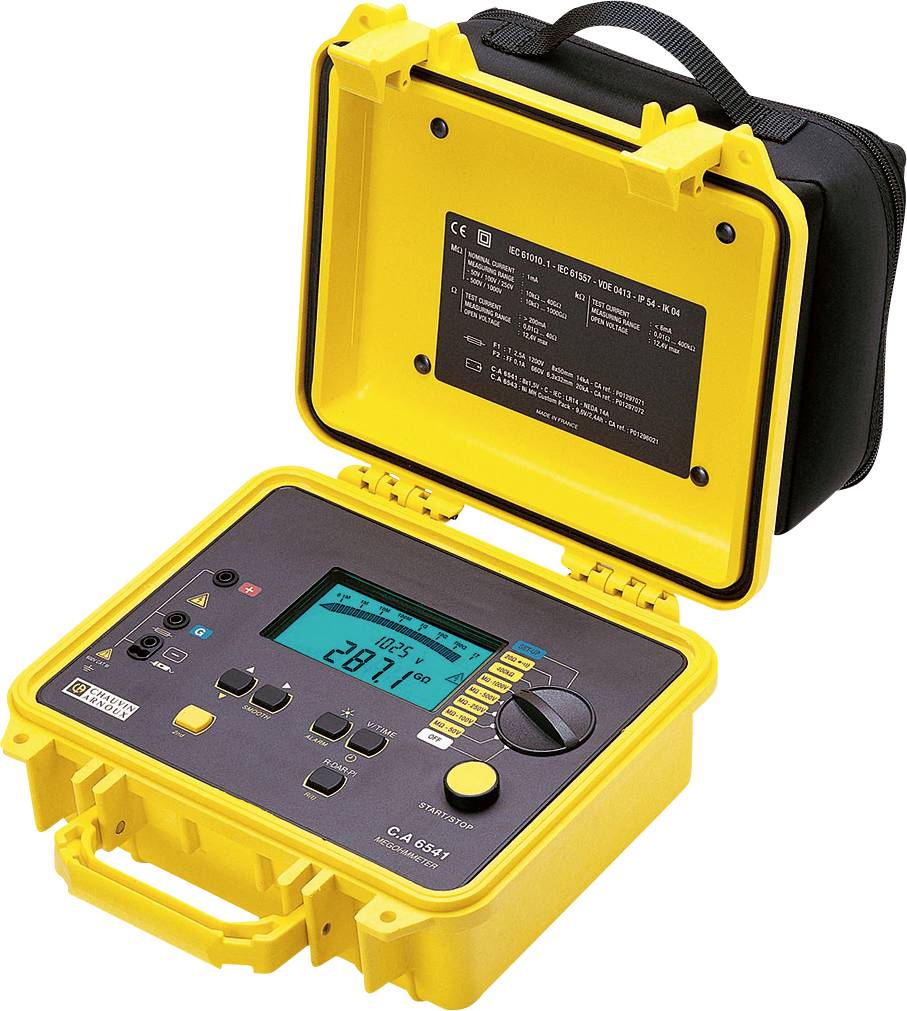

A yellow portable measuring device with an open lid, displaying '2871 Ω' on its screen. It has multiple buttons and a rotary dial for operation.

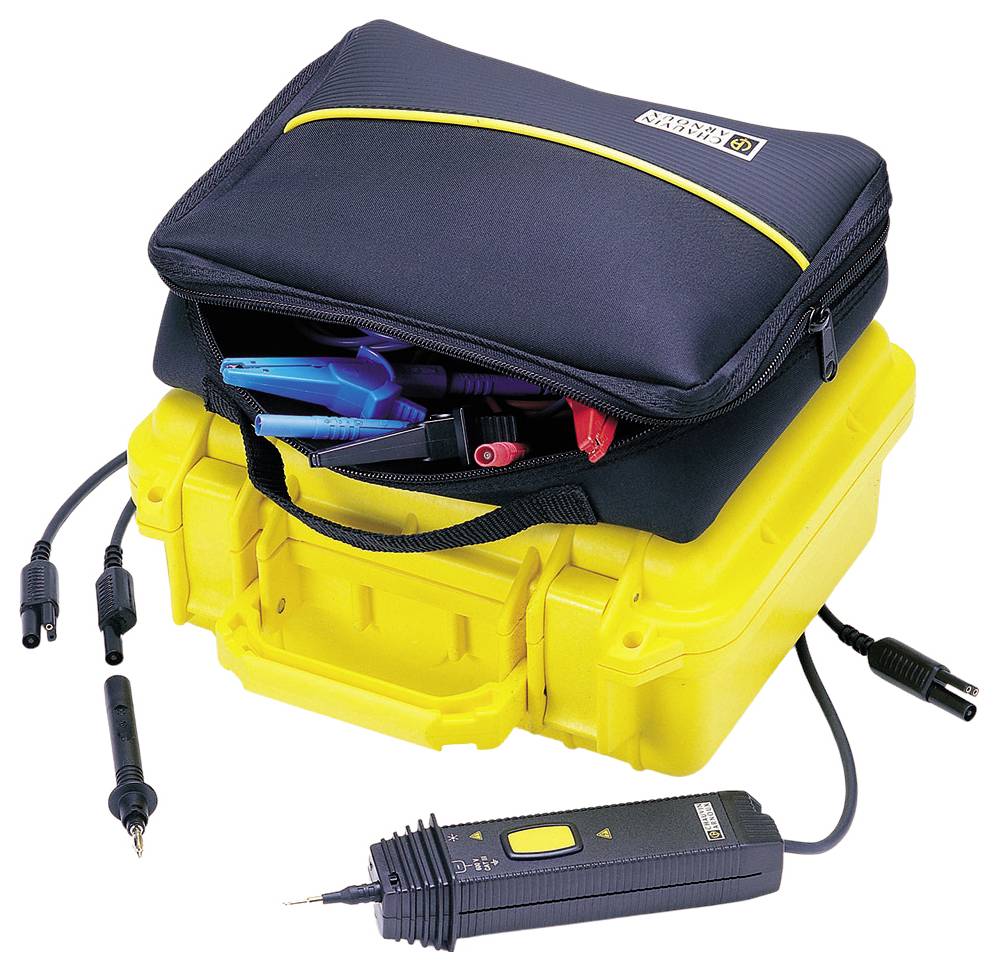

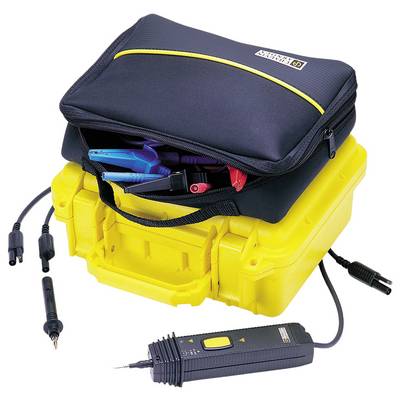

Yellow portable case with an open black pouch showing blue and red clips. Beside it, a diagnostic device with connected cables.

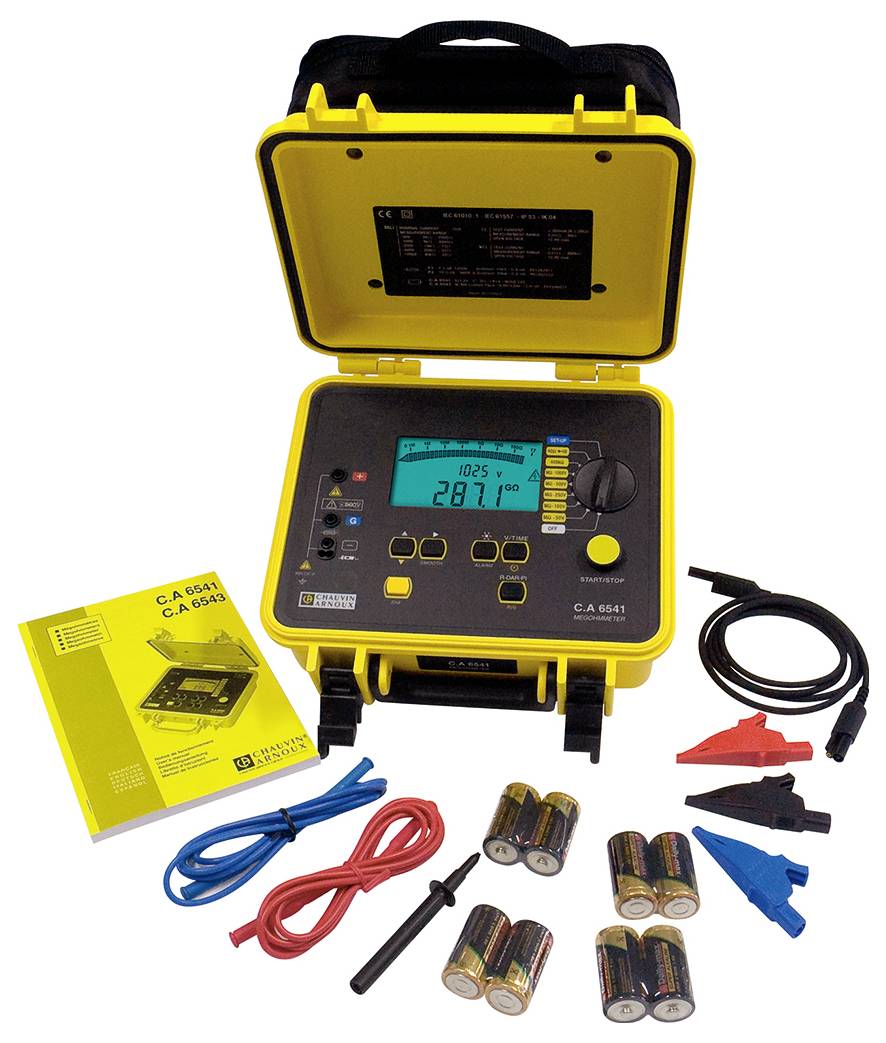

A digital multi-function measuring device in a yellow case with accessories such as cables, adapters and batteries, along with a user manual.

1/3

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Megohm-Meter C.A6541

CAT III 600V
Insulation test up to 4 TΩ
Micro-processor control

Technical specifications

Measuring range: 2 kΩ to 4 TΩ

Product type: Insulation tester

Test voltage: 50 V
1000 V

Reading type: Insulation resistance

Continuity testing: 0.01 Ω - 40 Ω

: Manufacturer's standards (no certificate)

Reading range - resistance: 0.01 Ω - 400 kΩ

Power supply (details): 8 size C batteries

Dim: (L x W x H) 24 x 18.5 x 11 cm

Weight: 3.4 kg

Display type: Digital (LCD)

Insulation resistance (max.): 4 TΩ

Reading category: CAT III 600 V

Width: 18.5 cm

Height: 11 cm

Length: 24 cm

Documents & Downloads

Datasheet

Datasheet 102397 Chauvin Arnoux C.A 6541 Insulation tester 50 V, 1000 V 4 TΩ

User & Safety Instructions

User & Safety Instructions 102397 Chauvin Arnoux C.A 6541 Insulation tester 50 V, 1000 V 4 TΩ

Conformity certificate

Conformity certificate 102397 Chauvin Arnoux C.A 6541 Insulation tester 50 V, 1000 V 4 TΩ

Description

The gelandetauglichem Megohmmeter C.A6541with compact, housing offer you the best quality with regard to insulation testing. From a microprocessor-controlled devices have very advanced functions for insulation measurement (with 50 V to 1000 V up to 4 TΩ) and for the measurement of AC/DC voltage, check the continuity at 200 mA, for the measurement of resistance and capacitance.

This text is machine translated.
