Buy Chauvin Arnoux C.A 755 Multifunction tester CAT III 600 V LCD

Digital multimeter with two probes, one black, one red, showing 0.76 on an orange-illuminated screen.

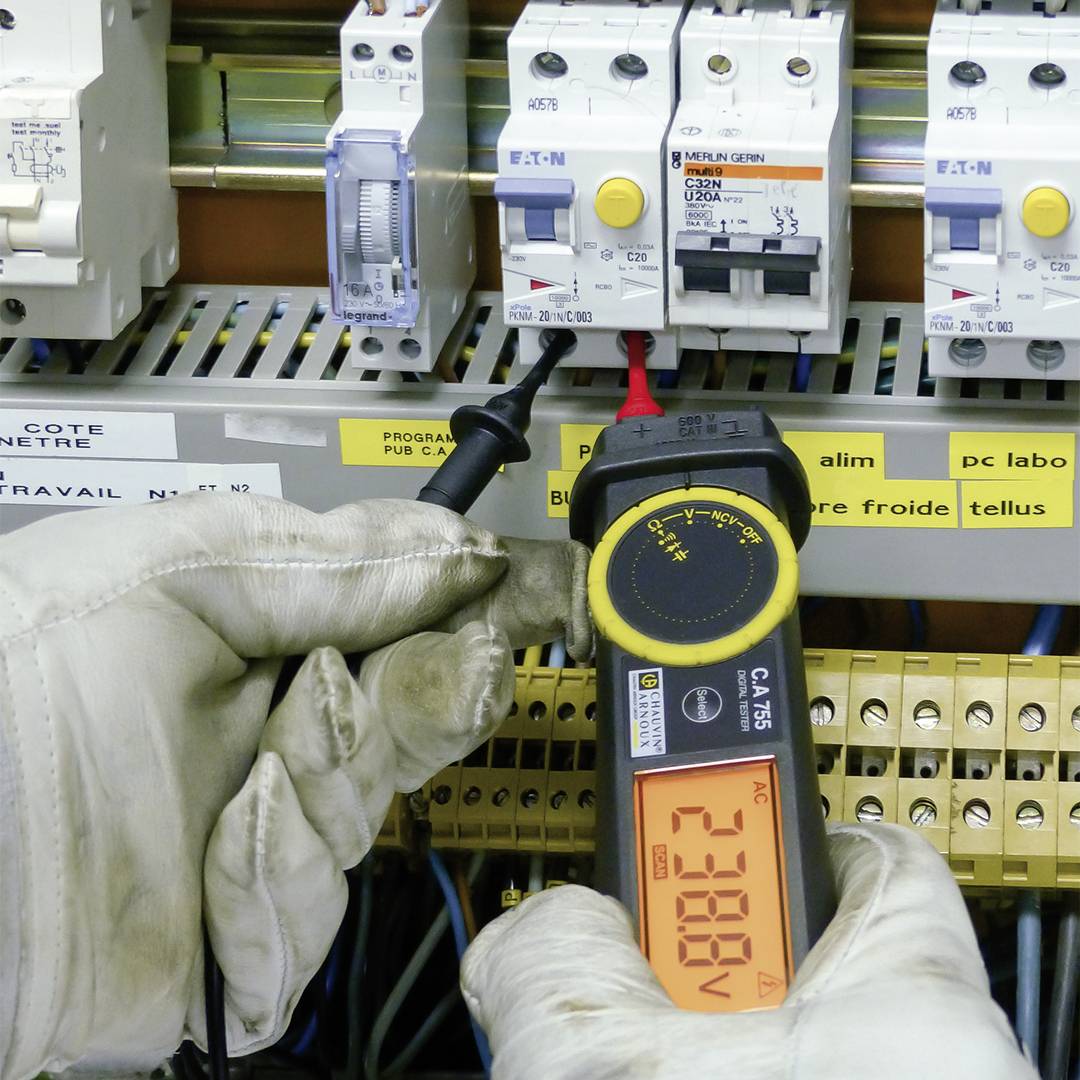

'An electrician uses a multimeter to measure voltage in an electrical control cabinet. The display shows 238.8 volts.'

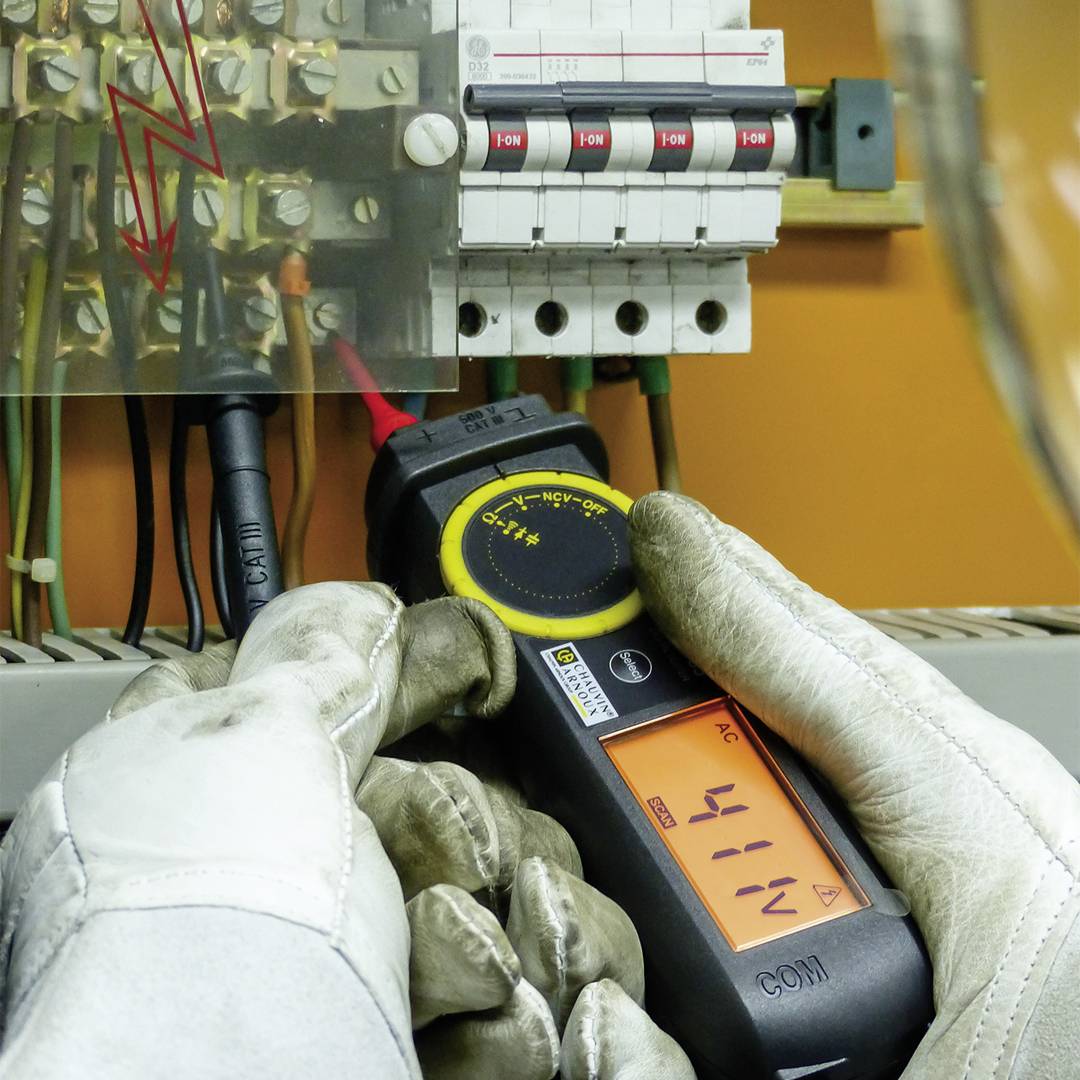

A person is checking the electrical voltage in a control cabinet using a voltmeter; displayed voltage: 411 V.

A technician wearing white protective gloves is measuring the voltage in an electrical control cabinet with a digital multimeter, which displays 408 volts.

1/4

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 113.44 / piece)

€ 113.44

plus VAT.

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Voltage tester, like a multimeter behave!

Automatic AC and DC-detection
Automatic detection of resistors, diodes and capacities
Automatic range selection
Display of dangerously high voltages
Detachable probe tips
Large illuminated display with 3000 digits

Technical specifications

Measuring range: 0.3 Ω - 30 MΩ
Measuring Capacity: 400 pF - 30 mF
DC resistance: 10MΩ
AC resistance: 10MΩ
Display counts: 3000.

Product type: Multifunction tester

Reading type: Continuity
Phase
Resistance testing

Display: LCD

V AC reading range: 100 up to 1000 V

V DC reading range: 3 up to 1000 V

Reading category: CAT III 600 V

: IP54

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 45 x 180 x 52 mm

Weight: 200 g

V AC reading range (max.): 1000 V

V AC reading range (min.): 100 mV

Voltage DC reading range (max.): 1000 V

Voltage reading range DC (min.): 3 mV

Width: 180 mm

Height: 52 mm

Length: 45 mm

Type: C.A 755

Documents & Downloads

Datasheet

Datasheet 1593623 Chauvin Arnoux C.A 755 Multifunction tester CAT III 600 V LCD

User & Safety Instructions

User & Safety Instructions 1593623 Chauvin Arnoux C.A 755 Multifunction tester CAT III 600 V LCD

Description

The C.A 755 is a lightweight, fits well in the hand lying, user-friendly device in protection class IP54. It is protected against dust and fall from the height of up to 2m. On his illuminated 3000 digit display the measured values can be read directly.

The voltage tester C.A 755 is the ideal device for electricians, heating and air-conditioning technicians, mechanics, maintenance, etc… It allows you to work in complete safety:
- Double insulation
- Protected against voltage peaks up to 6 kV
Protected up to 1000 V for continuity tests, resistance and capacity measurements
Contact-free voltage detection
Display of dangerously high voltages
- Automatic shut-off after 10 minutes, do not use

With 600 V CAT III is the C.A 755 of the new Multimeter Standard IEC 61010-2-033.

It has the basic functions voltage measurement and continuity test, as well as the more specific multimeter functions resistance and capacitance measurement, as well as diode test. Thanks to its SMART function automatically detects the C.A 755 AC and DC voltages, as well as resistances, diodes and capacities.

The practical test probes are removable and easy to replace, and you can easily be clipped into in a recording on the housing.
