Buy Chauvin Arnoux C.A 757 Multifunction tester CAT III 600 V LCD

Portable multimeter with digital display showing 0.072 A. Red and black test probes; red flexible current loop.

Electrical testing device with accessories: carry case, cables, batteries and instructions laid out on a table. Packaging displays 'C.A 757'.

Digital multimeter with an orange display shows '0.187 KΩ'. Two test leads, one red and one black, are connected.

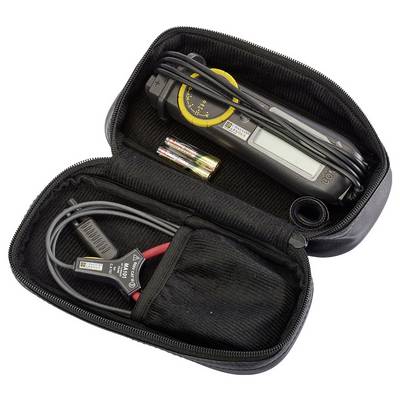

A digital multimeter in an open case with test leads and batteries, ready for use.

A digital electrical current meter with a clamp sensor and illuminated display, showing 0.757 A.

A person is measuring the current flow in an electrical cabinet using a digital multimeter. The display shows '0.254'.

1/6

Datasheet (PDF)

Fast track dispatch on Thu, 1 Oct

1 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 268.07 / piece)

€ 268.07

plus VAT.

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Voltage tester C.A 757

Automatic AC and DC-detection
Automatic detection of resistors, diodes and capacities
Automatic range selection
Display of dangerously high voltages
Detachable probe tips
Flexible current transformer for current measurements up to 300 A at places difficult to access ladders
Large illuminated display with 3000 digits

Technical specifications

A/AC reading range: 0 A - 300 A
Display counts: 3000.

Product type: Multifunction tester

Reading type: Phase
Continuity

Display: LCD

V AC reading range: 100 up to 1000 V

V DC reading range: 3 up to 1000 V

Reading category: CAT III 600 V

: IP54

: Manufacturer's standards (no certificate)

Dim: (L x W x H) 45 x 180 x 52 mm

Weight: 200 g

V AC reading range (max.): 1000 V

V AC reading range (min.): 100 mV

Voltage DC reading range (max.): 1000 V

Voltage reading range DC (min.): 3 mV

Width: 180 mm

Height: 52 mm

Length: 45 mm

Type: C.A 757

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1592692 Chauvin Arnoux C.A 757 Multifunction tester CAT III 600 V LCD

User & Safety Instructions

User & Safety Instructions 1592692 Chauvin Arnoux C.A 757 Multifunction tester CAT III 600 V LCD

Description

The C.A 757 is a compact test and measuring device that an electrician all commonplace necessary functions.

The C.A 757 is a lightweight, fits well in the hand lying, user-friendly device in protection class IP54. It is protected against dust and fall from the height of up to 2m. On his illuminated 3000 digit display the measured values can be read directly. The practical test probes are removable and easy to replace, and they can be comfortably with your cables in a recording on the housing clipping.

The C.A 757 is easy to use and is quickly an indispensable tool for all testing and maintenance work, at optimum protection for the operator:
- Protected against voltage peaks up to 6 kV
Protected up to 1000 V in all types of measurements
Display of dangerously high voltages
- Automatic shut-off after 10 minutes, do not use

With its double insulation and 600 V CAT III is the C.A 757 of the new Multimeter Standard IEC 61010-2-033.

The C.A 757 automatically detects AC and DC voltages, as well as resistance, passages, diodes and capacities and it has a contact-free voltage detection.

Each C.A 757 is equipped with a flexible Mini Flex ® - current transformer supplied with the currents up to 300 A even in hard to reach places can be measured.

This text is machine translated.
