Buy Chauvin Arnoux C100 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

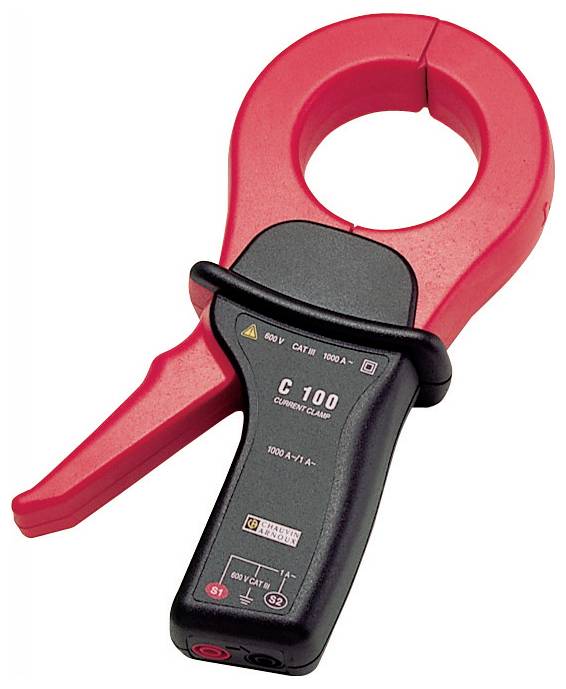

A red electrical current clamp meter with a black handle, labelled 'C 100', for measuring electrical currents.

Datasheet (PDF)

Dispatches on Fri, 9 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 352.10 / piece)

€ 352.10

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

C-pliers - powerful clamp transformer for 1000 A !

N/A
Opening range of current clamps 53 mm

Technical specifications

Transmission ratio (input/output): 1000/1

Opening range of current clamps: 53 mm

Product type: Clamp meter adapter

Type B: 4 mm socket

: Manufacturer's standards (no certificate)

A AC reading range (min.): 0.1 A

Amperage reading range AC (max.): 1200 A

Basic accuracy: 0.5 %

Dim: (L x W x H) 45 x 216 x 111 mm

Current reading: AC

Reading category: CAT III 600 V
CAT IV 300 V

Weight: 550 g

Output signal (max.): 1 A

Max. frequency: 10 kHz

Width: 216 mm

Height: 111 mm

Length: 45 mm

Variants(All information is without VAT, plus shipping costs)

Amperage reading range AC (max.)

Calibrated to

Type B

A AC reading range (min.)

Reading category

Current reading

Chauvin Arnoux C100 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199893

This article

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux D30CN Clamp meter adapter A/AC reading range: 1 - 3600 A

Item no:2199864

3600 A

Manufacturer's standards (no certificate)

4 mm plug

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C113 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199882

1200 A

Manufacturer's standards (no certificate)

4 mm plug

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C122 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199884

1200 A

Manufacturer's standards (no certificate)

4 mm socket

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C106 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199908

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C112 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199911

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C102 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199915

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C117 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199916

1200 A

Manufacturer's standards (no certificate)

4 mm plug

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C107 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199925

1200 A

Manufacturer's standards (no certificate)

4 mm plug

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C148 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199926

1200 A

Manufacturer's standards (no certificate)

4 mm socket

1 A

CAT III 600 VCAT IV 300 V

Documents & Downloads

Datasheet

Datasheet 2199893 Chauvin Arnoux C100 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

User & Safety Instructions

User & Safety Instructions 2199893 Chauvin Arnoux C100 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Description

The "C" series contains powerful clamp transformer for 1000 A. The round shape of the jaws and the uniform winding of the coil guarantee a high accuracy and minimum phase shift.
The optimum adjustment of the magnetic circuit through a pendulum-joint system and a patented support system for the progressive opening of the jaw plates facilitate the operation.
The 52mm diameter of the wrap allows CAT III 600V measurements to be made on most industrial and office building conductors.

This text is machine translated.

Scope of delivery

1 user manual
