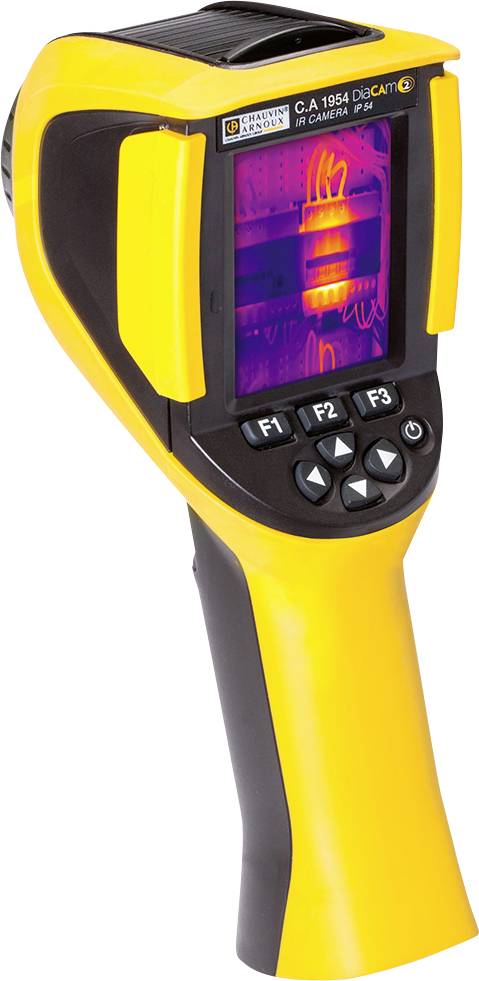

A yellow thermal imaging camera with a display showing a heat range in red and purple. Contains control buttons below the display.

A handheld optical device with a yellow and black casing, likely used for thermal imaging or scanning.

A yellow handheld device with a black handle and screen, possibly a barcode scanner, against a white background.

A handheld yellow and black infrared thermometer, pictured front-on, with a camera lens in the centre.

Yellow handheld scanner with an ergonomic grip, black control panel, and trigger. Suitable for storage and inventory management.

A person is using a thermal imaging camera to check electrical junction boxes for hot spots. The screen displays several coloured points.

1/6

Datasheet (PDF)

Dispatches on Fri, 18 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,889.92 / piece)

€ 1,889.92

plus VAT.

Only 3 Piece(s) available

Report legal concerns

Highlights & Details

C.A 1954 DiaCAM thermal imaging camera 2

9 Hz Thermal imaging camera
Temperature reading range -20 up to 250 °C
160 x 120 Pixel Bolometer matrix
Thermal sensitivity 80 mK

Technical specifications

Supplied with CAm Report ® - the software for analysis of thermal images
Protection class: IP54

Type: C.A 1954

Product type: IR camera

Bolometer array: 160 x 120 Pixel

Interfaces: USB

Temperature reading range (max.): 250 °C

Temperature reading range (min.): -20 °C

Optics: 38° x 28°

Frame rate: 9 Hz

Display resolution: 320 x 240 Pixel

: IP54

Thermal sensitivity: 80 mK

Dim: (L x W x H) 83 x 225 x 125 mm

Focus: Fixed-focus

Geometric resolution (IFOV): 4.1 mrad

Weight: 700 g

Basic accuracy: 2 %

Accuracy ± °C: 2 °C

Temperature reading range: -20 up to 250 °C

Width: 225 mm

Height: 125 mm

Length: 83 mm

Connection: Bluetooth
USB

Power supply (details): 4 x NiMH rechargeable batteries

: Manufacturer's standards (no certificate)

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1840846 Chauvin Arnoux C.A 1954 IR camera -20 up to 250 °C 160 x 120 Pixel 9 Hz

User & Safety Instructions

User & Safety Instructions 1840846 Chauvin Arnoux C.A 1954 IR camera -20 up to 250 °C 160 x 120 Pixel 9 Hz

Warranty Terms

Warranty Terms 1840846 Chauvin Arnoux C.A 1954 IR camera -20 up to 250 °C 160 x 120 Pixel 9 Hz

Description

In the context of normal maintenance work and before a real fault occurs, the more costs due to loss of production or expensive repairs, can be changed with the C.A 1954 disturbances on electrical systems especially by overheating.

The C.A 1954 is also perfectly suitable for the mechanical maintenance
And makes great help when troubleshooting:
• To detect anomalies and interference in internal components before the engine is overheated
• By examining the heat development mechanical components and discovery of wear points, incorrectly aligned shafts, lack of lubrication, setting errors, etc.
