Buy Chauvin Arnoux D31N Clamp meter adapter A/AC reading range: 1 - 1800 A

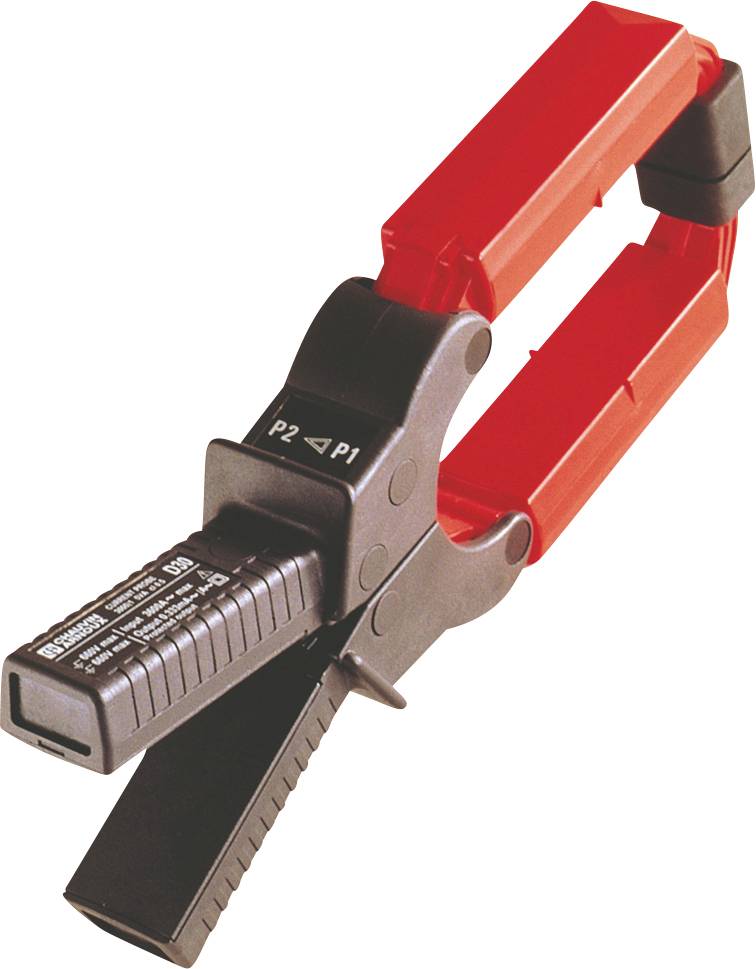

A red current clamp for measuring electrical currents without breaking the circuit. It has a plastic handle.

Datasheet (PDF)

Dispatches on Wed, 23 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 671.43 / piece)

€ 671.43

plus VAT.

Report legal concerns

Highlights & Details

D-clamps - exact measurement of alternating currents up to 3000 A !

N/A
Opening range of current clamps 64 mm

Technical specifications

Transmission ratio (input/output): 500/1 or 1000/1 or 1500/1

Opening range of current clamps: 64 mm

Product type: Clamp meter adapter

Type B: 4 mm socket

: Manufacturer's standards (no certificate)

A AC reading range (min.): 1 A

Amperage reading range AC (max.): 1800 A

Basic accuracy: 3 %

Dim: (L x W x H) 48 x 120 x 315 mm

Current reading: AC

Reading category: CAT III 600 V
CAT IV 300 V

Weight: 1200 g

Output signal (max.): 1 A

Max. frequency: 1.5 kHz

Width: 120 mm

Height: 315 mm

Length: 48 mm

Variants(All information is without VAT, plus shipping costs)

Amperage reading range AC (max.)

Calibrated to

Type B

A AC reading range (min.)

Reading category

Current reading

Chauvin Arnoux D30CN Clamp meter adapter A/AC reading range: 1 - 3600 A

Item no:2199864

3600 A

Manufacturer's standards (no certificate)

4 mm plug

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C113 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199882

1200 A

Manufacturer's standards (no certificate)

4 mm plug

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C122 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199884

1200 A

Manufacturer's standards (no certificate)

4 mm socket

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C100 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199893

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C106 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199908

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C112 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199911

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C102 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199915

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C117 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199916

1200 A

Manufacturer's standards (no certificate)

4 mm plug

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C107 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199925

1200 A

Manufacturer's standards (no certificate)

4 mm plug

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C148 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199926

1200 A

Manufacturer's standards (no certificate)

4 mm socket

1 A

CAT III 600 VCAT IV 300 V

Documents & Downloads

Datasheet

Datasheet 2199917 Chauvin Arnoux D31N Clamp meter adapter A/AC reading range: 1 - 1800 A

User & Safety Instructions

User & Safety Instructions 2199917 Chauvin Arnoux D31N Clamp meter adapter A/AC reading range: 1 - 1800 A

Description

The "D" series offers clamp transformer for accurate measurement of alternating currents up to 3000 A.
The rectangular shape of the jaws, the quality of the magnetic circles and the distributed windings allow precise measurements on thick cables and busbars.
An improved measurement resolution and accuracy is achieved through the 3 measuring ranges.

This text is machine translated.

Scope of delivery

1 user manual
