Name: Chauvin Arnoux D38N Clamp meter adapter Calibrated to (DAkkS standards) A/AC reading range: 1 - 9000 A
Brand: Chauvin Arnoux
SKU: 2468832

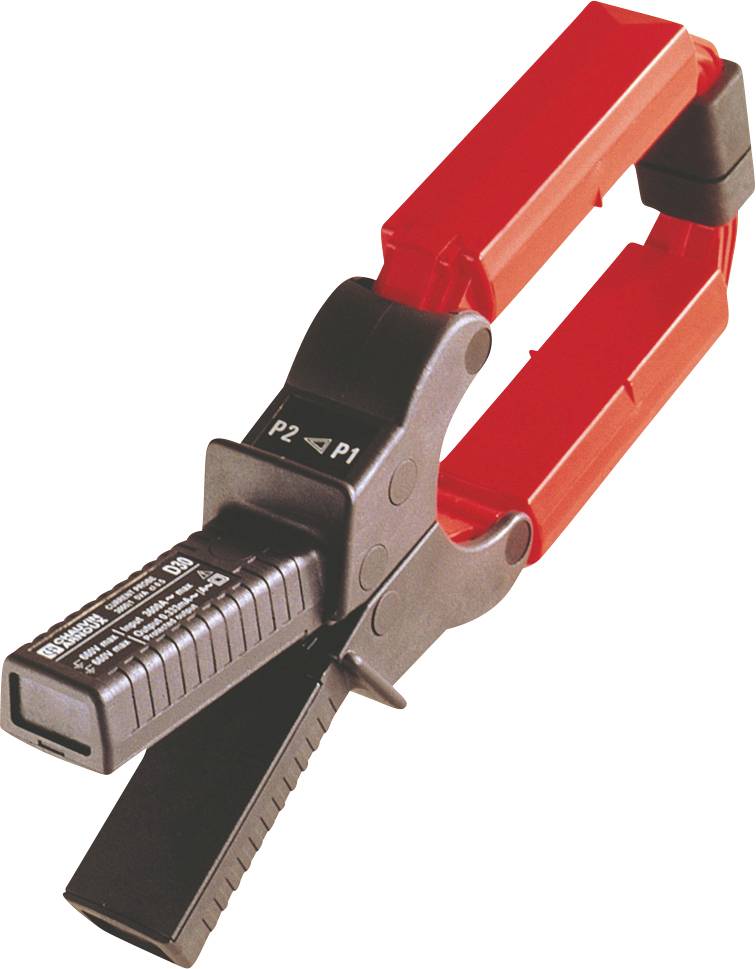

Red and black electrical clamp meter with two insulated handles, used for measuring electric current through conductors.

Image similar

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

D-clamps - exact measurement of alternating currents up to 3000 A !

Technical specifications

Transmission ratio (input/output): 1 A / 10 mV or 1 A/1 mV or 1 A/0.1 mV

Product type: Clamp meter adapter

Type B: BNC plug

: DAkkS standards

A AC reading range (min.): 1 A

Amperage reading range AC (max.): 9000 A

Basic accuracy: 2 %

Dim: (L x W x H) 48 x 120 x 315 mm

Current reading: AC

Reading category: CAT III 600 V
CAT IV 300 V

Weight: 1200 g

Output signal (max.): 1 V

Max. frequency: 50 kHz

Width: 120 mm

Height: 315 mm

Length: 48 mm

Variants(All information is without VAT, plus shipping costs)

Amperage reading range AC (max.)

Calibrated to

Type B

A AC reading range (min.)

Reading category

Current reading

Chauvin Arnoux C100 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199893

Dispatches on Tue 27 Oct

Conrad Electronic

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 419.00^*

Chauvin Arnoux C102 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199915

Dispatches on Thu 22 Oct

Conrad Electronic

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

Chauvin Arnoux C103 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199931

Dispatches on Thu 22 Oct

Conrad Electronic

1200 A

Manufacturer's standards (no certificate)

4 mm plug

0.1 A

CAT III 600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 465.00^*

Chauvin Arnoux C106 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199908

Dispatches on Tue 20 Oct

6 Piece(s)Conrad Electronic

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 535.00^*

Chauvin Arnoux C107 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199925

Dispatches on Thu 22 Oct

Conrad Electronic

1200 A

Manufacturer's standards (no certificate)

4 mm plug

0.1 A

CAT III 600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 549.00^*

Chauvin Arnoux C112 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199911

Dispatches on Tue 20 Oct

29 Piece(s)Conrad Electronic

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 605.00^*

Chauvin Arnoux C122 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199884

Dispatches on Thu 22 Oct

Conrad Electronic

1200 A

Manufacturer's standards (no certificate)

4 mm socket

1 A

CAT III 600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 535.00^*

Chauvin Arnoux C148 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199926

Dispatches on Fri 23 Oct

Conrad Electronic

1200 A

Manufacturer's standards (no certificate)

4 mm socket

1 A

CAT III 600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 749.00^*

Chauvin Arnoux D30CN Clamp meter adapter A/AC reading range: 1 - 3600 A

Item no:2199864

Dispatches on Thu 22 Oct

Conrad Electronic

3600 A

Manufacturer's standards (no certificate)

4 mm plug

1 A

CAT III 600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 685.00^*

Chauvin Arnoux D30N Clamp meter adapter A/AC reading range: 1 - 3600 A

Item no:2199866

Dispatches on Thu 22 Oct

Conrad Electronic

3600 A

Manufacturer's standards (no certificate)

4 mm socket

1 A

CAT III 600 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 665.00^*

Documents & Downloads

Datasheet

Datasheet 2468832 Chauvin Arnoux D38N Clamp meter adapter Calibrated to (DAkkS standards) A/AC reading range: 1 - 9000 A

User & Safety Instructions

User & Safety Instructions 2468832 Chauvin Arnoux D38N Clamp meter adapter Calibrated to (DAkkS standards) A/AC reading range: 1 - 9000 A

Description

The "D" series offers clamp transformer for accurate measurement of alternating currents up to 3000 A.
The rectangular shape of the jaws, the quality of the magnetic circles and the distributed windings allow precise measurements on thick cables and busbars.
In conjunction with an oscilloscope, this isolated current transformer with its 3 measurement ranges can be used to represent peak currents up to 9000 A with a bandwidth of up to 50 kHz.
