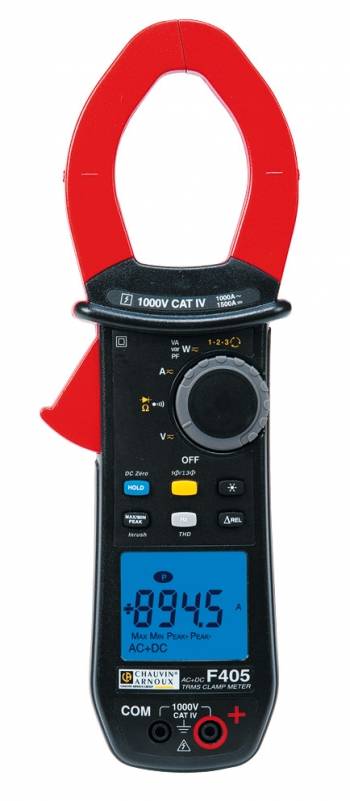

Chauvin Arnoux F405 Clamp meter Digital CAT IV 1000 V Display (counts): 10000
EAN:
Part number:
Item no:
Datasheet (PDF)
Total (€ 461.34 / piece)
€ 461.34
plus VAT.
14-day return policy included
Highlights & Details
F405 multi-use clamp-on ammeter
- TRMS AC+DC multi-purpose clamp meter for mixed AC+DC applications as well as maintenance and service at medium currents up to 1000 A AC / 1400 A DCEncapsulation-Ø: 48 mmWith True Inrush function: Start-up currents of motors and current requirements of plants can be determined in a simple wayImmediate measurement of active, reactive and apparent power as well as power factor PFHarmonic analysis: Measure THD values of distorted signalsBASIC FUNCTIONS: V AC, V DC, V AC+DC, A AC, A DC, A AC+DC, frequency, resistance, acoustic Continuity test, diode testAdditional functions: MIN / MAX, phase sequence of the outer conductor (2-conductor), power, THDf / THDr, peak+ / peak, true inrush, Relative measurement
Technical specifications
- Voltage reading range DC (min.)
0.1 V
- Product type
Clamp meter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.15 V
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.1 A
- A DC reading range (max.)
1500 A
- A AC reading range (min.)
0.15 A
- Amperage reading range AC (max.)
1000 A
- Reading range - resistance
0.1Ω - 100 kΩ
- Frequency reading range
5 Hz - 20 kHz
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
1 %
- Measurement type (details)
True RMS
- Frequency range
5 Hz - 2 kHz Hz
- Interfaces
none
- Power supply (details)
4 x AA battery
- Height
41 mm
- Width
92 mm
- Length
272 mm
- Weight
600 g
Manufacturer's standards (no certificate)
- Reading category
CAT IV 1000 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
F405
- Display
Digital
- Display (counts)
10000
- Dim
(L x W x H) 272 x 92 x 41 mm
- Opening range of current clamps
48 mm
Documents & Downloads
Datasheet
Datasheet 102544 Chauvin Arnoux F405 Clamp meter Digital CAT IV 1000 V Display (counts): 10000
User & Safety Instructions
User & Safety Instructions 102544 Chauvin Arnoux F405 Clamp meter Digital CAT IV 1000 V Display (counts): 10000
Description
DescriptionThe devices of the F400-series are equipped with a higher degree of protection for higher low voltages and are thus used especially in the maintenance, testing, monitoring and analysis of systems of medium power.The F405 clamp is equipped with a fast, digital 12-bit TRMS detection system for high measurement accuracy regardless of the waveform.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 set of test leads
- 1 set of test probes
- 1 alligator clip
- 4 x 1.5 V batteries
- 1 carrying case
- 1 quick guide and operating instructions in 5 languages on CD-ROM
