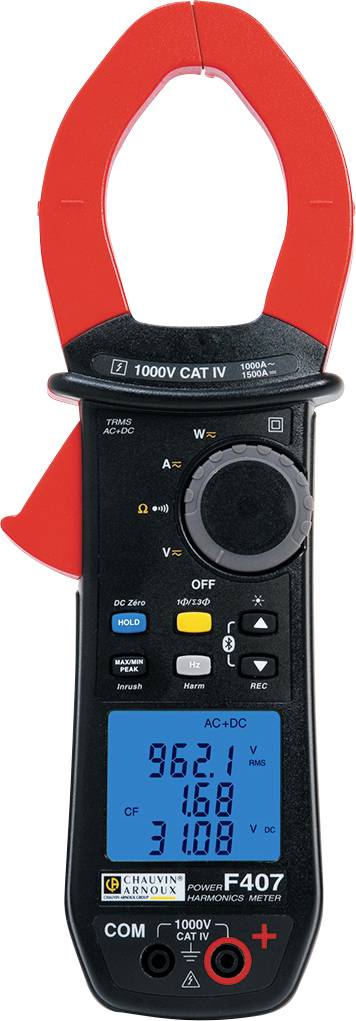

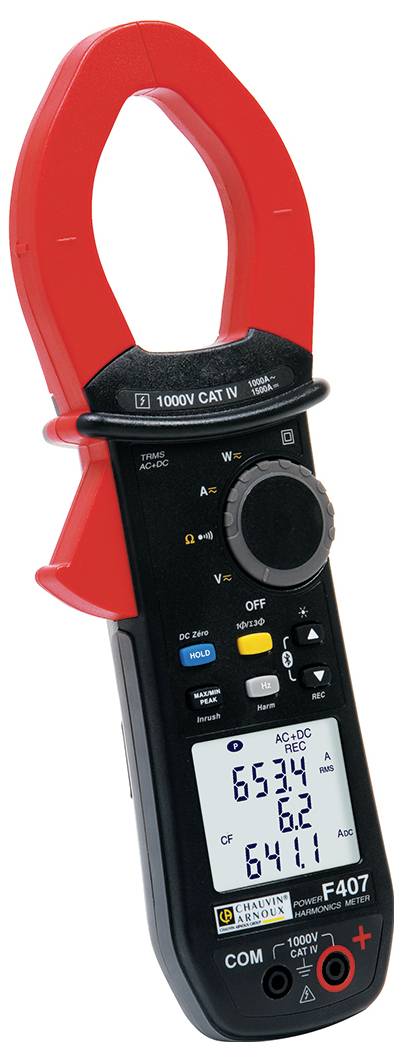

Chauvin Arnoux F407 Clamp meter Digital Data logger CAT IV 1000 V Display (counts): 10000
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
F407 power and harmonics measurement pliers
- CAT IV 1000 V
Technical specifications
- Voltage reading range DC (min.)
0.15 V
- Product type
Clamp meter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.15 V
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.25 A
- A DC reading range (max.)
1500 A
- A AC reading range (min.)
0.25 A
- Amperage reading range AC (max.)
1000 A
- Reading range - resistance
0.1Ω - 100 kΩ
- Frequency reading range
5 Hz - 20 kHz
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
1 %
- Measurement type (details)
True RMS
- Frequency range
5 Hz - 2 kHz Hz
- Interfaces
none
- Power supply (details)
4 x AA battery
- Height
41 mm
- Width
92 mm
- Length
272 mm
- Weight
600 g
Manufacturer's standards (no certificate)
- Reading category
CAT IV 1000 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
F407
- Display
Digital
- Display (counts)
10000
- Dim
(L x W x H) 272 x 92 x 41 mm
- Features
Data logger
- Opening range of current clamps
48 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 102545 Chauvin Arnoux F407 Clamp meter Digital Data logger CAT IV 1000 V Display (counts): 10000
User & Safety Instructions
User & Safety Instructions 102545 Chauvin Arnoux F407 Clamp meter Digital Data logger CAT IV 1000 V Display (counts): 10000
Warranty Terms
Warranty Terms 102545 Chauvin Arnoux F407 Clamp meter Digital Data logger CAT IV 1000 V Display (counts): 10000
Description

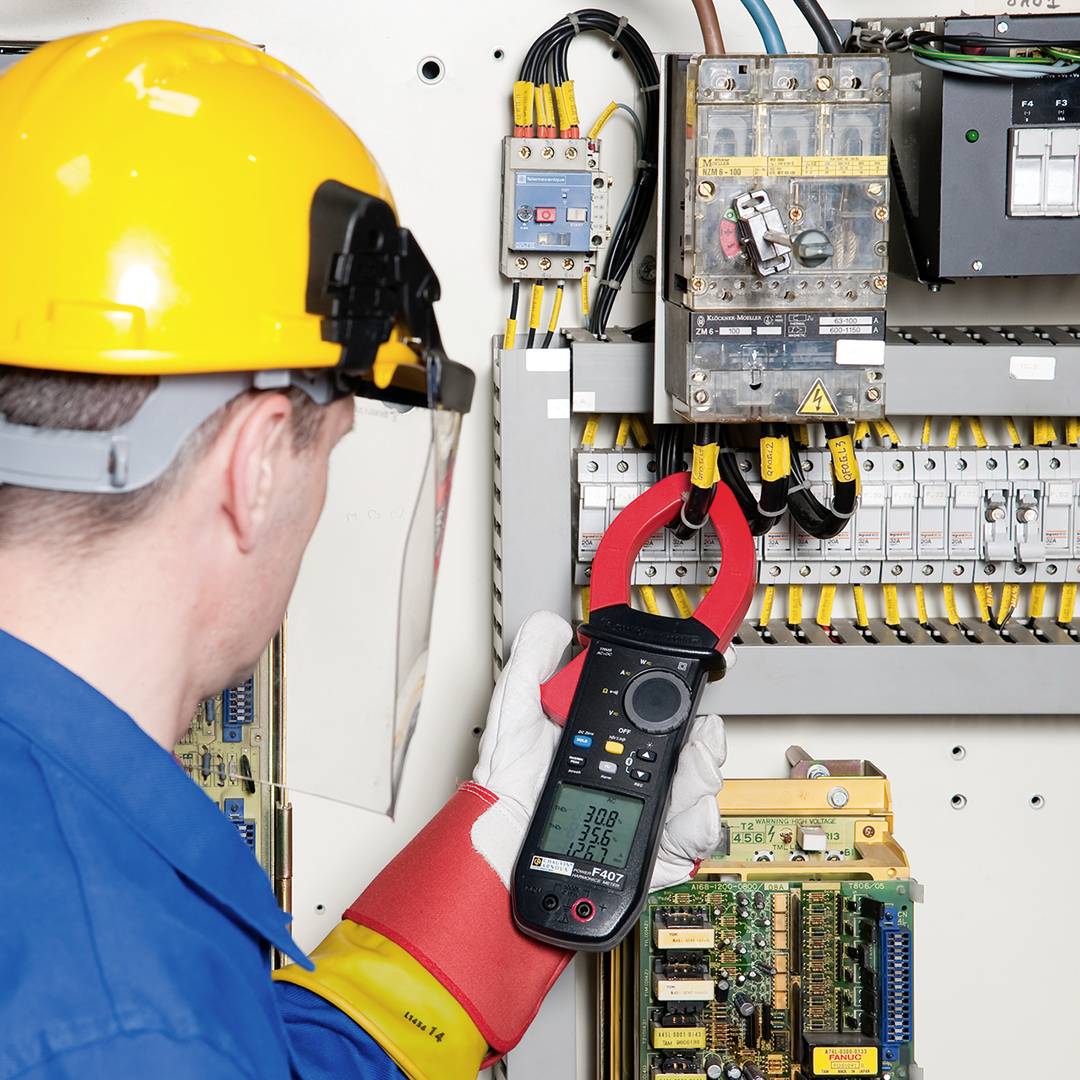

The F407 clamp is used in medium-power low-voltage distribution systems, industry, rail, etc. It is also suitable for elevator technology as well as for lifting and transport technology. Maintenance, testing, monitoring, analysis and connection technology are the main areas of application of the pliers of this series.The F407 pliers are equipped with a fast, digital 12-bit TRMS detection system for highest measurement accuracy. Thanks to high bandwidth and hohem factor, the pliers offer high measurement accuracy regardless of the signal type. All models in this series have automatic AC/DC detection. The IP54 protection class is also standard. The large, illuminated 10,000-point display ensures easy readability in all lighting conditions. Each position of the easy-to-use rotary switch is assigned an exact function.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 set of test leads
- 1 set of test probes
- 2 alligator clips
- 4 batteries 1.5 V.
- 1 carrying case
- 1 quick start guide and operating instructions in 5 languages on CD-ROM
