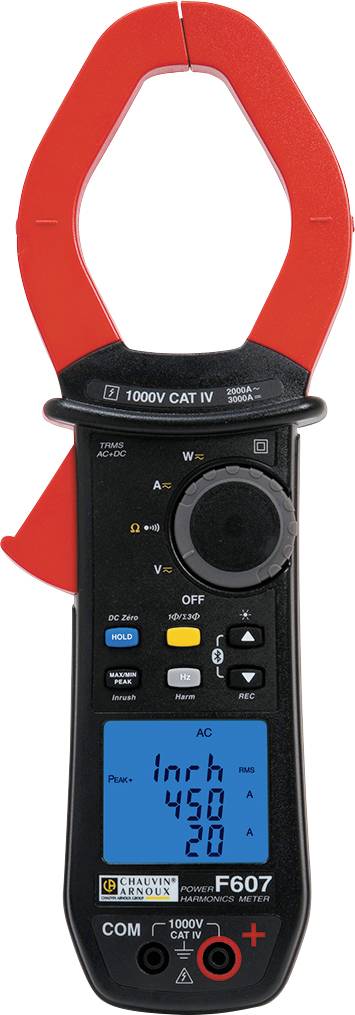

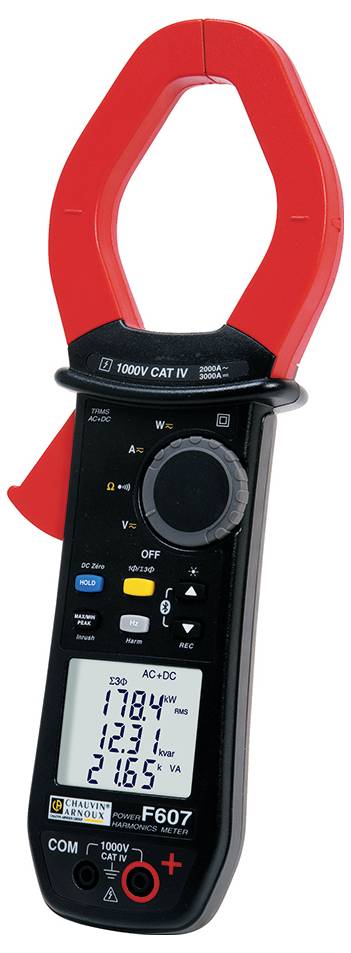

Chauvin Arnoux F607 Clamp meter Digital Data logger CAT IV 1000 V Display (counts): 10000
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
F607 power and harmonics measurement pliers
- TRMS AC+DC multi-purpose clamp meter for mixed AC+DC applications as well as analyzes and diagnostics at high currents up to 2000 A AC / 3000 A DC60 mm Ø / simultaneous display of 3 measured valuesWith True Inrush function: Start-up currents of motors and current requirements of plants can be determined in a simple wayImmediate measurement of active, reactive and apparent power as well as power factor PF and displacement factor DPFHarmonic analysis up to 25. Order (frequency analysis): Measure THD values of distorted signalsMeasurement data recording and Bluetooth: Detect brief disturbances, analyze data on the PC and generate reports!BASIC FUNCTIONS: V AC, V DC, V AC+DC, A AC, A DC, A AC+DC, frequency, resistance, acoustic Continuity testingAdditional functions: MIN / MAX, power, THDf / THDr, displacement factor, peak+ / peak-, True Inrush, harmonics (0 to 25. Order), Ripple, data recording, PC software, Bluetooth
Technical specifications
- Voltage reading range DC (min.)
0.1 V
- Product type
Clamp meter
- Voltage DC reading range (max.)
1000 V
- V AC reading range (min.)
0.15 V
- V AC reading range (max.)
1000 V
- Amperage reading range DC (min.)
0.1 A
- A DC reading range (max.)
3000 A
- A AC reading range (min.)
0.15 A
- Amperage reading range AC (max.)
2000 A
- Reading range - resistance
0.1Ω - 100 kΩ
- Frequency reading range
5 Hz - 20 kHz
- DC resistance
10 MΩ
- AC resistance
10 MΩ
- Basic accuracy
1 %
- Measurement type (details)
True RMS
- Frequency range
5 Hz - 1 kHz Hz
- Interfaces
none
- Power supply (details)
4 x AA battery
- Height
41 mm
- Width
111 mm
- Length
296 mm
- Weight
640 g
Manufacturer's standards (no certificate)
- Reading category
CAT IV 1000 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
F607
- Display
Digital
- Display (counts)
10000
- Dim
(L x W x H) 296 x 111 x 41 mm
- Features
Data logger
- Opening range of current clamps
60 mm
Documents & Downloads
Datasheet
Datasheet 102550 Chauvin Arnoux F607 Clamp meter Digital Data logger CAT IV 1000 V Display (counts): 10000
User & Safety Instructions
User & Safety Instructions 102550 Chauvin Arnoux F607 Clamp meter Digital Data logger CAT IV 1000 V Display (counts): 10000
Description

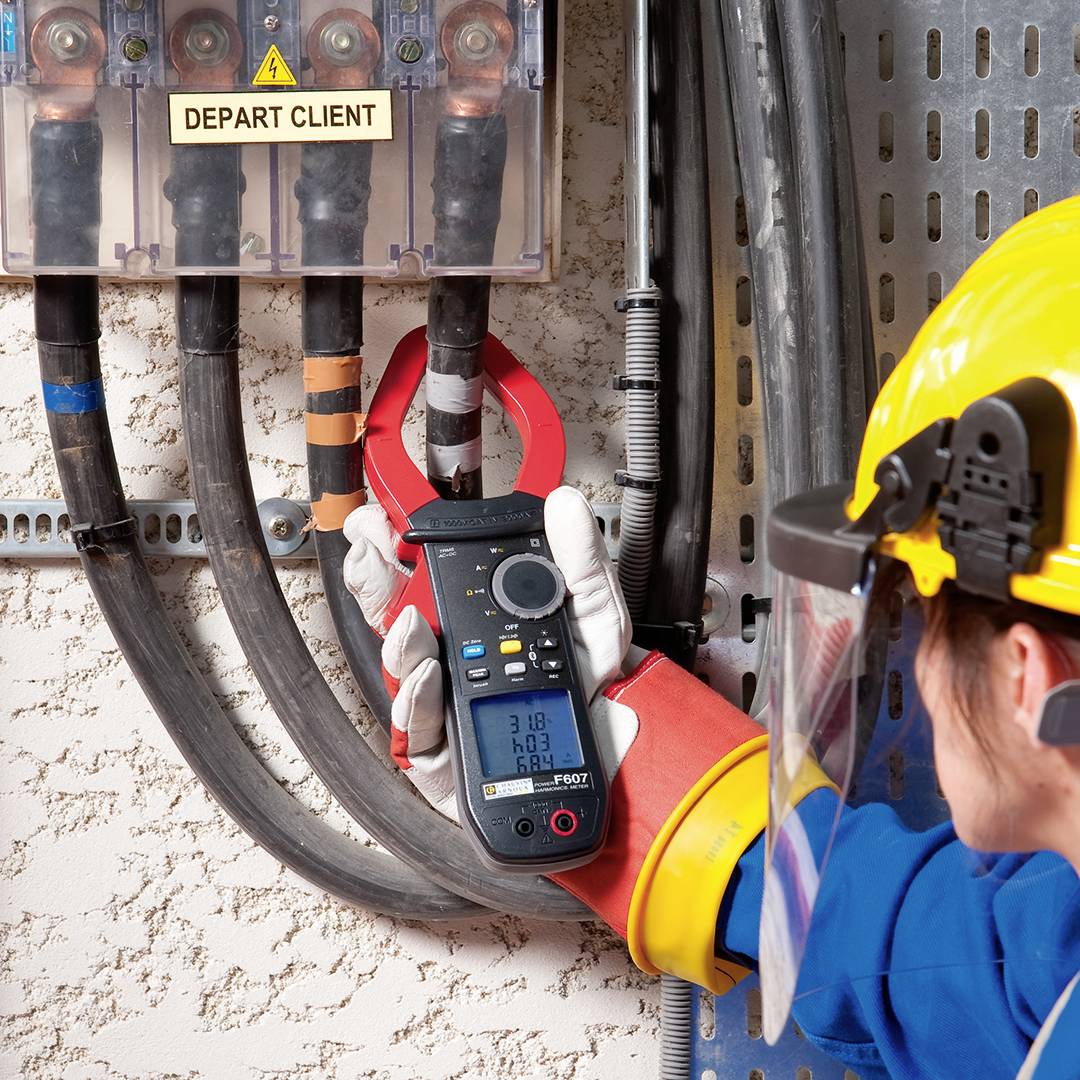

With its 60 mm diameter and current measuring range up to 3000 A, the F607 clamp is suitable for low voltage distribution networks. The F607 pliers are equipped with a fast, digital 12-bit TRMS detection system for highest measurement accuracy. Thanks to high bandwidth and hohem factor, the pliers offer high measurement accuracy regardless of the signal type.All models in this series have automatic AC/DC detection. The IP54 protection class is also standard. The large, illuminated triple display with 10,000 points ensures good readability in all lighting conditions. Each position of the easy-to-use rotary switch has an exact function assigned.Main application area: Maintenance, testing, monitoring, analysis, dimensioning, Connection technology, etc.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 set of test leads
- 1 set of test probes
- 2 alligator clips
- 4 x 1.5 V batteries
- 1 carrying case
- 1 quick guide and operating instructions in 5 languages on CD-ROM
