Chauvin Arnoux MA 200-100 Clamp meter adapter A/AC reading range: 0.5 - 4500 A A/DC reading range: 0.5 - 4500 A Flexible
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 701.68 / piece)
€ 701.68
plus VAT.
14-day return policy included
Highlights & Details

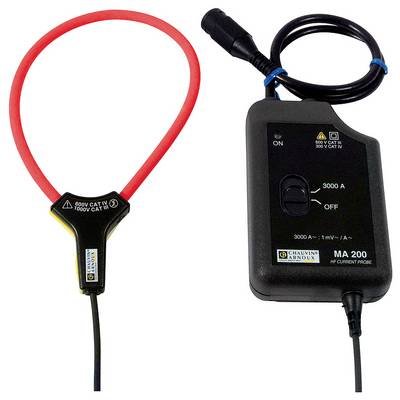

Flexible current transformer MiniFLEX MA200 BNC - Ø 100 mm
- N/A
- Opening range of current clamps 350 mm
Technical specifications
- Opening range of current clamps
350 mm
- Product type
Clamp meter adapter
- Type B
BNC plug
Jack plug
Manufacturer's standards (no certificate)
- A AC reading range (min.)
0.5 A
- Amperage reading range AC (max.)
4500 A
- Amperage reading range DC (min.)
0.5 A
- A DC reading range (max.)
4500 A
- Power supply (details)
9 V battery
- Dim
(L x W x H) 28 x 103 x 64 mm
- Current reading
AC/DC
- Reading category
CAT IV 600 V
- Weight
250 g
- Max. frequency
1 MHz
- Width
103 mm
- Height
64 mm
- Length
28 mm
- Features
Flexible
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1666190 Chauvin Arnoux MA 200-100 Clamp meter adapter A/AC reading range: 0.5 - 4500 A A/DC reading range: 0.5 - 4500 A Flexible
User & Safety Instructions
User & Safety Instructions 1666190 Chauvin Arnoux MA 200-100 Clamp meter adapter A/AC reading range: 0.5 - 4500 A A/DC reading range: 0.5 - 4500 A Flexible
User & Safety Instructions 1666190 Chauvin Arnoux MA 200-100 Clamp meter adapter A/AC reading range: 0.5 - 4500 A A/DC reading range: 0.5 - 4500 A Flexible
Description
The insulated current transformer is equipped with a BNC connector for connection to oscilloscope. It offers a high transmission bandwidth and also reliably indicates transient signals. For example, it can indicate driving signals, thyristor trigger signals or output current of electronic power supply units. The applications of MiniFLEX Current transformers are very diverse:
– Power measurement
– Measurement at control panel
– Measurement at Thyristors
– Testing at switches and isolators
– Indication of driving signal, etc.
This text is machine translated.
– Power measurement
– Measurement at control panel
– Measurement at Thyristors
– Testing at switches and isolators
– Indication of driving signal, etc.
This text is machine translated.
Features
- Length of loop: 350 mm
- Encapsulation-Ø: 100 mm
- Bandwidth 5 Hz - 1 MHz
Scope of delivery
- 1 flexible current transformer with: 1 9V, 1 operating instructions in 5 languages, 1 Review Certificate
