Buy Chauvin Arnoux Mini 03 Clamp meter adapter A/AC reading range: 1 - 100 A

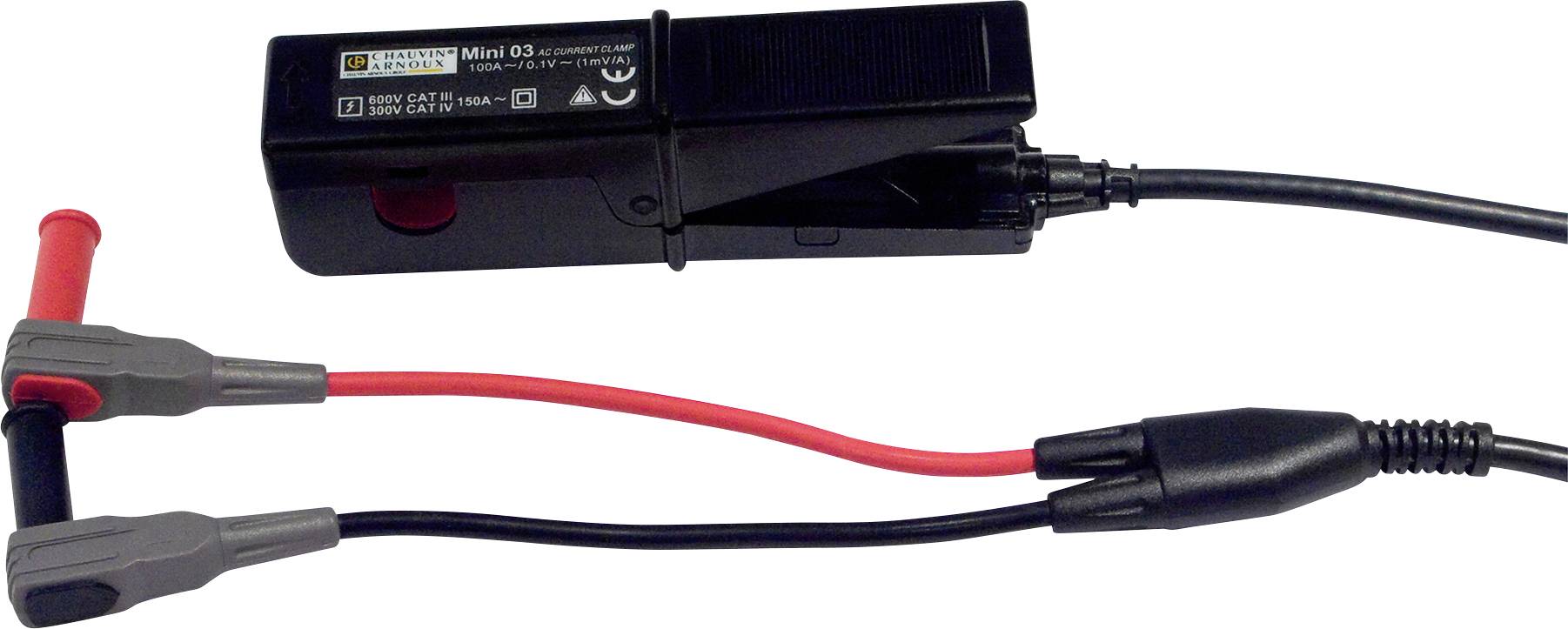

Wired Mini Current Clamp for Measuring Current Intensities. Black Housing with Red and Grey Connecting Cables.

Datasheet (PDF)

Dispatches on Mon, 5 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 109.24 / piece)

€ 109.24

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

MINI-pliers - small and compact!

N/A
Opening range of current clamps 10 mm

Technical specifications

Transmission ratio (input/output): 1 A/ 1 mV

Opening range of current clamps: 10 mm

Product type: Clamp meter adapter

Type B: 4 mm plug

: Manufacturer's standards (no certificate)

A AC reading range (min.): 1 A

Amperage reading range AC (max.): 100 A

Basic accuracy: 2 %

Dim: (L x W x H) 25 x 130 x 37 mm

Current reading: AC

Reading category: CAT III 600 V
CAT IV 300 V

Weight: 180 g

Output signal (max.): 0.1 V

Max. frequency: 500 Hz

Width: 130 mm

Height: 37 mm

Length: 25 mm

Variants(All information is without VAT, plus shipping costs)

Amperage reading range AC (max.)

Calibrated to

Type B

A AC reading range (min.)

Reading category

Current reading

Chauvin Arnoux D30CN Clamp meter adapter A/AC reading range: 1 - 3600 A

Item no:2199864

3600 A

Manufacturer's standards (no certificate)

4 mm plug

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C113 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199882

1200 A

Manufacturer's standards (no certificate)

4 mm plug

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C122 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199884

1200 A

Manufacturer's standards (no certificate)

4 mm socket

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C100 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199893

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C106 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199908

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C112 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199911

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C102 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199915

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C117 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199916

1200 A

Manufacturer's standards (no certificate)

4 mm plug

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C107 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199925

1200 A

Manufacturer's standards (no certificate)

4 mm plug

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C148 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199926

1200 A

Manufacturer's standards (no certificate)

4 mm socket

1 A

CAT III 600 VCAT IV 300 V

Documents & Downloads

Datasheet

Datasheet 2199919 Chauvin Arnoux Mini 03 Clamp meter adapter A/AC reading range: 1 - 100 A

User & Safety Instructions

User & Safety Instructions 2199919 Chauvin Arnoux Mini 03 Clamp meter adapter A/AC reading range: 1 - 100 A

Description

The small, compact clamp transformer MINI 03 is the ideal accessory for multimeters for alternating current measurement in applications with low power in the commercial and industrial sector.
In conjunction with an AC voltmeter, measured currents can be read directly.

This text is machine translated.

Scope of delivery

1 user manual
