Buy Chauvin Arnoux MINI102 Clamp meter adapter A/AC reading range: 50 mA - 200 A

An ammeter with a crocodile clip, connected by a cable. It is used for measuring electrical currents in cables.

A black pedal for sewing machines, with a black cable, is used to control the speed of the sewing machine.

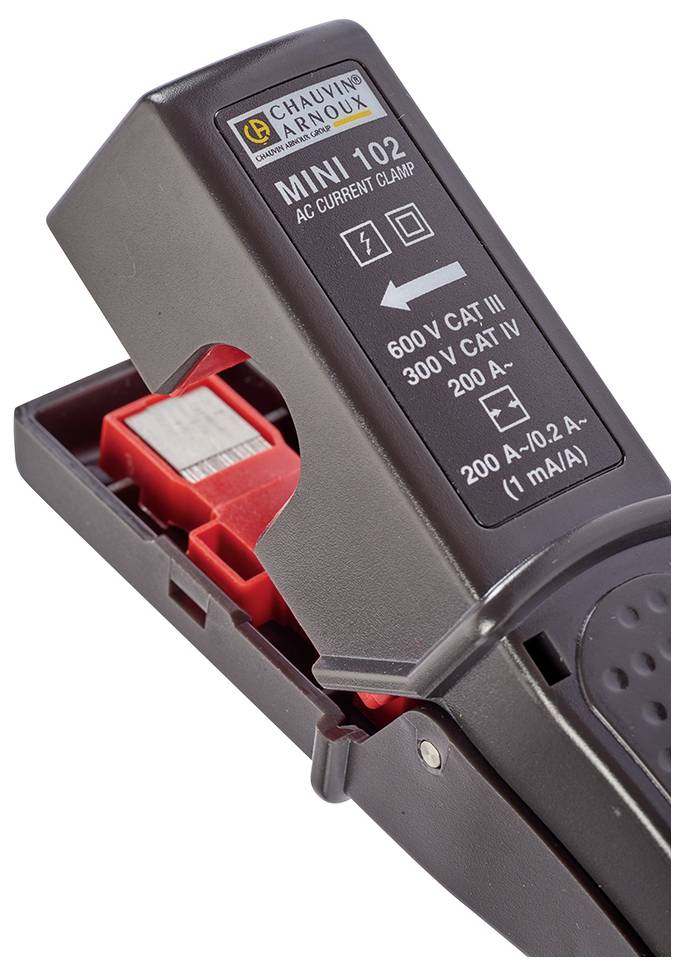

A device for measuring alternating current with a printed scale indicating values up to 600V CAT III and 200A.

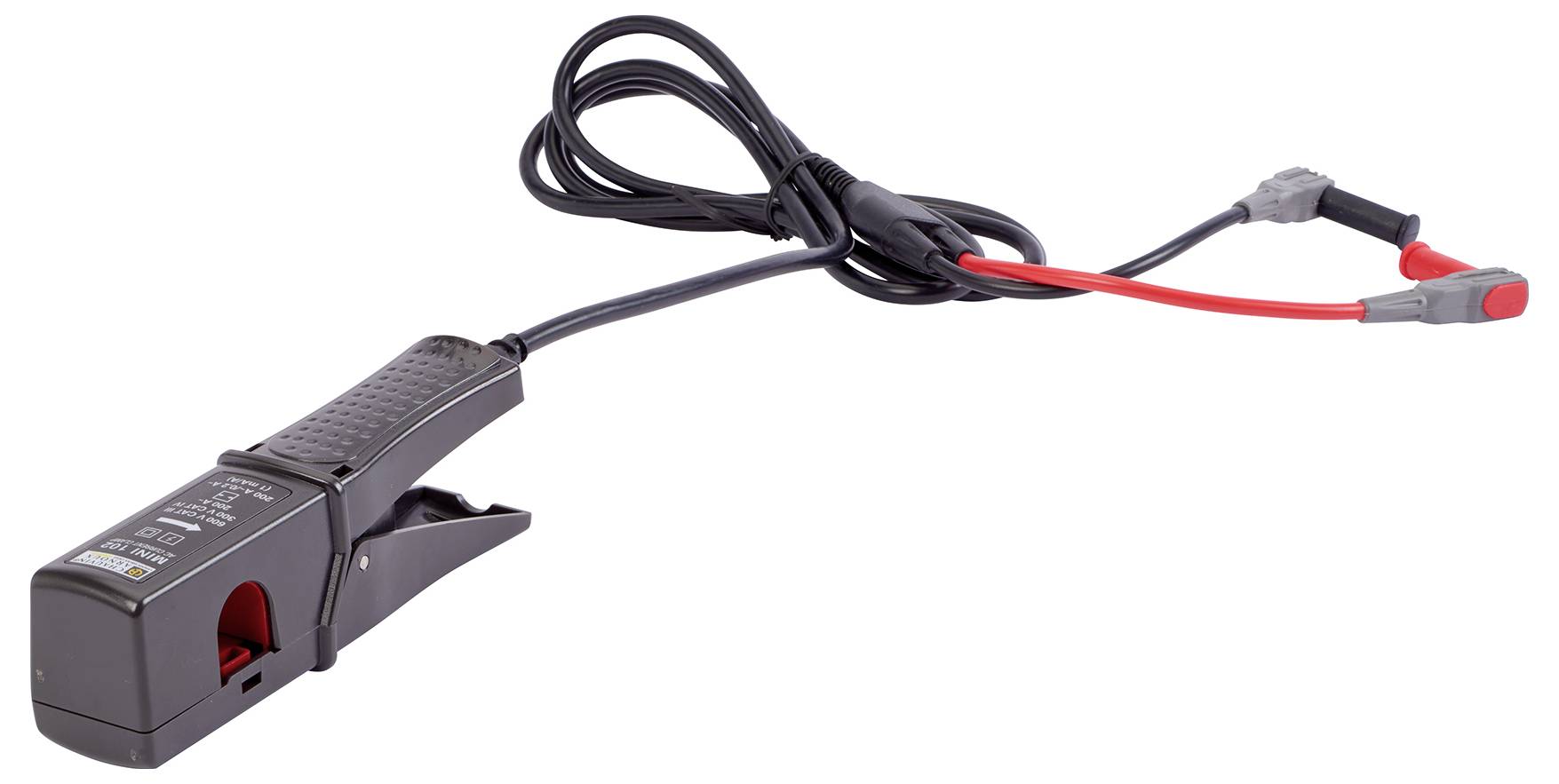

A black current clamp adapter with fixed cable and two crocodile clips in red and black for current measurement.

1/4

Datasheet (PDF)

Dispatches on Wed, 23 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 259.66 / piece)

€ 259.66

plus VAT.

Report legal concerns

Highlights & Details

MINI-pliers - small and compact!

N/A
Opening range of current clamps 16 mm

Technical specifications

Transmission ratio (input/output): 1000/1

Opening range of current clamps: 16 mm

Product type: Clamp meter adapter

Type B: 4 mm plug

: Manufacturer's standards (no certificate)

A AC reading range (min.): 50 mA

Amperage reading range AC (max.): 200 A

Basic accuracy: 4 %

Dim: (L x W x H) 34 x 130 x 46 mm

Current reading: AC

Reading category: CAT III 600 V
CAT IV 300 V

Weight: 250 g

Output signal (max.): 200 mV

Max. frequency: 10 kHz

Width: 130 mm

Height: 46 mm

Length: 34 mm

Variants(All information is without VAT, plus shipping costs)

Amperage reading range AC (max.)

Calibrated to

Type B

A AC reading range (min.)

Reading category

Current reading

Chauvin Arnoux D30CN Clamp meter adapter A/AC reading range: 1 - 3600 A

Item no:2199864

3600 A

Manufacturer's standards (no certificate)

4 mm plug

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C113 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199882

1200 A

Manufacturer's standards (no certificate)

4 mm plug

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C122 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199884

1200 A

Manufacturer's standards (no certificate)

4 mm socket

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C100 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199893

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C106 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199908

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C112 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199911

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C102 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199915

1200 A

Manufacturer's standards (no certificate)

4 mm socket

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C117 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199916

1200 A

Manufacturer's standards (no certificate)

4 mm plug

1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C107 Clamp meter adapter A/AC reading range: 0.1 - 1200 A

Item no:2199925

1200 A

Manufacturer's standards (no certificate)

4 mm plug

0.1 A

CAT III 600 VCAT IV 300 V

Chauvin Arnoux C148 Clamp meter adapter A/AC reading range: 1 - 1200 A

Item no:2199926

1200 A

Manufacturer's standards (no certificate)

4 mm socket

1 A

CAT III 600 VCAT IV 300 V

Documents & Downloads

Datasheet

Datasheet 2199912 Chauvin Arnoux MINI102 Clamp meter adapter A/AC reading range: 50 mA - 200 A

User & Safety Instructions

User & Safety Instructions 2199912 Chauvin Arnoux MINI102 Clamp meter adapter A/AC reading range: 50 mA - 200 A

Description

The small, compact clamp transformer MINI 102 is the ideal accessory for multimeters for alternating current measurement in applications with low power in the commercial and industrial sector.
THE MINI 102 clamp has a surge protector that protects it when disconnecting the meter when there is voltage on the included lines.

This text is machine translated.

Scope of delivery

1 user manual
