Chauvin Arnoux P01120460 MN 77 Calm meter amplifier 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

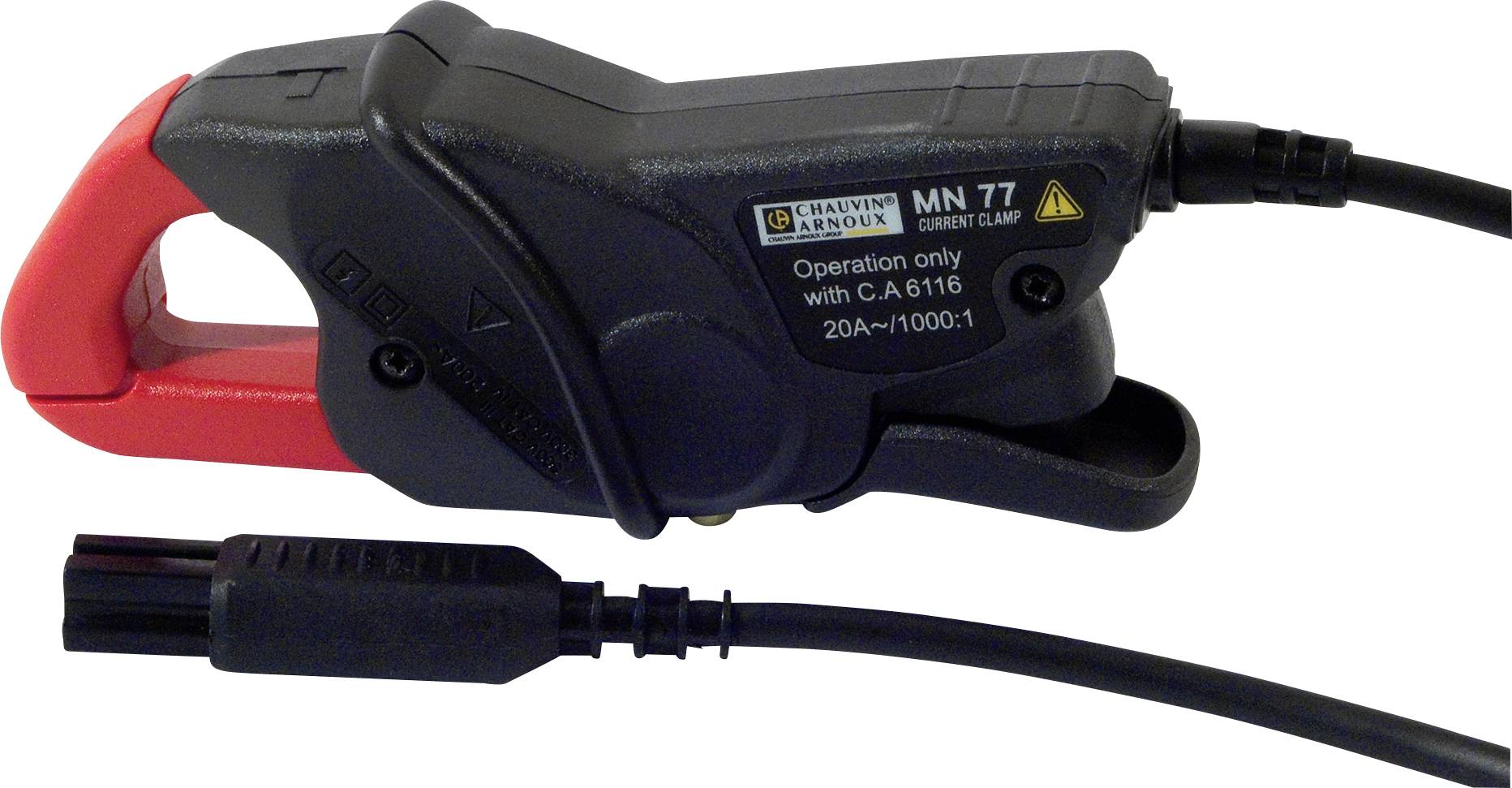

Clip-on ammeter MN77 (20A)
- Accessories for installation tester C.A 6113 / C.A 6116N / C.A 6117
- Pliers with wrap-Ø of 20 mm
- Allows current measurement (1 mA** - 19.99 A) and selective earthing measurement
- ** If a voltage is applied to the device
Technical specifications
- Transmission ratio: 1000/1
- Measuring span: 0.005 - 20 A
- Enclosing diameter of the clamp-on ammeter: 20 mm
- Protection class IP40 and IP30 with open Plier jaws
- Product type
Calm meter amplifier
- Compatible with
Chauvin Arnoux
- Weight
180 g
- Reading category
CAT III 600 V
CAT IV 300 V
- Width
51 mm
- Height
30 mm
- Length
135 mm
- Type
MN 77
- Compatible with (details)
C.A 6113, C.A 6116N, C.A 6117
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1385385 Chauvin Arnoux P01120460 MN 77 Calm meter amplifier 1 pc(s)
User & Safety Instructions 1385385 Chauvin Arnoux P01120460 MN 77 Calm meter amplifier 1 pc(s)
Description
Accessories for installation tester C.A 6113 / C.A 6116N / C.A 6117. Pliers with wrap-Ø of 20 mm. Allows current measurement (1 mA** - 19.99 A) and selective earthing measurement. Note **: When a voltage is applied to the device.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 operating instructions
