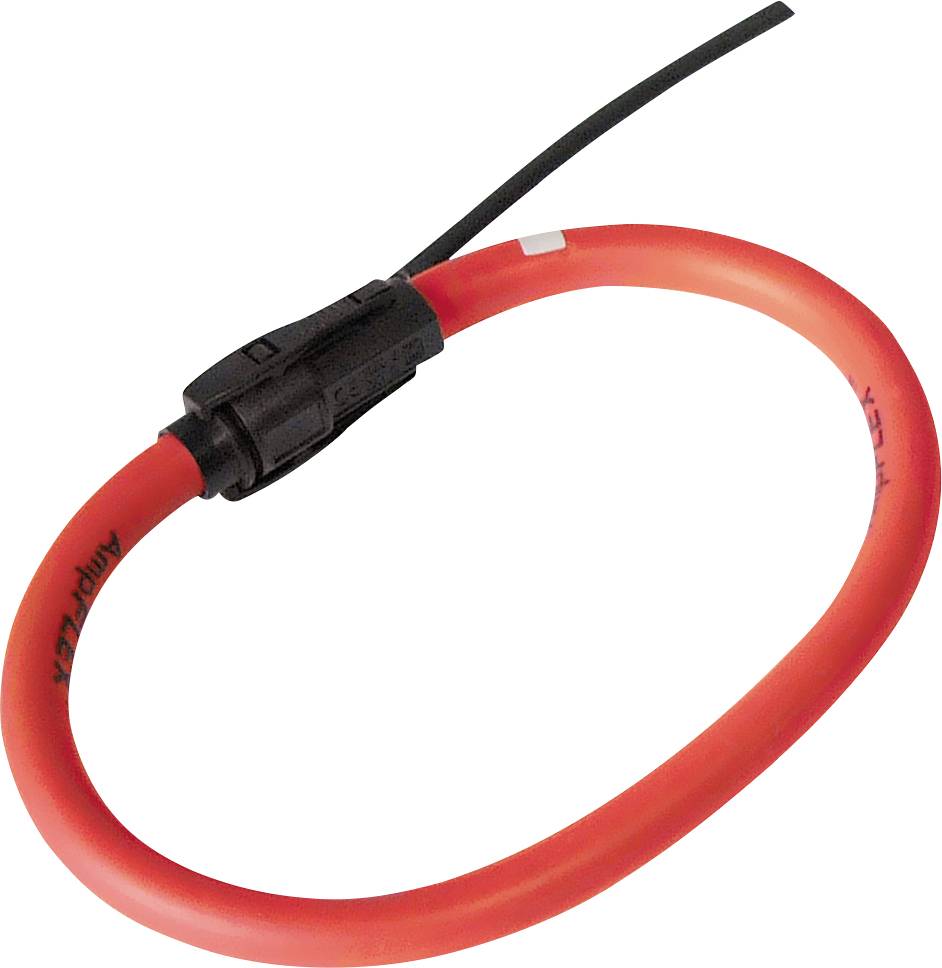

Chauvin Arnoux P01120526B A193-450 Current Transformers 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 293.28 / piece)
€ 293.28
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Ampflex A193-450mm (diameter 140mm)
- Encapsulation-Ø 140 mm / loop length 450 mm
- Safety according to IEC 61010: CAT III 1000 V / CAT IV 600 V.
- Measuring range with PEL 51 / 52: 200 mA...3 kA AC
- Measuring range with PEL 10X / PEL 11X: 200 mA…10 kA AC
- Measuring range with C.A 8331 / 8333 / 8336 / 8436: 100 mA…10 kA AC
- MEASURING RANGE WITH C.A 8332B / 8334B / 8335 / 8435: 30 A...6500 A AC
- Measuring range with C.A 8345: 100 mA…10 kA AC
- Measurement range with C.A 8220 / C.A 8230: 10 / 30 A...6500 A AC
Technical specifications
- Product type
Current Transformers
- Compatible with
Chauvin Arnoux
- Compatible with
Chauvin Arnoux C.A. 8220
Chauvin Arnoux PEL 102
Chauvin Arnoux PEL 103
- Type
A193-450
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 674484 Chauvin Arnoux P01120526B A193-450 Current Transformers 1 pc(s)
User & Safety Instructions 674484 Chauvin Arnoux P01120526B A193-450 Current Transformers 1 pc(s)
Information
Information 674484 Chauvin Arnoux P01120526B A193-450 Current Transformers 1 pc(s)
Description
Encapsulation-Ø 140 mm / loop length 450 mm. Safety according to IEC 61010: CAT III 1000 V / CAT IV 600 V. Measuring range with PEL 51 / 52: 200 mA...3 kA AC. Measuring range with PEL 10X / PEL 11X: 200 mA…10 kA AC. Measuring range with C.A 8331 / 8333 / 8336 / 8436: 100 mA…10 kA AC. MEASURING RANGE WITH C.A 8332B / 8334B / 8335 / 8435: 30 A...6500 A AC. Measuring range with C.A 8345: 100 mA…10 kA AC. Measurement range with C.A 8220 / C.A 8230: 10 / 30 A...6500 A AC
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 operating instructions
