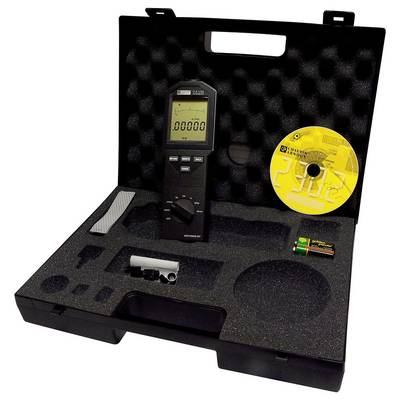

Black suitcase with foam lining, contains a digital measuring device, a battery, a yellow CD case, and cable accessories.

'Two black electronic devices with multiple ports and controls, front and rear view.'

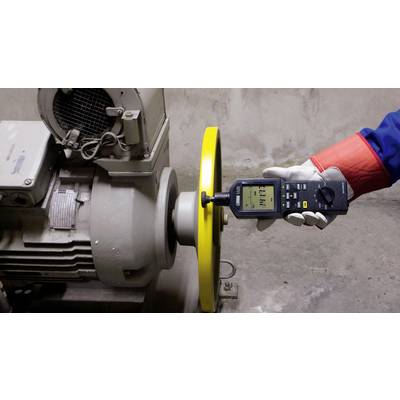

A person is measuring the vibrations of an electric motor using a vibration measuring device. The motor has a yellow protective guard.

1/4

Datasheet (PDF)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 483.19 / piece)

€

Report legal concerns

Highlights & Details

Chauvin Arnoux P01174810 Tachometer Mechanical, Optical 10000 U/min (max) 60 - 100000 U/min

Measurements up to 100 000 rpm
Numerous functions
Automatic recording and storage options
Measurement of linear speeds, event counting, frequency and period measurement
Many different programming options

Technical specifications

Function (rpm), RPM (revolutions per minute): Range: 60 to 100,000 rpm; Resolution: 0.006 to 6 depending on the measurement range; accuracy: 1.10-4 of the display ±6 Digit
Function m/min, ft/min (Lineargewschindigkeit): Range: 6 to 10,000 m/min; Resolution: 0.006 to 6 depending on the measurement range; accuracy: 1.10-4 of the display ±1 step
Function Hz (frequency): Range: 1 to 10,000 Hz; Resolution: 0.004 to 0.4 depending on the measurement range; accuracy: ± 4 Digit 4.10-5 of the display
Function ms (signal duration): Range: 0.1 to 1.000 ms; Resolution: 0.0003 up to 0.03 depending on the measurement range; accuracy: ± 5 Digit 1.10-4 of the display
Function Duty % (duty cycle): Range: 0.1 to 100%; Resolution: 0.1 to 1% depending on the measurement range accuracy 0.1% of range between 0.2 Hz and 50 Hz; 0.2% of the area between 50 Hz and 125 Hz; 1% of the range over 125 Hz

RPM accuracy: 1,10-4 der Anzeige +-6 Digit

Reading distance: 1 bis 50 cm

Dim: (L x W x H) 47 x 216 x 72 mm

Weight: 250 g

Height: 72 mm

Length: 47 mm

Width: 216 mm

Rotational speed range (max.): 10000 U/min (max)

Rotational speed (optical): 60 - 100000 U/min

: Manufacturer's standards (no certificate)

Display: Digital
Analogue

Measuring type: Mechanical
Optical

Type: C.A 1725

Rotational speed, mechanical (max.): 10000 U/min

Rotational speed, optical (max.): 100000 U/min

Rotational speed, optical (min.): 60 U/min

Product type: Tachometer

Documents & Downloads

Datasheet

Datasheet 1882103 Chauvin Arnoux P01174810 Tachometer Mechanical, Optical 10000 U/min (max) 60 - 100000 U/min

User & Safety Instructions

User & Safety Instructions 1882103 Chauvin Arnoux P01174810 Tachometer Mechanical, Optical 10000 U/min (max) 60 - 100000 U/min

Description

The C.A 1725 is about his rotary switch is easy to use. Measurements can be done in various ways with or without any contact.

At a non-contact optical measurement is a shining mark onto the object to be measured glued. For measurements with contact using accessories by a mechanical adapter (cylinder, cone or measuring wheel) rotary speeds in pulses converted, which, in turn, by the tachometer.

In the digital display will be a bar graph with 42 segments, preset functions, alarm limits, etc.. The 7 units (U/min, RPM, Hz, etc.) can be accessed directly via the rotary switch and each button is assigned to exactly one function (MIN MAX, smoothing, warning limits, etc.).
