Buy Chauvin Arnoux PAC 15 Clamp meter adapter A/AC reading range: 0.5 - 400 A A/DC reading range: 0.5 - 600 A

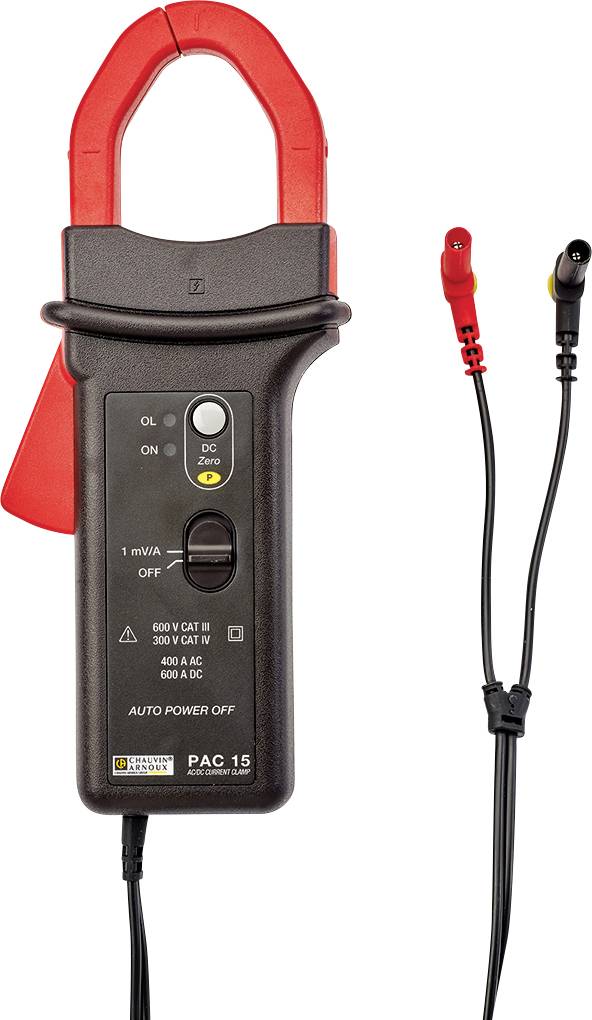

A current measuring device with red clamps and two cables. The switch displays options for configuring current measurements.

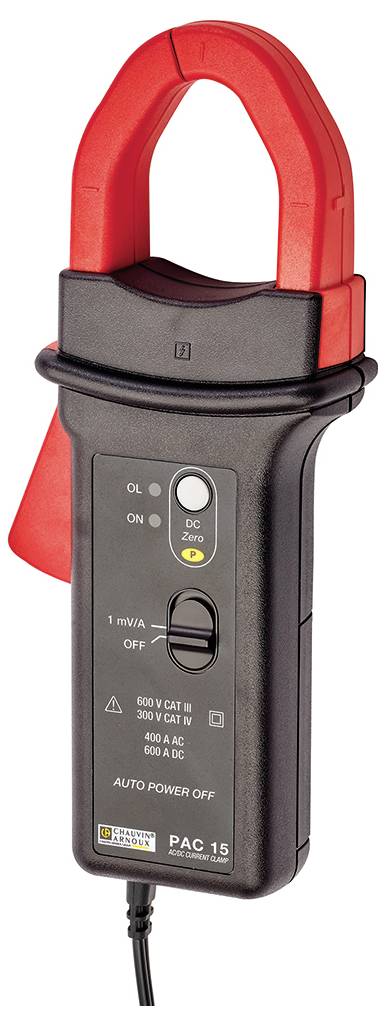

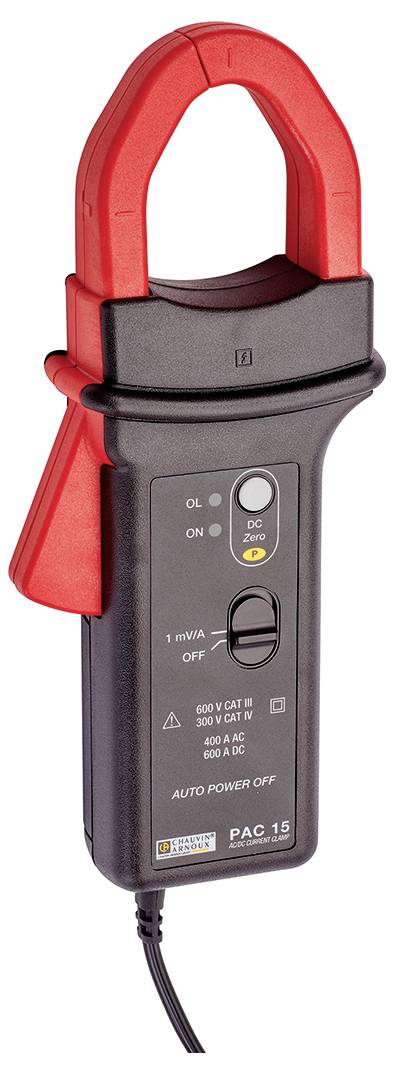

A red and black clamp ammeter for measuring electrical currents with various adjustment options and a cable.

1/3

Datasheet (PDF)

Dispatches on Mon, 5 Oct

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 298.32 / piece)

€ 298.32

plus VAT.

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

PAC Series - AC/DC Current Clamps !

N/A
Opening range of current clamps 30 mm

Technical specifications

Opening range of current clamps: 30 mm

Product type: Clamp meter adapter

: Manufacturer's standards (no certificate)

A AC reading range (min.): 0.5 A

Amperage reading range AC (max.): 400 A

Amperage reading range DC (min.): 0.5 A

A DC reading range (max.): 600 A

Dim: (L x W x H) 44 x 224 x 97 mm

Current reading: AC/DC
AC
DC

Reading category: CAT III 600 V
CAT IV 300 V

Weight: 440 g

Width: 224 mm

Height: 97 mm

Length: 44 mm

Documents & Downloads

Datasheet

Datasheet 2135996 Chauvin Arnoux PAC 15 Clamp meter adapter A/AC reading range: 0.5 - 400 A A/DC reading range: 0.5 - 600 A

User & Safety Instructions

User & Safety Instructions 2135996 Chauvin Arnoux PAC 15 Clamp meter adapter A/AC reading range: 0.5 - 400 A A/DC reading range: 0.5 - 600 A

Description

The PAC range includes clamp meters that use the Hall effect to measure AC and DC currents.

Two forms are offered to allow cables with a diameter of 30 mm or 2x24 mm and small busbars to be enclosed.
The range includes the PAC1x pliers and the PAC2x pliers for higher currents.

Thanks to a micro USB socket (type B / 5V DC) these new models can now be supplied with power via an external standard source. In the event of a power failure, an internal 9V battery supplies the power.
