Chauvin Arnoux PEL 104 Network diagnostics 3-phase Data logger

The PEL104 power data logger measures and stores all important data for an exact analysis of energy consumption. The PEL104 can be installed and used without power interruption.

Ergonomics

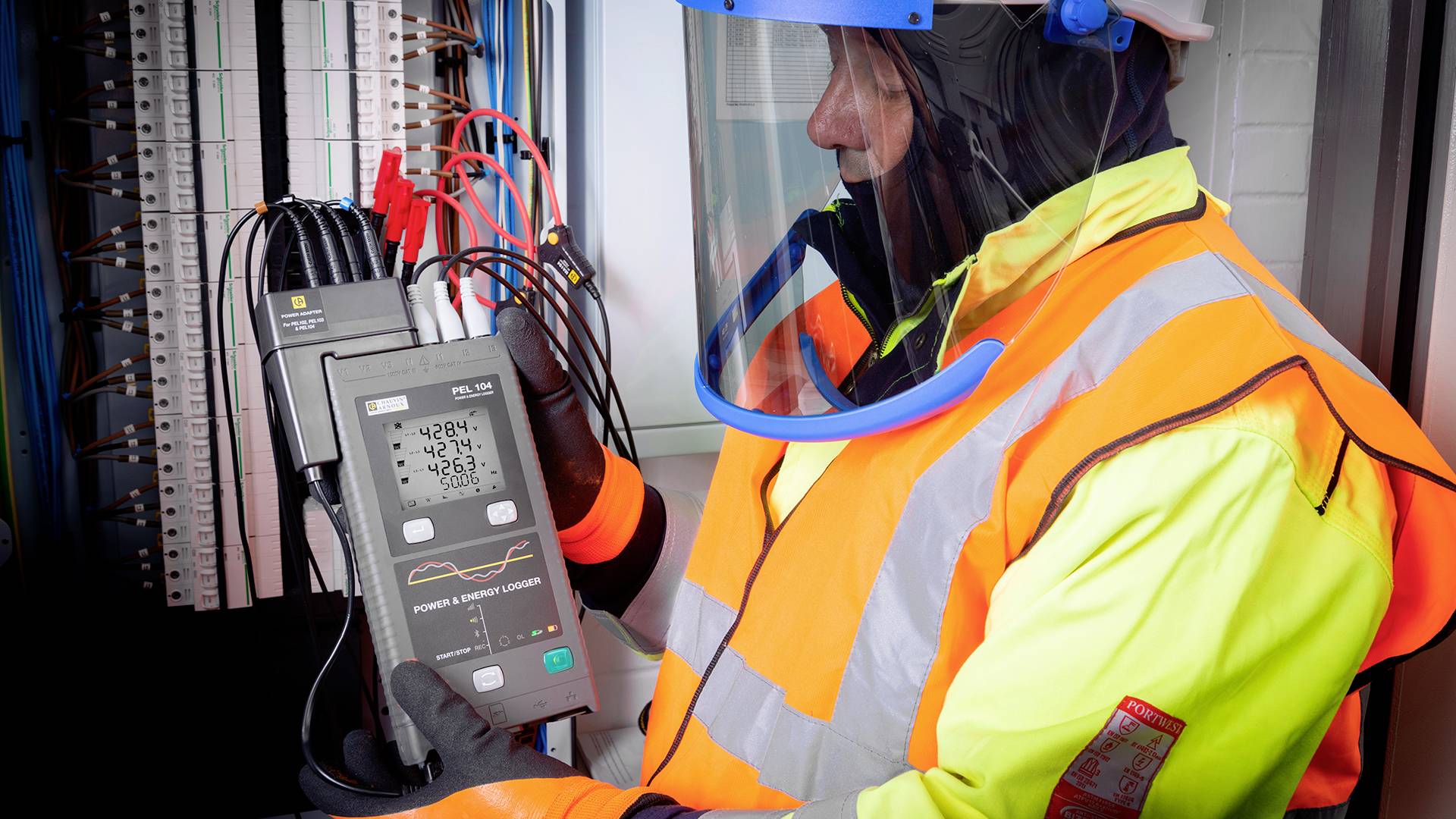

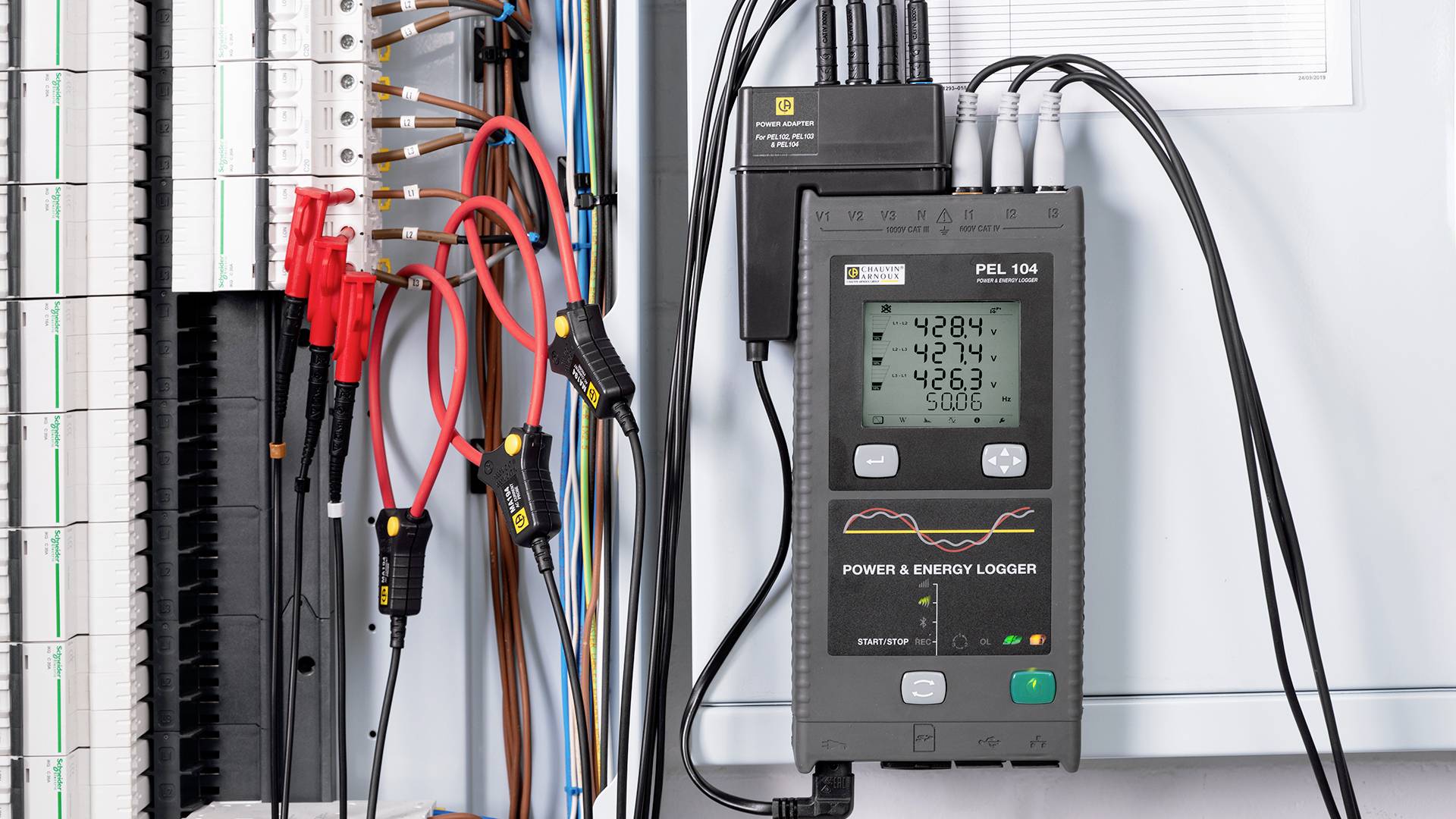

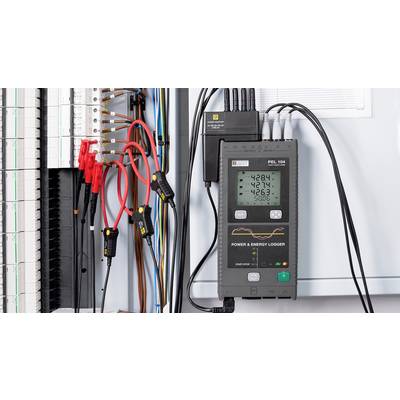

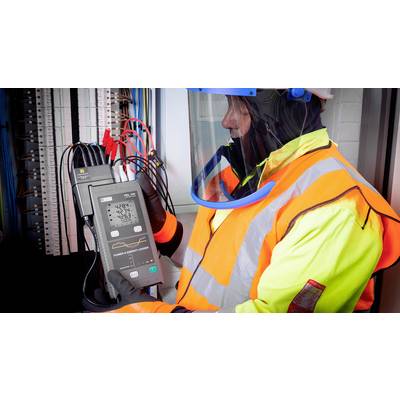

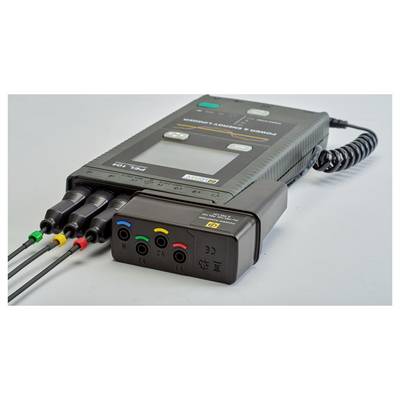

As a portable, robust and compact device with magnetic holder, the PEL104 can be easily installed, such as in a control cabinet. The recorder has 3 inputs for voltage and 3 inputs for current. No more problems with batteries or rechargeable batteries, as the device is supplied with power via the phase with the supplied accessory.

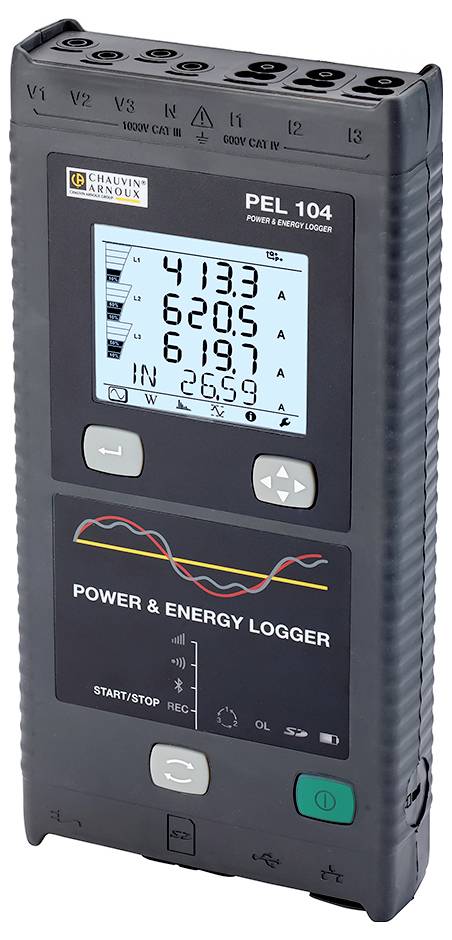

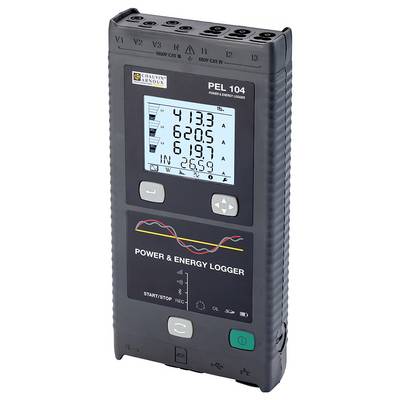

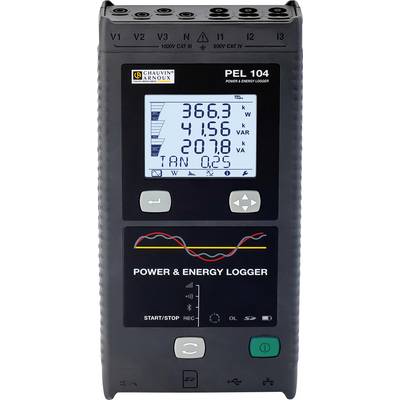

Its illuminated LC display shows three measured values digitally and is easy to read.

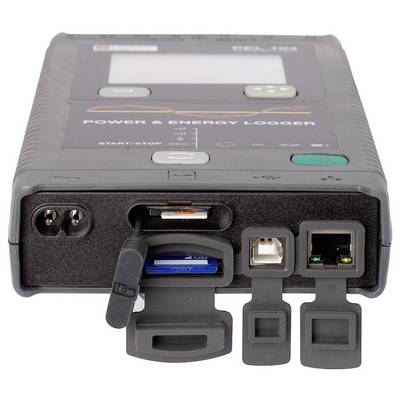

The PEL 104 is equipped with an SD memory card, in which the measured data can be stored for several years — an ideal function for longer measurement campaigns.

Measurements
The PEL104 is suitable for all network types and automatically detects the connected sensors. It measures voltages up to 1000 VAC/DC and currents up to 10 kVAC/5 kVDC. Due to the large measurement range, it can record power up to 10 GW/GVAR/GVA and energy up to 4 EWH/EVAh/Evarh.
It also has an alarm mode. The user can enter alarm thresholds and a list of alarm events is created.

Extremely well networked

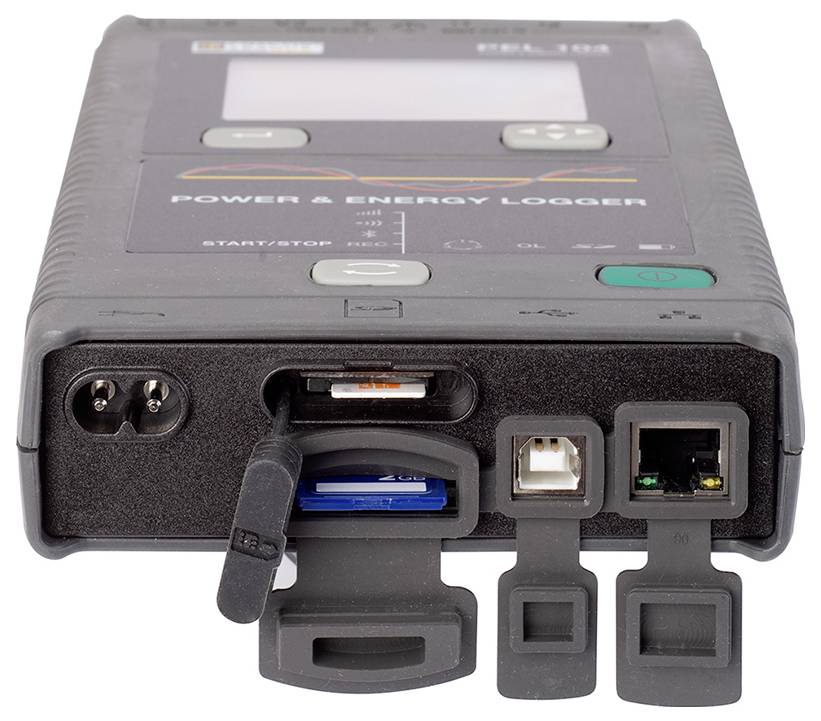

The PEL104 has a variety of communication options: USB, Ethernet, Bluetooth, WiFi and 3G/GPRS.
With the new 3G/GPRS procedure, the user can insert a SIM card into his PEL recorder and thus communicate with him wirelessly via a GSM/3G connection. Since measurement campaigns often extend over several days or weeks, it is possible to check the correct functioning of the PEL recorder.
These methods enable the measurements to be tracked in real time and the measured data to be transmitted worldwide.
In the event of an alarm, the user can have an e-mail sent automatically.

Android
On-site, an Android app can control the PEL's function and change its settings. This function is practical for measuring electrical drives, for example, to measure the speed, torque and efficiency. No more special sensors are needed to monitor the behavior of E-drives in real time.

Software
With the software PEL Transfer the data stored in the PEL100 recorders can be analyzed without any problem. The software can automatically detect energy losses through the various performance measurement campaigns.
Novelty: The software directly calculates the cost of the energy consumed and displays it in the local currency selected.
THE DATAVIEW software platform can automatically generate reports. The user can enter alarm limits for the various measured values and thus receive individualized measurement reports.

This text is machine translated.
