Chieftec APB-600B8 PC power supply unit 600 W ATX 80 PLUS
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
600 W
Modular
No
Certification
80 PLUS
Form factor
ATX

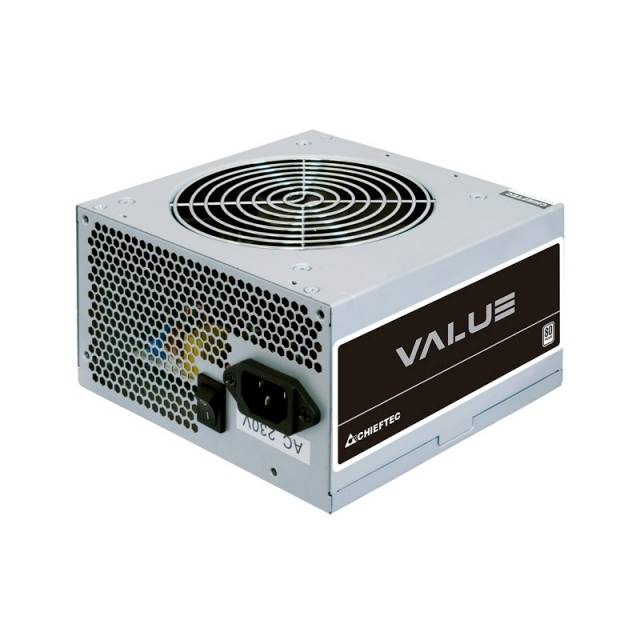

Chieftec APB-600B8 PC power supply unit
Highlights & Details
- Power supply unit output 600 W
- PCI-Express (6+2-Pin) 2x
- Cable management No
- 80 PLUS
Technical specifications
- Product type
PC power supply unit
- PSU output power
600 W
- Modular
No
- Certification
80 PLUS
- Form factor
ATX
- Factory colour
Steel
- Dim
(W x H x D) 150 x 87 x 140 mm
- Depth
140 mm
- Height
87 mm
- Width
150 mm
- Weight
1.42 kg
- -12V / DC
0.3 A
- +12 V/DC (1)
46 A
- 5 V DC
20 A
- 20+4-pin.
2
- 6-pin PCIe
2
- Power rating
501 - 750 W
- Design height
87 mm
- Cooling
Active
- Fan size
120 mm
- 3.3V DC
20 A
- Power supply (details)
200 - 240 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2937347 Chieftec APB-600B8 PC power supply unit 600 W ATX 80 PLUS
Description
Features
- Total power 600 W.
- AC input voltage 200 - 240 V
- Peak current 600 W. Motherboard connector 20+4 pin ATX
- Power cable length of motherboard 55 cm
- SATA-power cable length 150.500 mm Purpose: PC
- Power Supply Unit (PSU) Form Factor: ATX
- 80 Plus Certification 80 PLUS Product color: Steel
- Cooling: Active
- Fan diameter 12 cm Width 150 mm
- Depth: 140 mm
- Height: 87 mm
- This text is machine translated.
