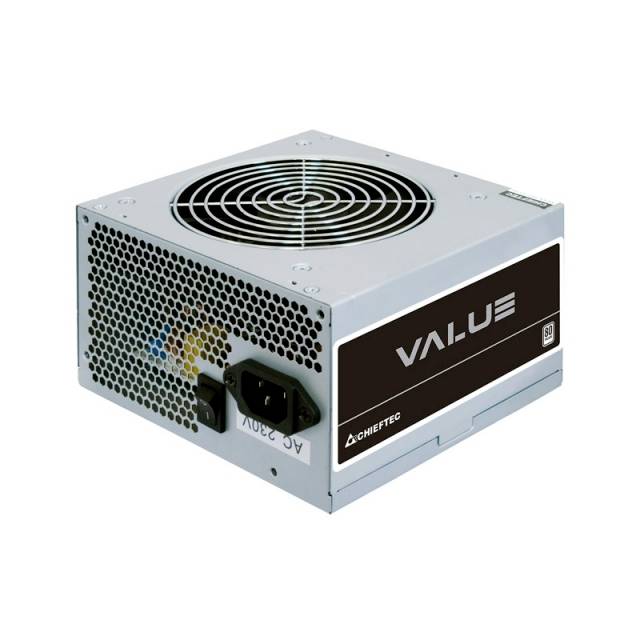

Chieftec APB-700B8 PC power supply unit 700 W ATX 80 PLUS
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
700 W
Modular
No
Certification
80 PLUS
Form factor
ATX
Highlights & Details
Chieftec APB-700B8 PC power supply unit
- Power supply unit output 700 W
- PCI-Express (6+2-Pin) 2x
- Cable management No
- 80 PLUS
Technical specifications
- Product type
PC power supply unit
- PSU output power
700 W
- Modular
No
- Certification
80 PLUS
- Form factor
ATX
- Factory colour
Silver
- Dim
(W x H x D) 150 x 87 x 140 mm
- Depth
140 mm
- Height
87 mm
- Width
150 mm
- Weight
1.42 kg
- +12 V/DC (1)
54 A
- 5 V DC
22 A
- 20+4-pin.
2
- 6-pin PCIe
2
- Power rating
501 - 750 W
- Design height
87 mm
- Cooling
Active
- Fan size
120 mm
- 3.3V DC
22 A
- Power supply (details)
200 - 240 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2937346 Chieftec APB-700B8 PC power supply unit 700 W ATX 80 PLUS
Description
The new VALUE SERIES offers quality and efficiency with 80 PLUS® 230V EU certification at an affordable price. Equipped with a large number of necessary connectors, long native cables and a whisper-quiet thermally controlled fan. The power supply offers under full load REAL Power and is fitted with all necessary safety functions and is certified by CE, CB, EAC and TÜV!
This text is machine translated.
This text is machine translated.
Features
- Total power 700 W.
- AC input voltage 200 - 240 V
- AC input frequency 47 - 63 Hz Motherboard connector plug 20+4 pin ATX
- Power cable length of motherboard 55 cm
- SATA-power cable length 150.550 mm Purpose: PC / Server
- Power Supply Unit (PSU) Form Factor: ATX
- 80 Plus Certification 80 PLUS Product color: Silver
- Cooling: Active
- Fan diameter 12 cm Width 150 mm
- Depth: 140 mm
- Height: 87 mm
