Name: Chieftec ATMOS Series CPX-7 PC power supply unit 750 W ATX 80 PLUS Gold
Brand: Chieftec
SKU: 3207100

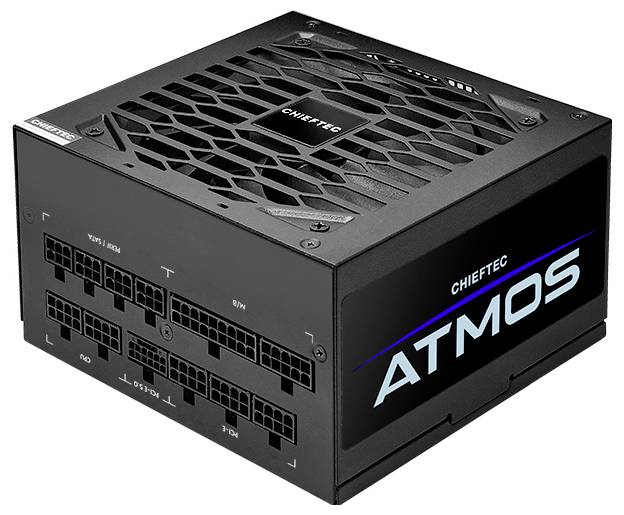

A black Chieftec ATX power supply with modular connections and a fan grille on the top.

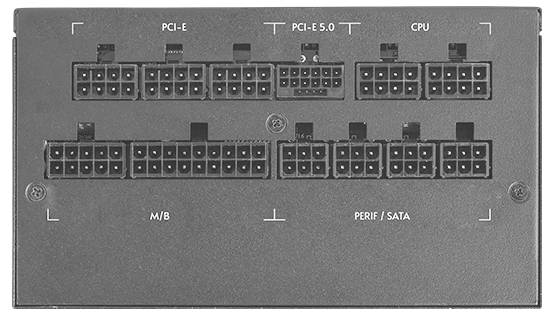

Back of a power supply with multiple connectors: PCIe, PCIe 5.0, CPU, M/B, PERIF/SATA. Cable connection text markings.

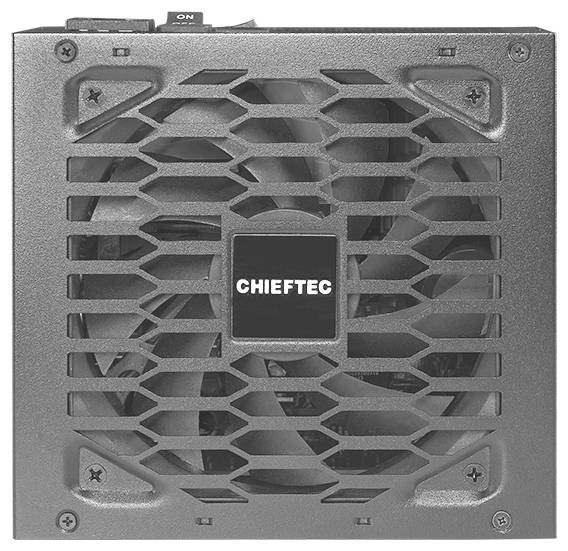

The image shows a computer power supply viewed from above, featuring a large ventilation grille and the 'CHIEFTEC' label in the centre.

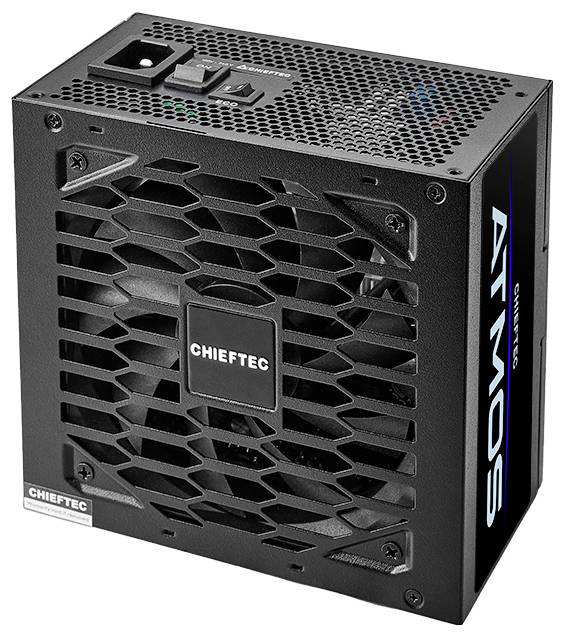

A black Chieftec ATX power supply with an integrated fan and switch, suitable for use in desktop computers.

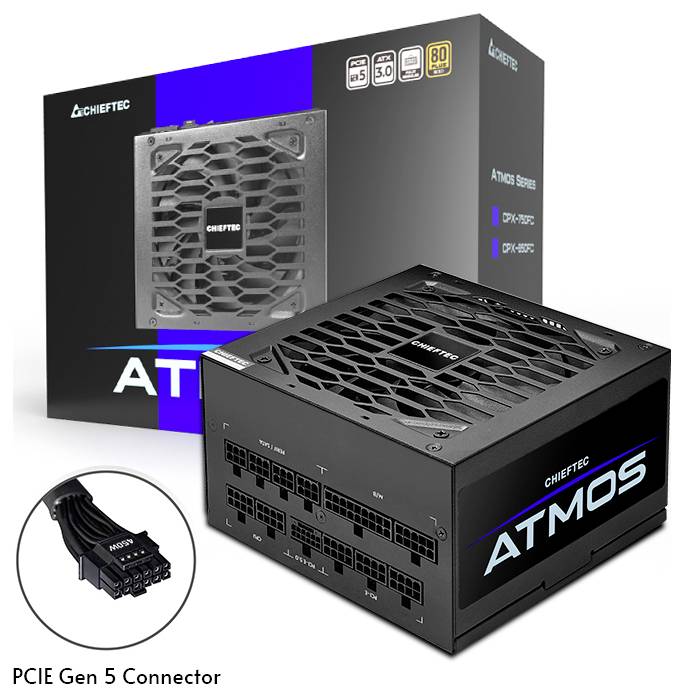

Pictured is a Chieftec power supply from the 'ATMOS' series with a PCIe Gen 5 connection, positioned in front of packaging with a similar design.

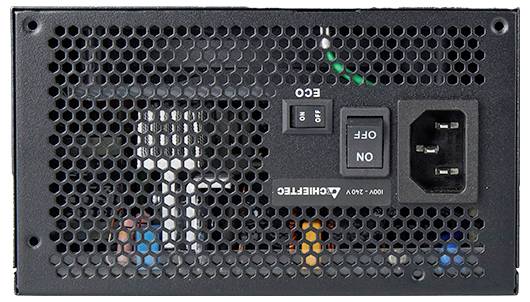

Computer power supply with ventilation grille, on/off switch, and connection socket.

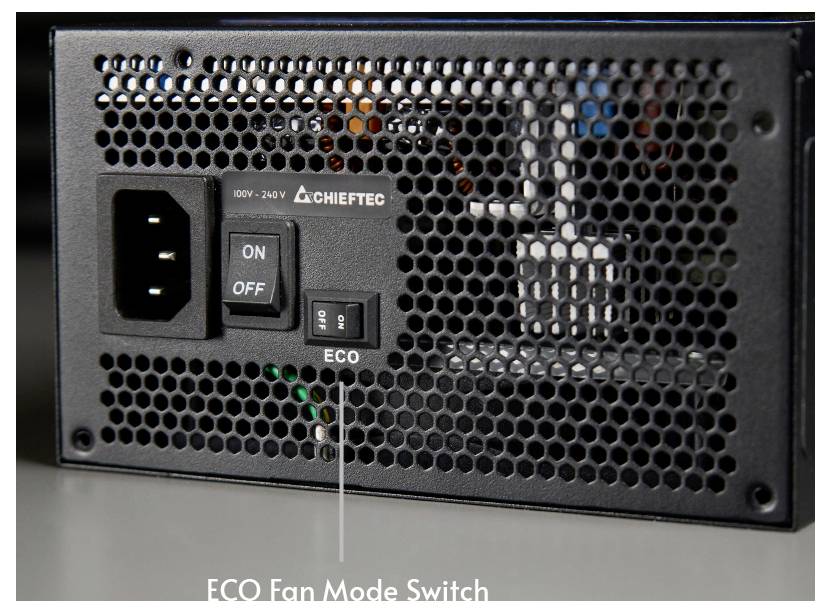

The image shows the back of a power supply with an 'ECO' mode switch, a power switch, and a socket.

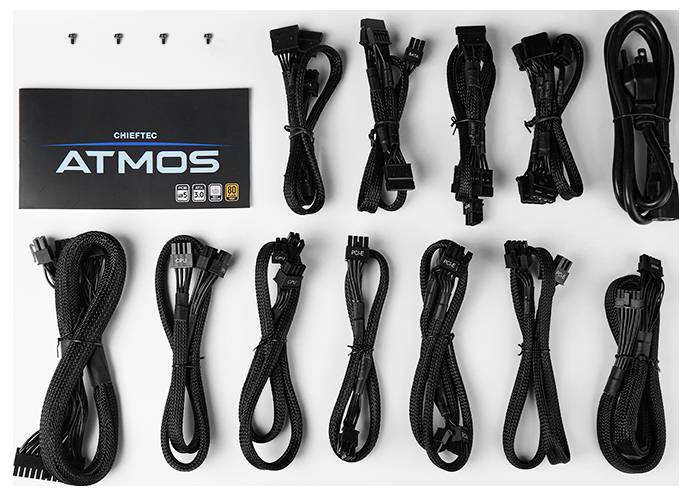

Several black cables and screws are lying next to a package printed with 'Chieftec Atmos' on a white surface.

1/8

Product type

PC power supply unit

PSU output power

750 W

Modular

Yes

Certification

80 PLUS Gold

Form factor

ATX

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Chieftec ATMOS Series CPX-7 PC power supply unit

Power supply unit output 750 W
PCI-Express (6+2-Pin) 2x
Cable management Yes
80 PLUS Gold

Technical specifications

Product type: PC power supply unit

PSU output power: 750 W

Modular: Yes

Certification: 80 PLUS Gold

Form factor: ATX

Factory colour: Black

Dim: (W x H x D) 150 x 86 x 140 mm

Depth: 140 mm

Height: 86 mm

Width: 150 mm

Weight: 1.49 kg

-12V / DC: 0.3 A

+12 V/DC (1): 62.5 A

5 V DC: 20 A

+5V / DC SB: 3 A

20+4-pin.: 1

4-pin Molex: 4

4+4 pin ATX/EPS 12V: 1

6-pin PCIe: 2

5-pin SATA: 9

Output rating > 700 W: 750 W

Power rating: 501 - 750 W

3.3V DC: 20 A

Operating voltage: 100 - 240 V

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3207100 Chieftec ATMOS Series CPX-7 PC power supply unit 750 W ATX 80 PLUS Gold

Description

Based on Intel's ATX 3.0 standard, the CHIEFTEC ATMOS series supports PCIe GEN5 with 80 PLUS® GOLD-certified efficiency and delivers exceptional performance up to 850 W. The ATMOS series has a state-of-the-art technical design, including an SRC full bridge converter with DC-to-DC technology and Japanese capacitors, to ensure longevity and stability.

The quiet 120-mm FDB-fan of the ATMOS optimizes the balance between cooling and noise development with excellent durability, while the ECO-fan mode enables a fan-less operation at low load. CHIEFTEC's wide range of safety protection technologies are designed to protect your system at all times.
