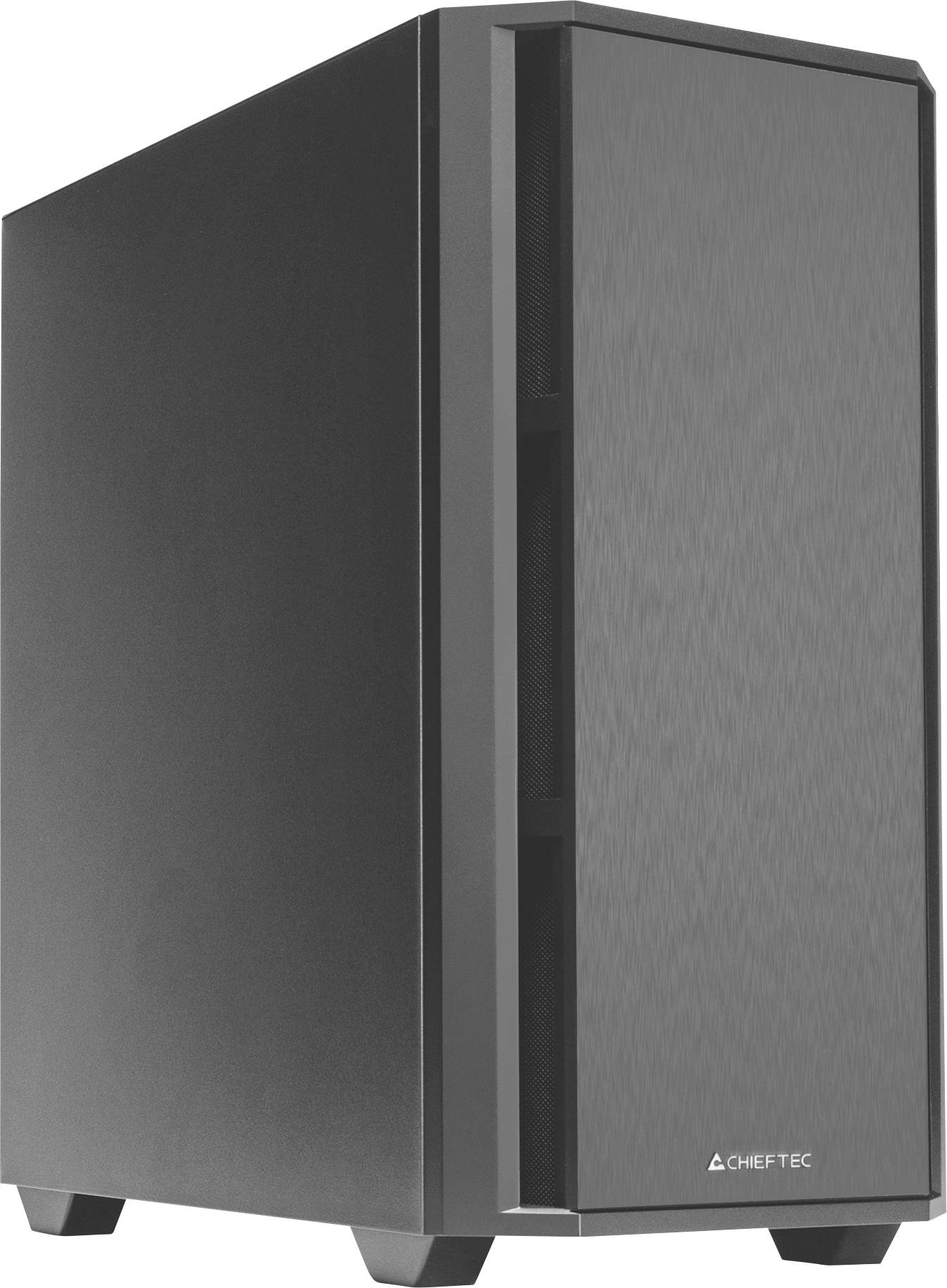

Chieftec AZ-01B-OP Mini tower PC casing Black
EAN:
Part number:
Item no:

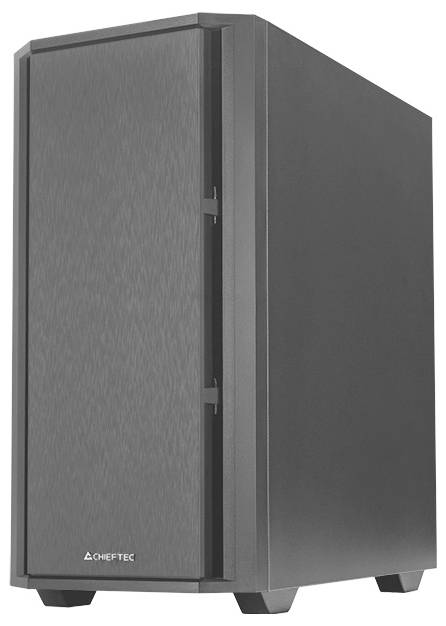

Chieftec AZ-01B-OP Mini tower PC casing
Highlights & Details
- Mini Tower PC
- Micro ATX, mini ITX, uATX
- Supported hard-disk drive sizes: 2.5,3.5"
- Number of 2.5" expansion slots: 2 Number of 3.5" expansion slots: 1
- Anti dust filter
- Black
Technical specifications
- GeneralInfo.Description.Warranty info: 24 months
- Form factor:Mini Tower

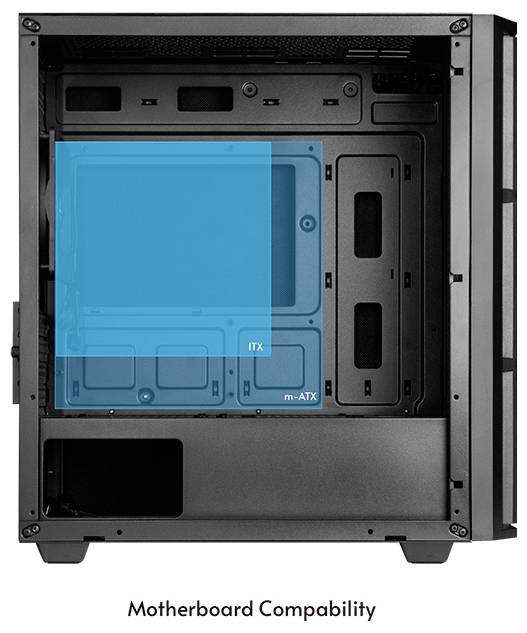

- Supported motherboards Form factors: Micro ATX, mini ITX, uATX
- Product type
PC casing
- Case type
Mini tower
- Factory colour
Black
- 8.9 cm (3.5") internal slots
1
- 6.4cm (2.5 ") external shafts
2
- Width
212 mm
- Height
420 mm
- Depth
360 mm
- Weight
5.15 kg
- Form factor
Micro-ATX
- Wireless charging
No
- Dim
(W x H x D) 212 x 420 x 360 mm
- No. of USB A 2.0 ports
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
1 x
- Keyboard layout
German, QWERTZ
- Type
PC
- UKCA
yes
- Illumination
no
- Material thickness
0.6 mm
- On/off button
yes
- Tempered glass panel(s)
no
- USB Type-C ports quantity
1
- Reset button
yes
- Full-Height expansion slots
4
- Anti-dust filter
yes
- Package weight
6 kg

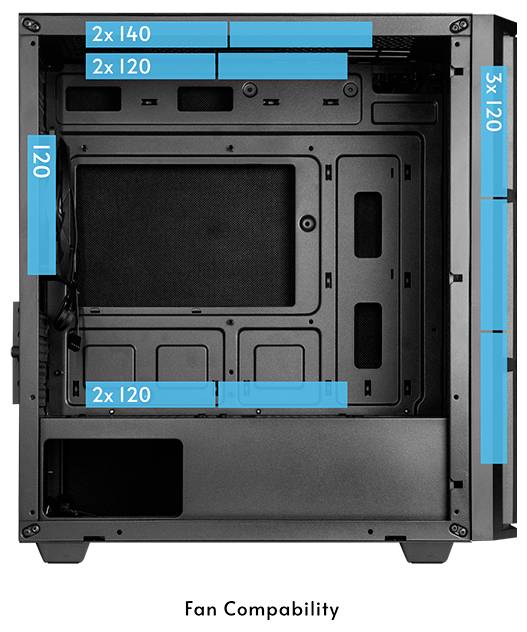

- Number of front fans supported (max)
3
- Number of rear fans supported (max)
1
- Number of top fans supported (max)
2
- Power supply included
no
- Side window
no
- Number of internal 3.5" bays
1
- Maximum CPU cooler height
16.5 cm
- Maximum graphics card length
33 cm
- Number of expansion slots
4

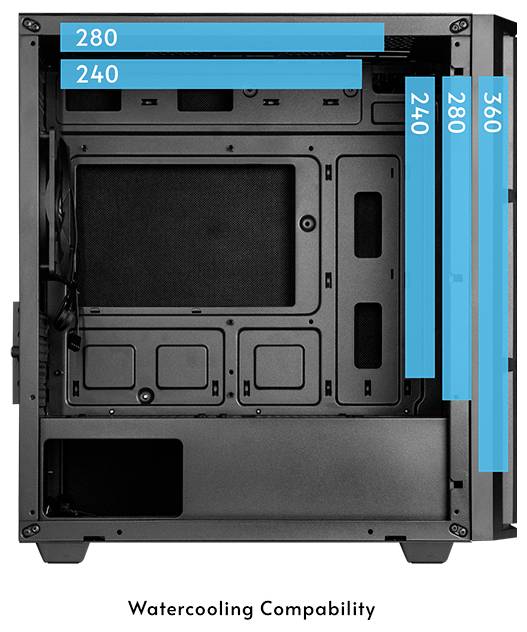

- Liquid cooling capability
yes
- Maximum PSU length
18 cm
- Number of storage drives supported
3
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3414316 Chieftec AZ-01B-OP Mini tower PC casing Black
Description

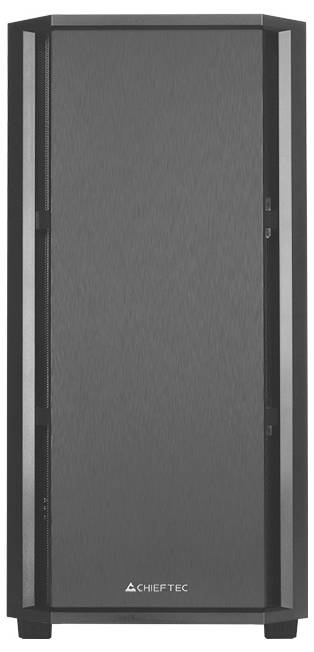

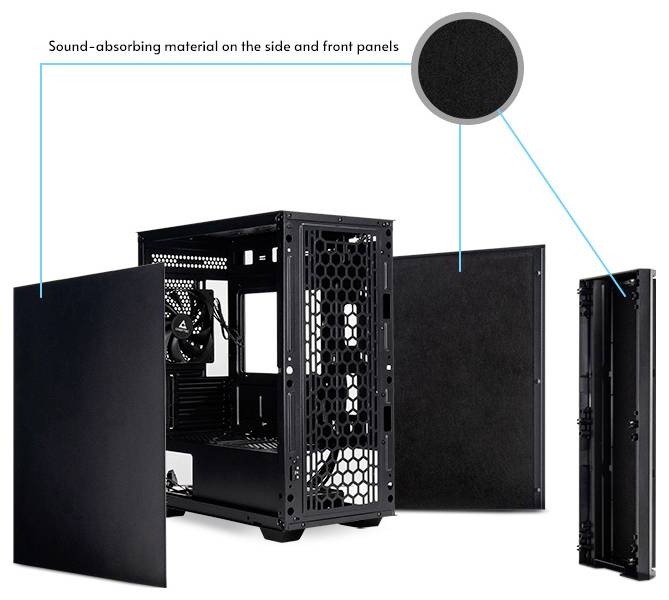

The CHIEFTEC Pro Mini presents a modern m-ATX mini-tower PC housing with a timeless elegant, brushed front panel, supplemented by an interior with a modern layout for optimal hardware and cooling compatibility. The CHIEFTEC Pro Mini has additional sound absorbing material on the side and front panels to offer an optimum noise level, while a total of 8 possible fan mounting points enable flexible cooling configurations. The Pro Mini is available to provide customers with an ideal combination of performance, noise level and high quality design.
This text is machine translated.
This text is machine translated.
Features
- Elegant, modern design
- Sound insulation material
- 1x 120mm PWM fan pre-installed
