Name: Chieftec BPX-750-C PC power supply unit 750 W ATX 80 PLUS Bronze
Brand: Chieftec
SKU: 3439003

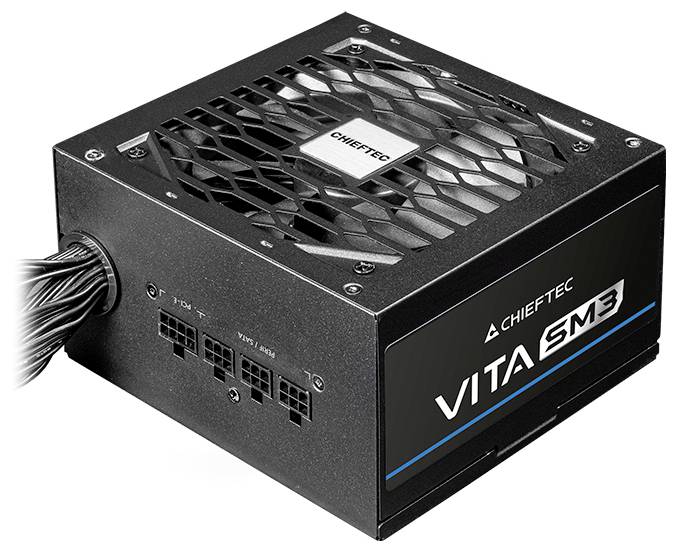

'A black Chietec VITA SM3 power supply with side vents and cable connectors is displayed, designed for computer integration and efficiency.'

Product type

PC power supply unit

PSU output power

750 W

Modular

Yes

Certification

80 PLUS Bronze

Form factor

ATX

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Chieftec BPX-750-C PC power supply unit

Power supply unit output 750 W
PCI-Express (6+2-Pin) 4x
Cable management Yes
80 PLUS Bronze

Technical specifications

Compatibility Power supply: PC/Server
1 x power supply: ATX, 24-pin ¦ 2 x power 8-pin EPS12V with detachable 4-pin ATX12V range ¦ 4 x 2 x 8-pin PCI Express plug with detachable 2-pin range ¦ 6 x 15-pin SATA power plug ¦ 3 x internal power supply, 4-pin ¦ 1 x 12VHPWR
Output voltage +3.3, +5, ±12 V, +5Vsb V
Colour category: Black
Form factor (power supply unit): Internal
Cooling system 120-mm fans
Specification compliance: ATX12V 3.1/ EPS12V

Product type: PC power supply unit

PSU output power: 750 W

Modular: Yes

Certification: 80 PLUS Bronze

Form factor: ATX

Factory colour: Black

Dim: (W x H x D) 15 x 8.6 x 14 cm

Depth: 14 cm

Height: 8.6 cm

Width: 15 cm

Weight: 1.9 kg

-12V / DC: 0.3 A

+12 V/DC (1): 62.5 A

5 V DC: 18 A

+5V / DC SB: 3 A

24-pin: 1

4-pin Molex: 3

4+4 pin ATX/EPS 12V: 2

6-pin PCIe: 4

Features: ATX 3.1

Power rating: 501 - 750 W

Cable length: 0 cm

Keyboard layout: German, QWERTZ

3.3V DC: 18 A

Operating voltage: 100 - 240 V

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3439003 Chieftec BPX-750-C PC power supply unit 750 W ATX 80 PLUS Bronze

Description

The Chieftec VITA SM3 BPX-750-C is a power supply designed for performance and efficiency. With a total power of 750 W it covers a broad power requirement and at the same time fulfills the latest standards like ATX12V 3.1 and EPS12V. This power supply unit is available with several connectors, including a 24-pin ATX-connector, various modular cables for flexibility and an efficient cooling system with a 120-mm fan, which provides for an effective air circulation even with high power requirements.Security is ensured by several protection functions like over-current protection, over-voltage protection and short-circuit protection. Moreover, the semi-modular cable management enables a clear arrangement of the components, which reduces mess and improves the air circulation in the casing. With its 80 PLUS Bronze certification, the Chieftec VITA SM3 ensures high performance and energy efficiency, helping to minimize power consumption without compromising reliability.

This text is machine translated.
