Chieftec Chieftec Geh Visio GM-30W-TG-OP weiß Tem Game console casing White
EAN:
Part number:
Item no:
Highlights & Details
Chieftec Chieftec Geh Visio GM-30W-TG-OP weiß Tem Game console casing
- Cube PC gaming
- ATX, micro ATX, mini ITX
- Supported hard-disk drive sizes: 2.5,3.5" HDD/SSD Combo-casing
- Number of 2.5" expansion slots: 2 Number of 3.5" expansion slots: 2
- Side window lighting Multi Hardened glass panel(s) anti-dust filter
- White
Technical specifications
- Form factor: Cube
- Supported motherboards Form factors: ATX,micro ATX,Mini-ITX
- Suitable for: Gaming
- Product type
Game console casing
- Factory colour
White
- 8.9 cm (3.5") internal slots
2
- 6.4cm (2.5 ") external shafts
2
- Width
295 mm
- Height
390 mm
- Depth
430 mm
- Weight
7.3 kg
- Form factor
ATX
- Wireless charging
No
- Dim
(W x H x D) 295 x 390 x 430 mm

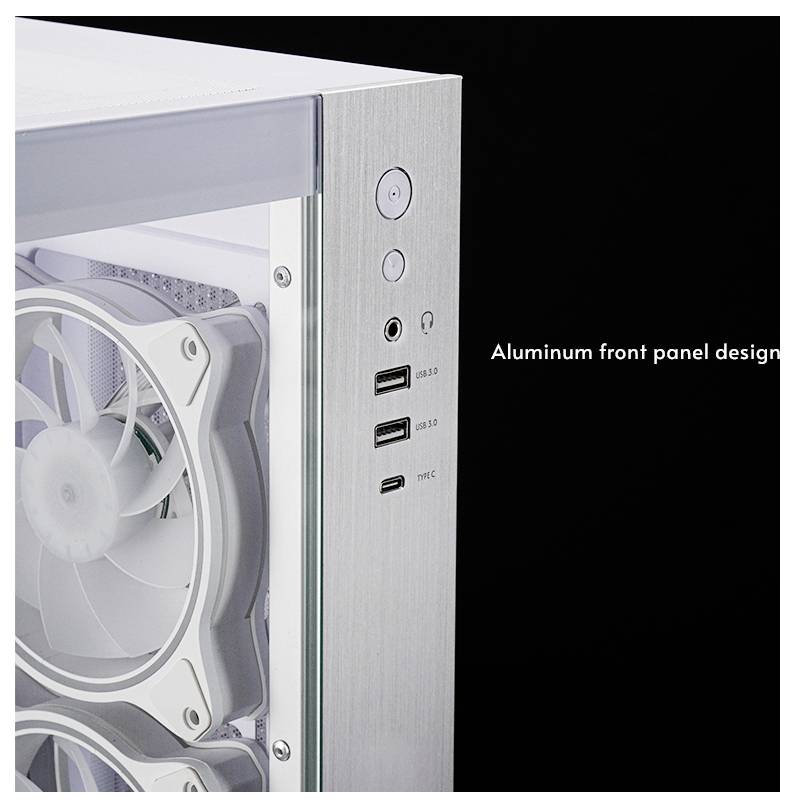

- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- No. of USB type A 3.1 / 3.2 1st Gen
2 x
- Type
PC
- UKCA
yes
- Illumination
yes
- HDD/SSD combo cage
yes
- Fan speed control
yes
- Cable management
yes
- Tempered glass panel(s)
yes
- Full-Height expansion slots
6

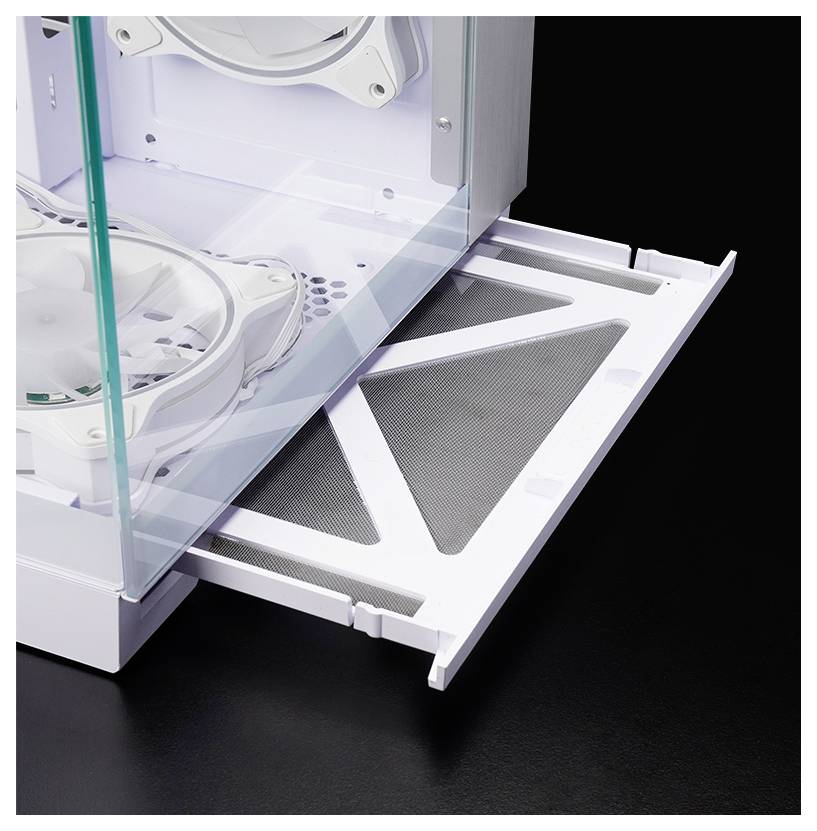

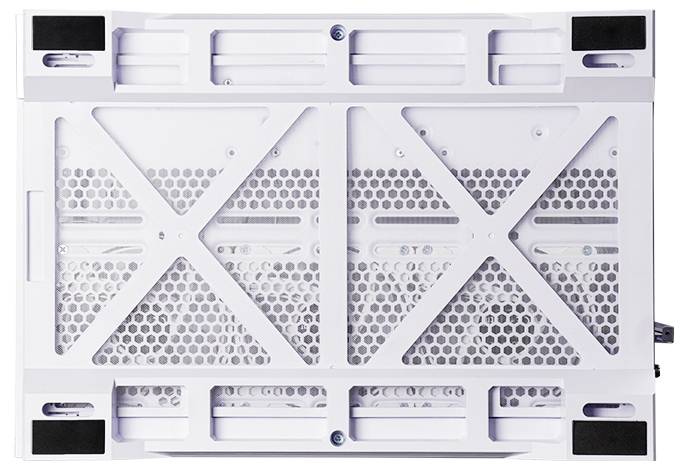

- Anti-dust filter
yes
- Power supply included
no
- Side window
yes
- Number of internal 3.5" bays
2
- Maximum CPU cooler height
17.5 cm
- Maximum graphics card length
41 cm

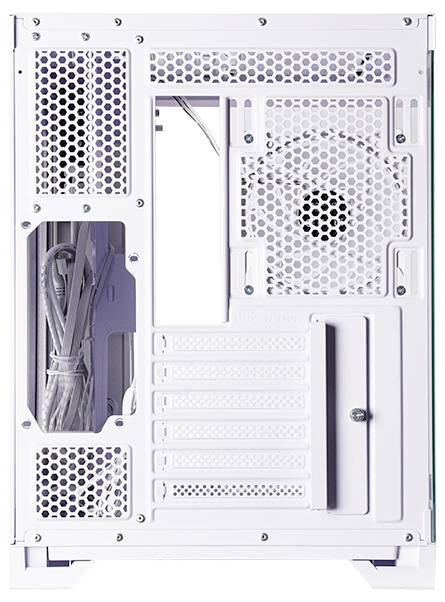

- Number of expansion slots
6
- Liquid cooling capability
yes
- Maximum PSU length
20 cm
- Combo headphone/mic port
yes
- Number of storage drives supported
4
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3756380 Chieftec Chieftec Geh Visio GM-30W-TG-OP weiß Tem Game console casing White
Description

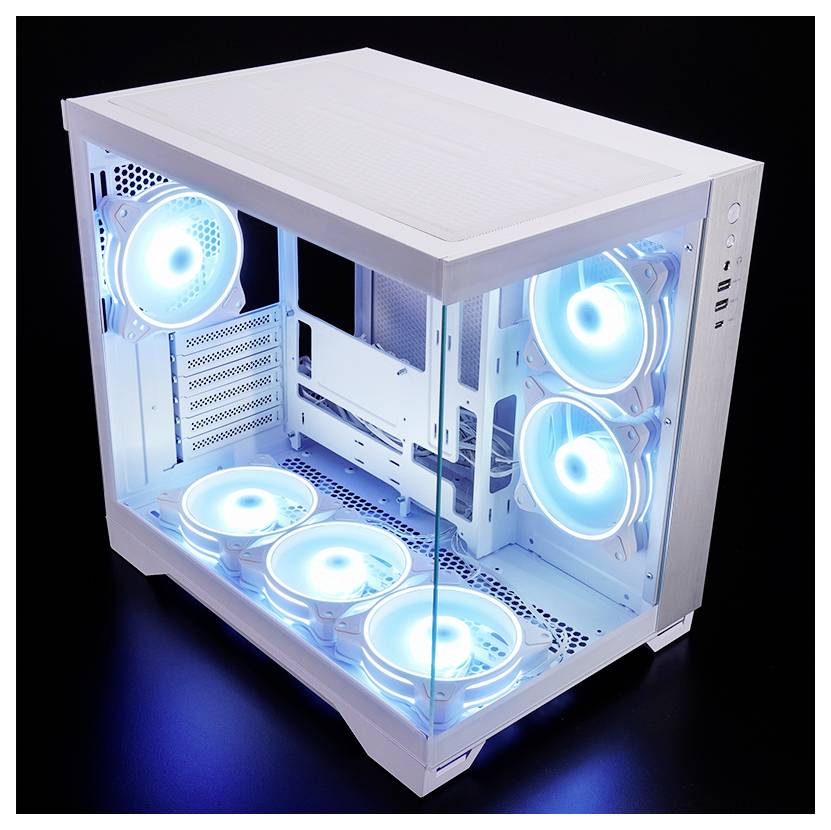

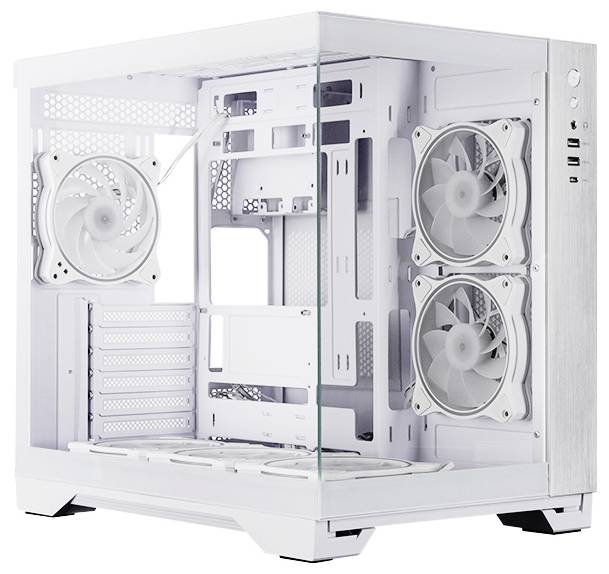

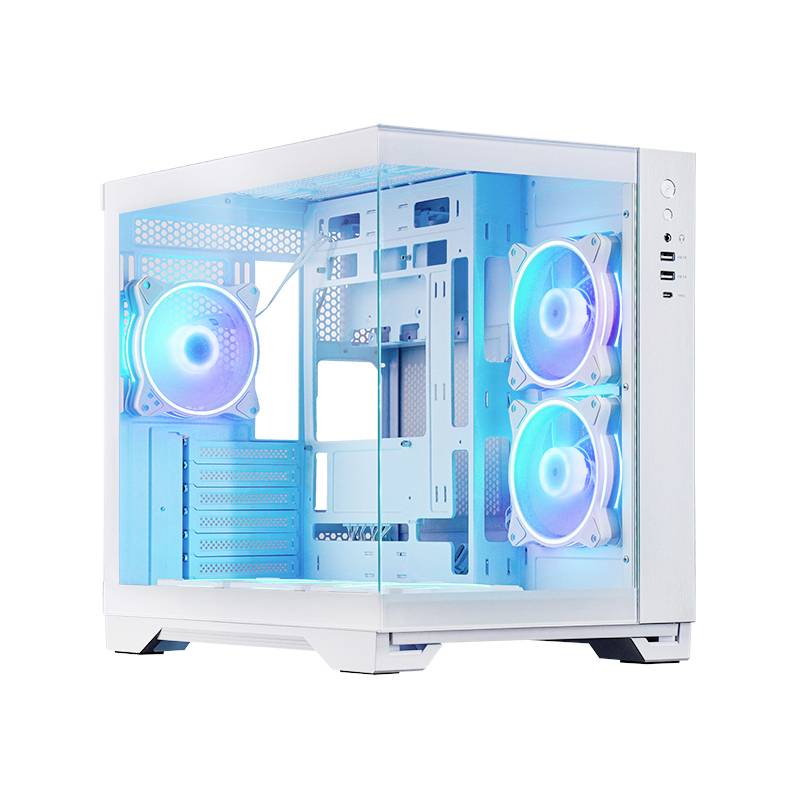

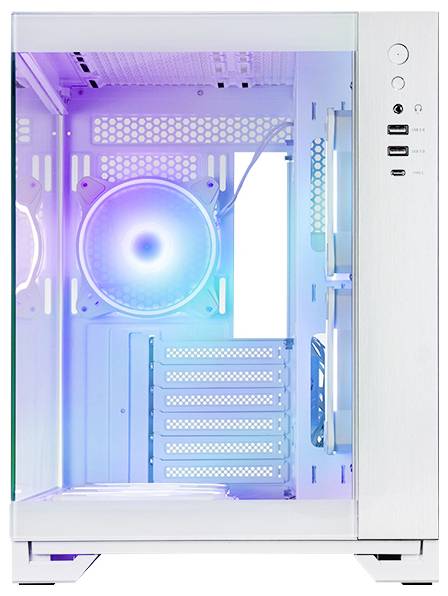

The CHIEFTEC Visio White features hardened glass panels on both sides and front panel, and incorporates a two-chamber design that supports the latest back-connect motherboards (compatible with Asus BTF and MSI project zero). This design optimizes the cable management for a clean inner view and unrestricted air flow.

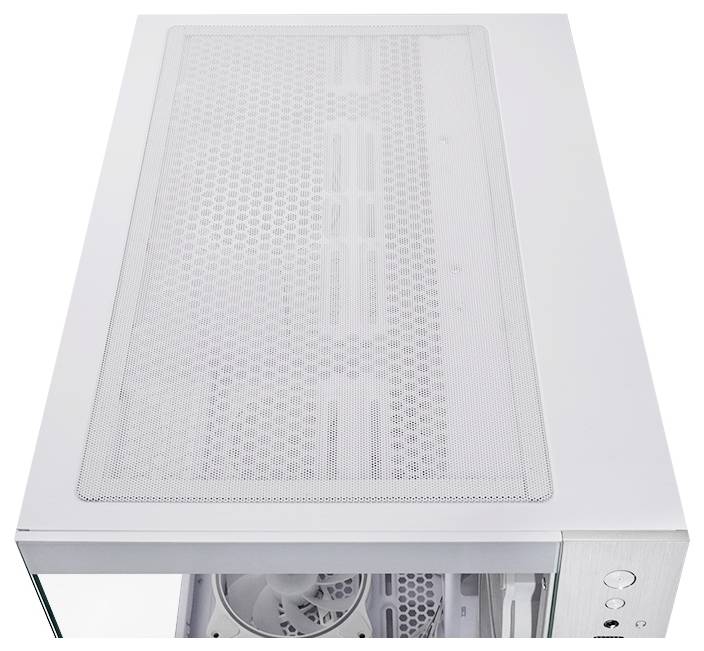

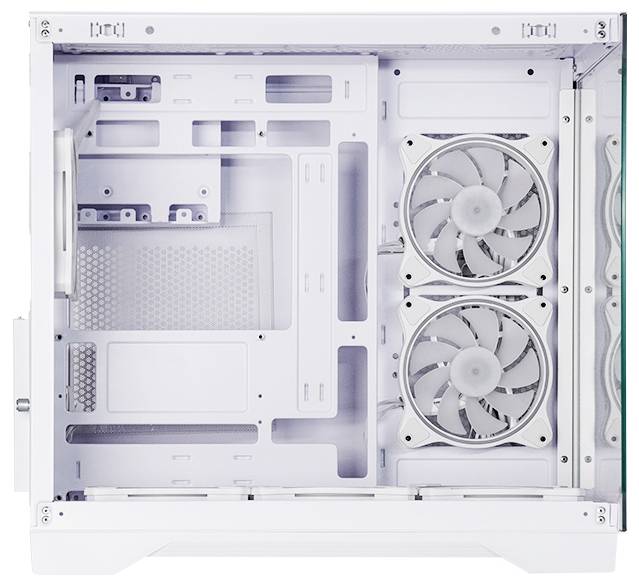

The well thought-out interior layout allows the mounting of 360-mm radiators on the top and bottom, 240-mm radiators on the motherboard side and CPU Tower coolers up to a height of 175 mm. High-quality GPUs up to 410 mm can be easily accommodated thanks to the generous and well-ventilated configuration.

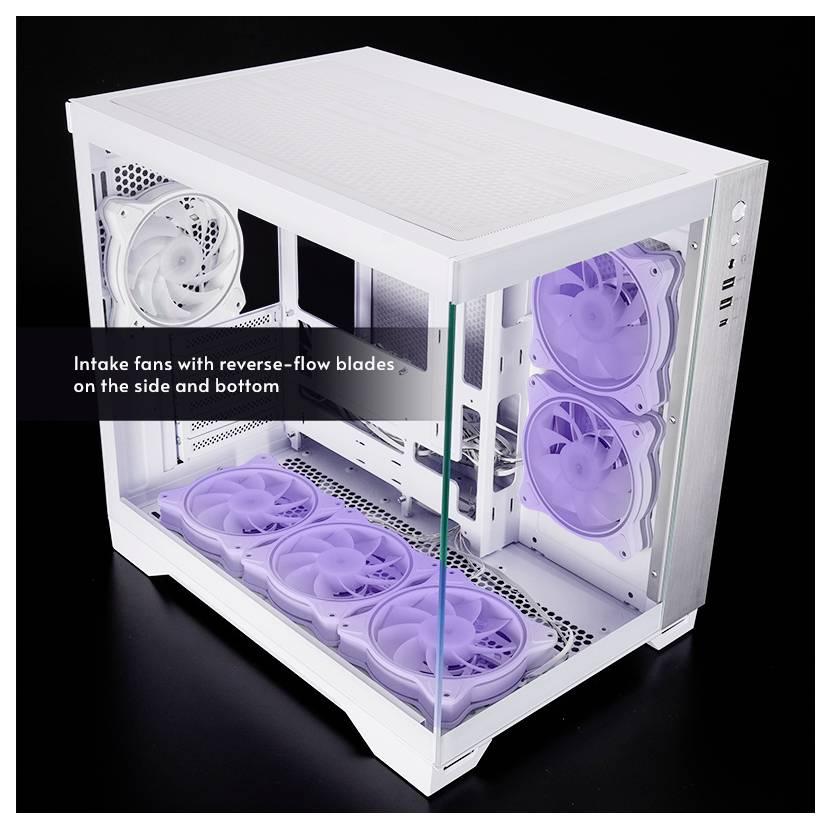

The chassis comes with six pre-installed 120 mm A RGB fans and a control hub for synchronizing A-RGB and PWM fan speed via the motherboard. Five of these fans are equipped with inverted air-flow fan blades to achieve the optimum
To allow feeding on the sides and on the ground without affecting the aesthetics. Developed with a view on gamers, the CHIEFTEC Visio offers the possibility to design a unique system.
This text is machine translated.
The well thought-out interior layout allows the mounting of 360-mm radiators on the top and bottom, 240-mm radiators on the motherboard side and CPU Tower coolers up to a height of 175 mm. High-quality GPUs up to 410 mm can be easily accommodated thanks to the generous and well-ventilated configuration.
The chassis comes with six pre-installed 120 mm A RGB fans and a control hub for synchronizing A-RGB and PWM fan speed via the motherboard. Five of these fans are equipped with inverted air-flow fan blades to achieve the optimum
To allow feeding on the sides and on the ground without affecting the aesthetics. Developed with a view on gamers, the CHIEFTEC Visio offers the possibility to design a unique system.
This text is machine translated.
Features
- Hardened glass front and side wall

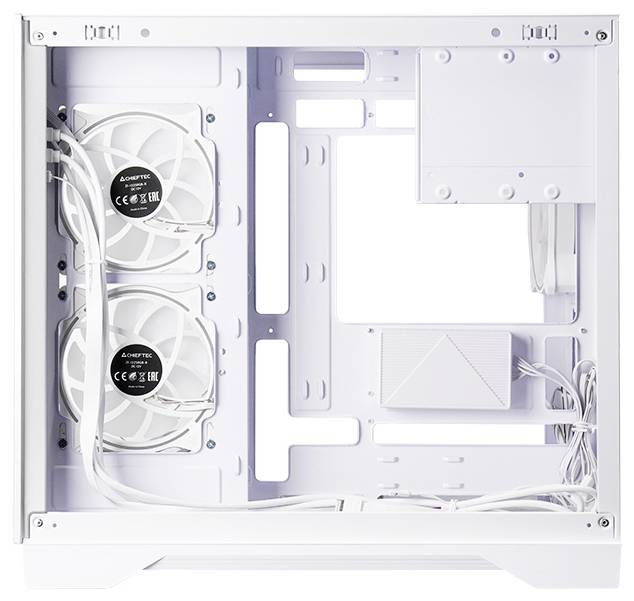

- Two-chamber design
- Compatibility with Back-Connect motherboards
- 6 x 120mm A-RGB fan pre-installed
- A-RGB control panel with M/B synchronization and
- Fan speed control
