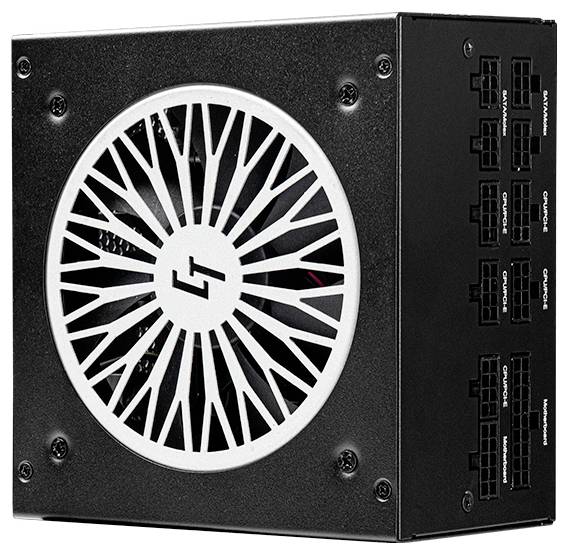

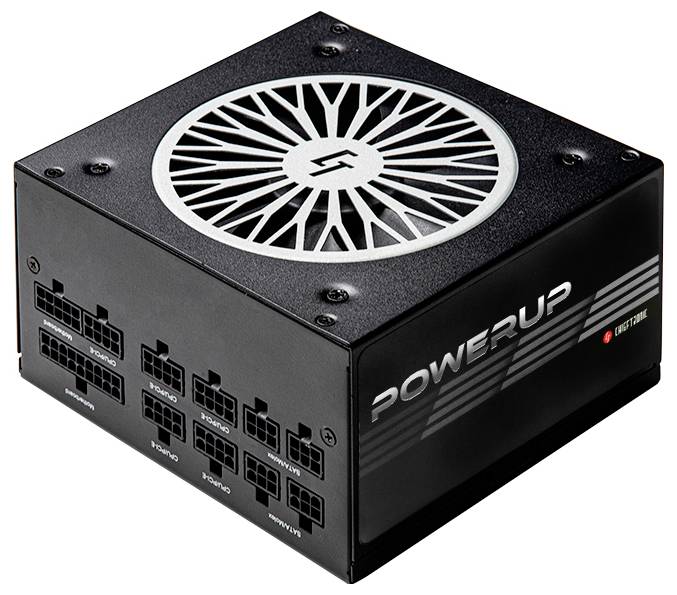

Chieftec Chieftronic PowerUp PC power supply unit 550 W ATX 80 PLUS Gold
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
550 W
Certification
80 PLUS Gold
Form factor
ATX
Factory colour
Black
Highlights & Details
Chieftec Chieftronic PowerUp PC power supply unit
- Power supply unit output 550 W
- PCI-Express (6+2-Pin) 2x
- Cable management
- 80 PLUS Gold
Technical specifications
- 80 Plus Certification 80 PLUS Gold

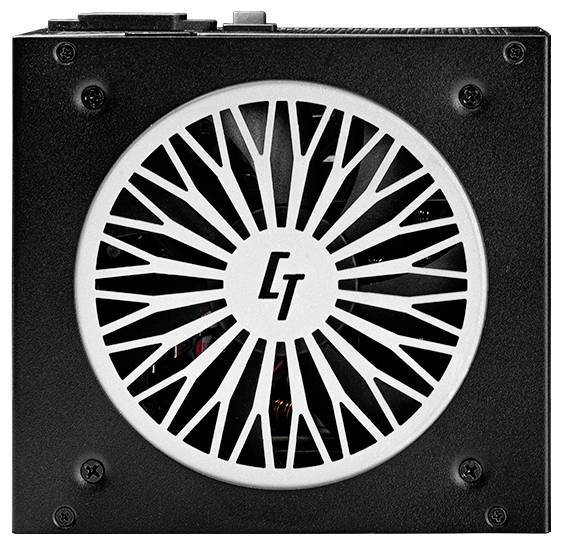

- Fan diameter 12 cm
- Number of fans: 1 fans
- Product type
PC power supply unit
- PSU output power
550 W
- Certification
80 PLUS Gold
- Form factor
ATX
- Factory colour
Black
- Dim
(W x H x D) 150 x 86 x 140 mm
- Depth
140 mm
- Height
86 mm
- Width
150 mm
- Weight
2.15 kg
- -12V / DC
0.3 A
- +12 V/DC (1)
45.5 A
- 5 V DC
20 A
- +5V / DC SB
2.5 A
- 4-pin Molex
3
- 6-pin PCIe
2
- 5-pin SATA
6
- Power rating
501 - 750 W
- Cooling
Active
- 3.3V DC
20 A
- Power supply (details)
100 - 240 V
- Operating voltage
230 V / AC
- UKCA
yes
- Motherboard power cable length
65 cm
- CPU power cable length
80 cm
- PCI Express power cable length
50 cm
- Floppy drive power connector
1
- CPU power connector (4+4 pin)
yes
- Package weight
2.7 kg
- Combined power (+3.3V)
100 W
- Combined power (+12V)
546 W
- Combined power (+5V)
100 W
- Combined power (-12V)
3.6 W
- Combined power (+5Vsb)
12.5 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3451794 Chieftec Chieftronic PowerUp PC power supply unit 550 W ATX 80 PLUS Gold
Description
With the PowerUP series, Chieftec brings the much-praised technical quality and the high performance of the PowerPlay series to the mainstream power supplies market. With modern Full-Bridge LLC and DC-to-DC technology, extremely low ripple values and a very good voltage regulation can be achieved.
With a high Power density, the PowerUp series can achieve up to 850W power in a compact power supply length of only 14 cm, and all this at a high efficiency of 80 PLUS® Gold certified. The short power supplies of the PowerUp series, in combination with the fully modular cable management, enable the installation in smaller systems, while the 650mm long cables also make the use in large tower casings problem-free.
This text is machine translated.
With a high Power density, the PowerUp series can achieve up to 850W power in a compact power supply length of only 14 cm, and all this at a high efficiency of 80 PLUS® Gold certified. The short power supplies of the PowerUp series, in combination with the fully modular cable management, enable the installation in smaller systems, while the 650mm long cables also make the use in large tower casings problem-free.
This text is machine translated.
Features
- 80 PLUS Gold® certified efficiency

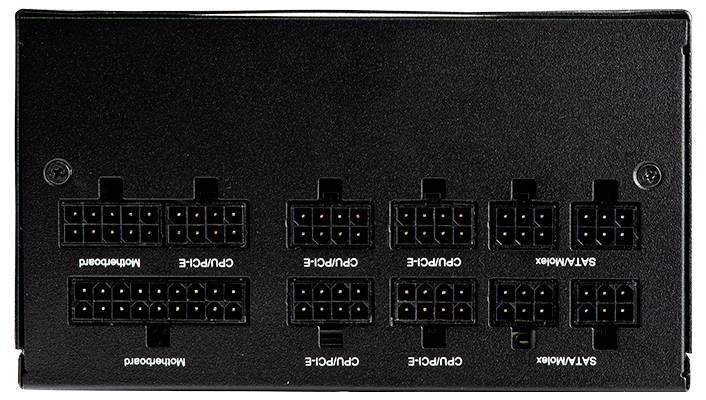

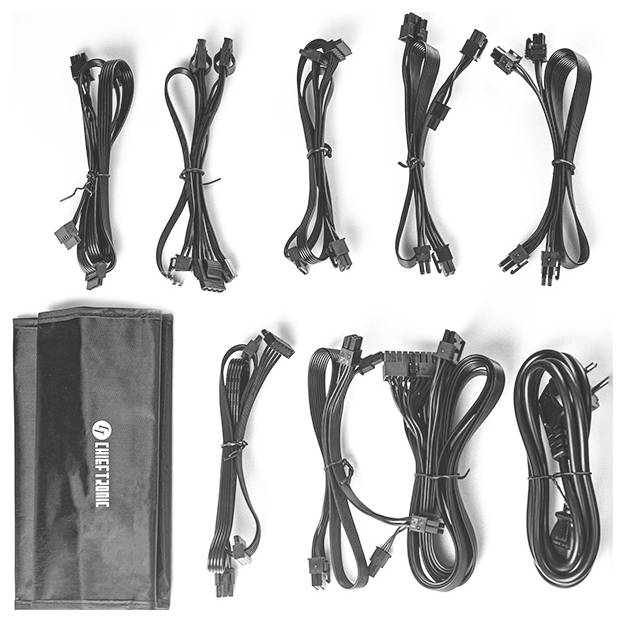

- Fully modular cable management
- Full-bridge LLC voltage transformer and DC-to-DC technology
- Low ripple values and very good voltage regulation
