Chieftec CI-03B-OP Microtower PC casing Black
EAN:
Part number:
Item no:
Highlights & Details
Chieftec CI-03B-OP Microtower PC casing
- Cube PC home office
- Micro ATX, Mini ATX
- Supported hard-disk drive sizes: 2.5,3.5"
- Number of 2.5" expansion slots: 2 Number of 3.5" expansion slots: 2

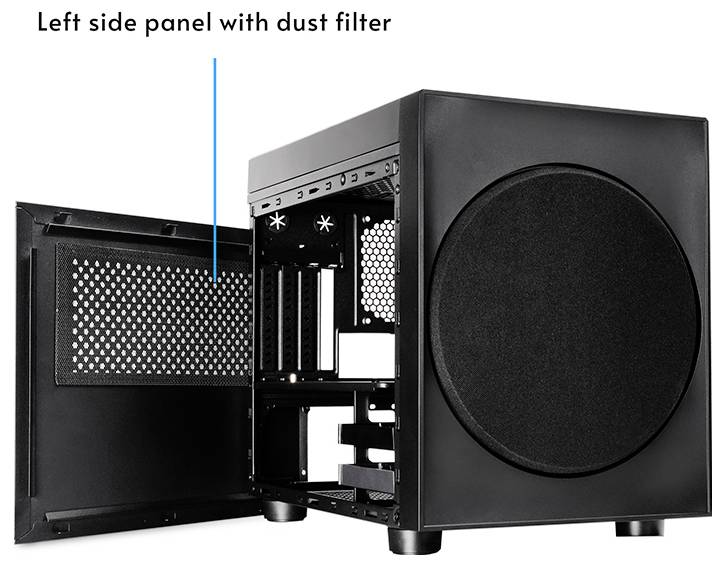

- Anti dust filter
- Black
Technical specifications
- Form factor: Cube
- Supported motherboards Form factors: Micro ATX, mini ATX
- Suitable for: Home office
- Product type
PC casing
- Case type
Microtower
- Factory colour
Black
- 8.9 cm (3.5") internal slots
2
- 6.4cm (2.5 ") external shafts
2
- Width
265 mm
- Height
355 mm
- Depth
385 mm
- Form factor
Micro-ATX
Mini-ATX
- Wireless charging
No
- Dim
(W x H x D) 265 x 355 x 385 mm
- No. of USB 3.2 2nd Gen (USB 3.1)
1 x
- Type
PC
- UKCA
yes
- Illumination
no
- Material thickness
0.6 mm
- On/off button
yes
- Tempered glass panel(s)
no

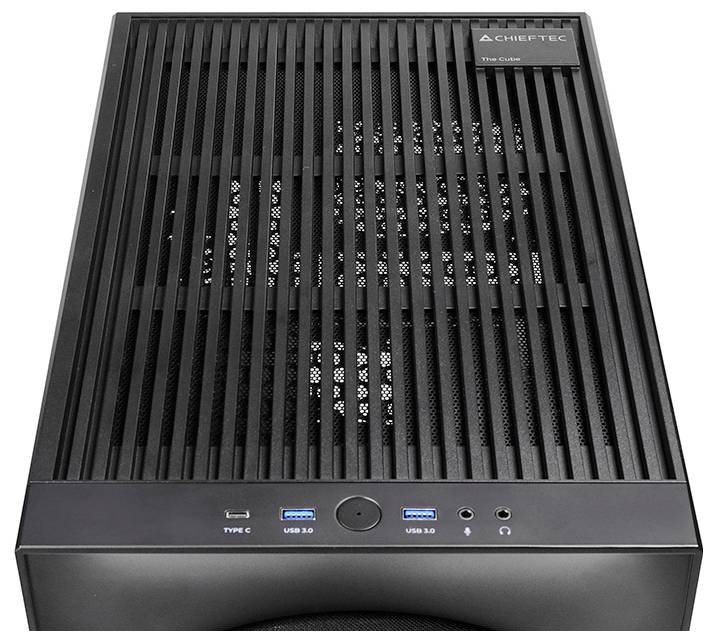

- USB Type-C ports quantity
1
- Reset button
yes
- RGB control button
no
- Anti-dust filter
yes
- Number of front fans supported (max)
1
- Number of rear fans supported (max)
1
- Number of top fans supported (max)
2
- Power supply included
no
- Side window
no
- Number of internal 3.5" bays
2
- Maximum CPU cooler height
16 cm
- Maximum graphics card length
33.5 cm

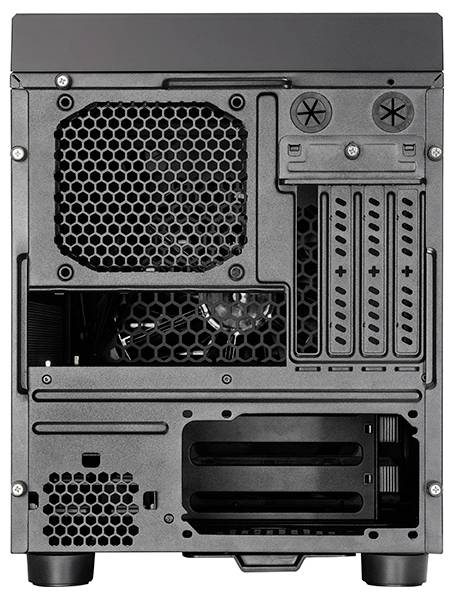

- Number of expansion slots
4
- Liquid cooling capability
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3538027 Chieftec CI-03B-OP Microtower PC casing Black
Description

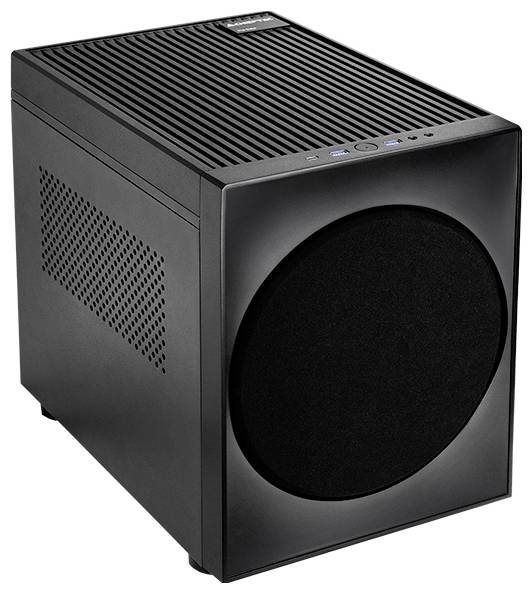

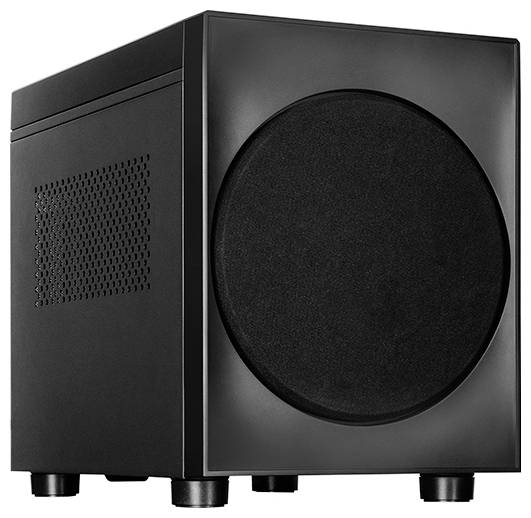

The CI-03B-OP is a compact mATX cube housing with a unique hi-fi style and
Modern design. Inspired by furniture craftsmanship, it fits seamlessly into minimalist
Living quarters.

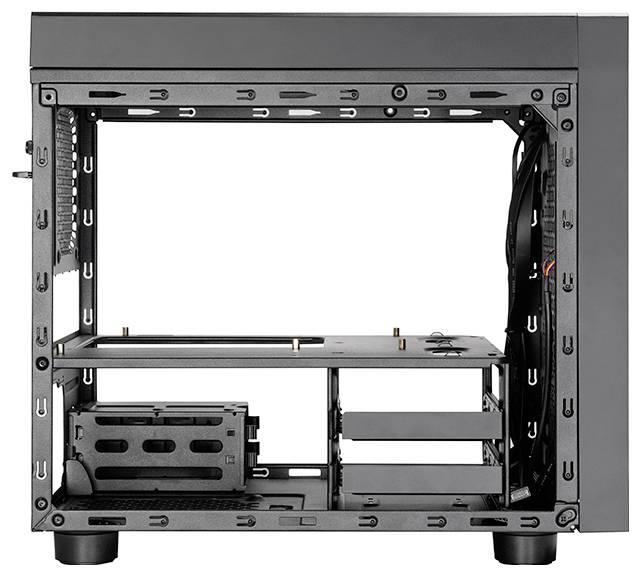

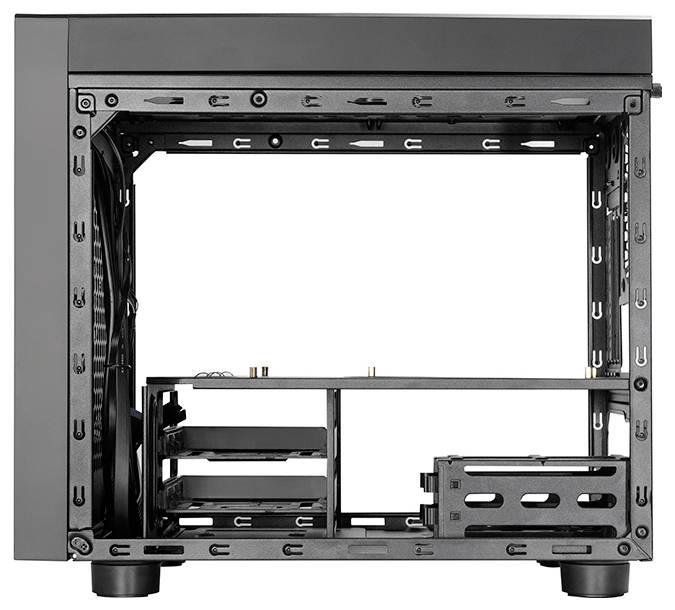

The housing offers flexible hardware compatibility. It supports ATX power supplies
Up to a length of 160 mm, CPU-cooler up to 160 mm height as well as graphics cards up to
335mm long. There are several options available for optimal cooling, including

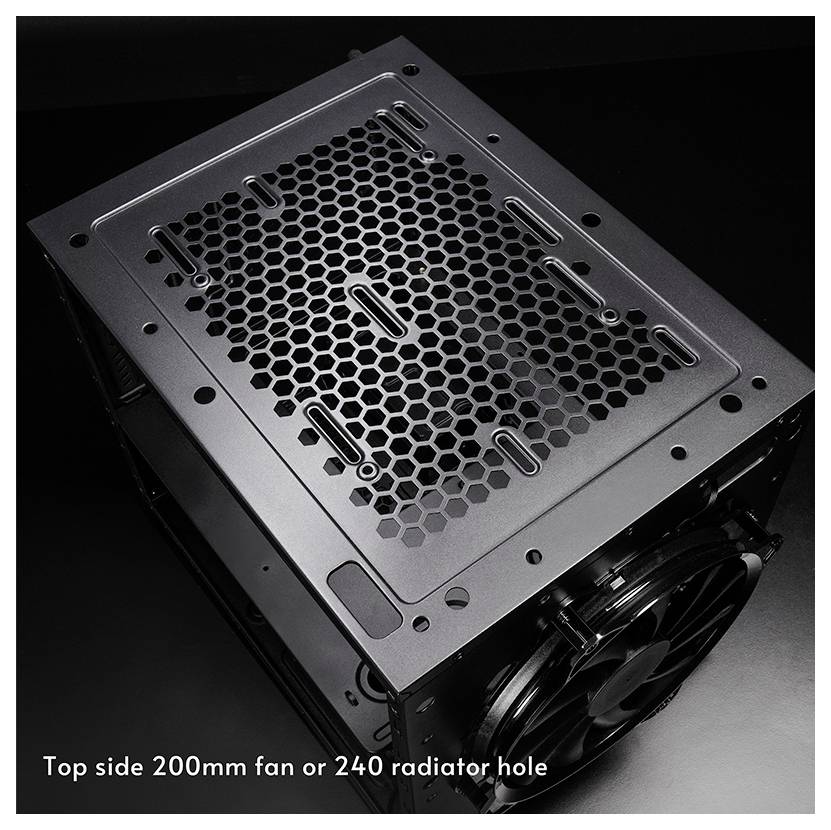

Support for 200mm fans or a 240mm radiator at the front and the top. Ein

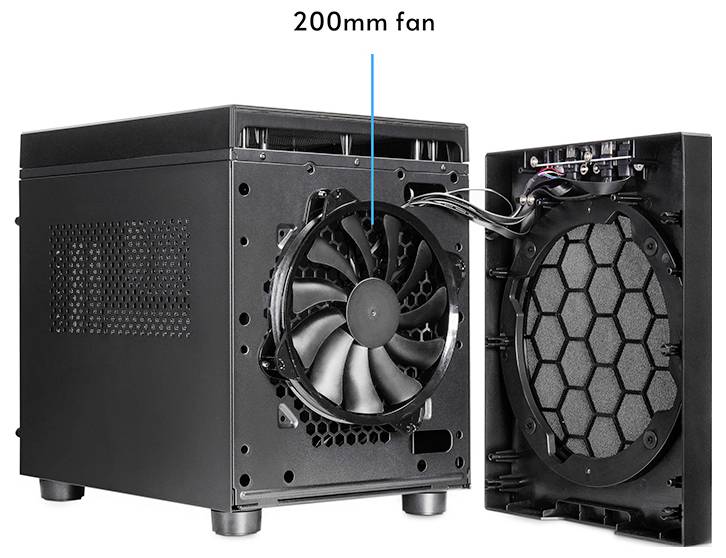

200mm PWM-fan with long-life HDB-bearing is already pre-installed on the front

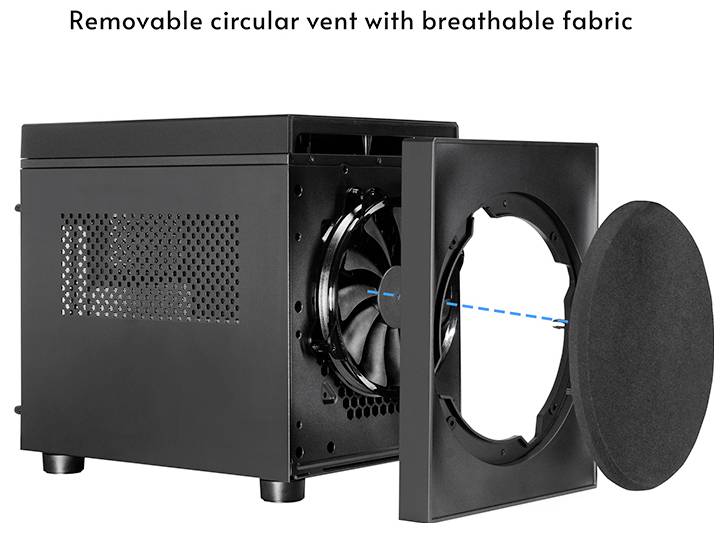

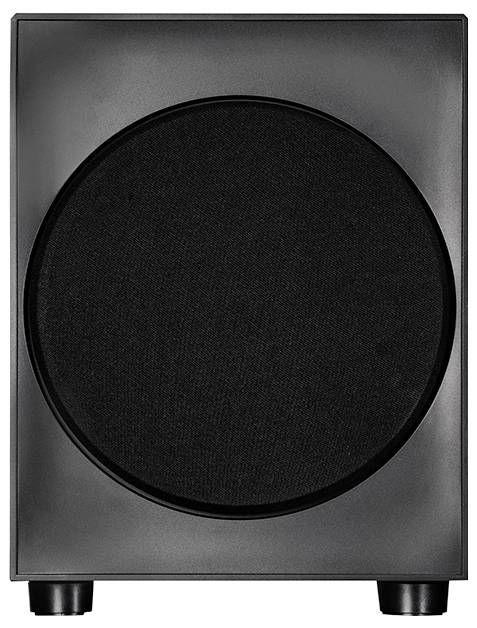

And provides for a quiet operation. The front of the casing is equipped with a unique round
Ventilation opening with breathable material, designed for the 200-mm fan.

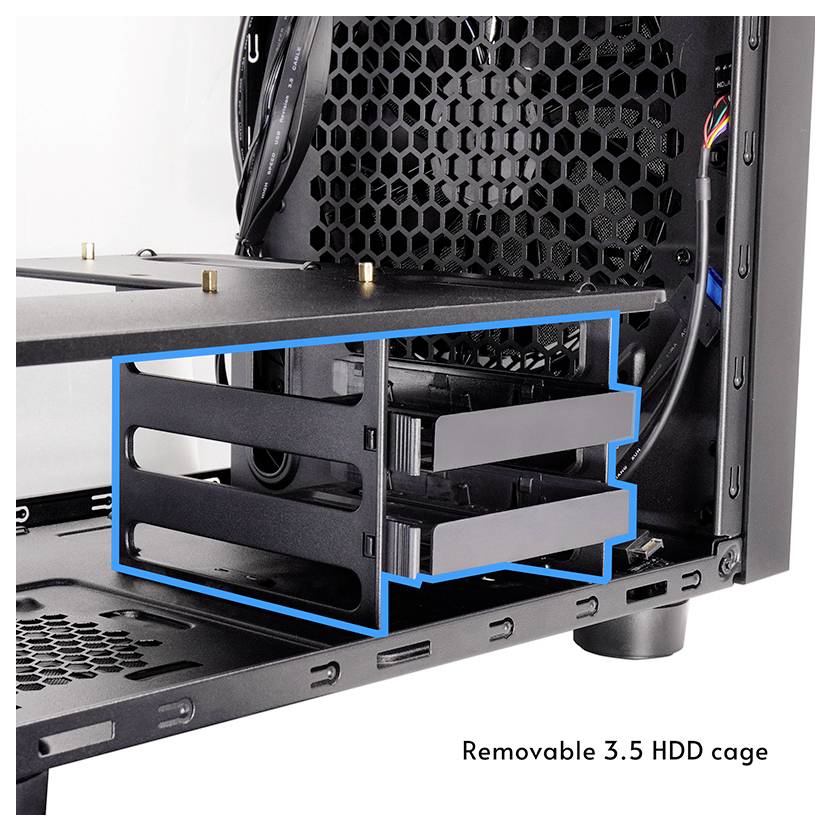

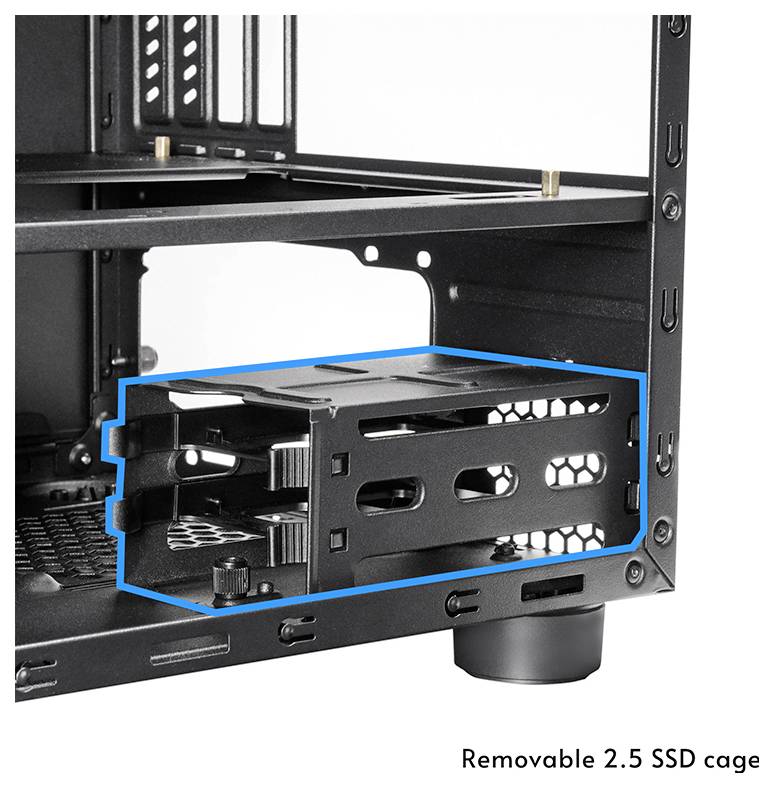

Despite its compact size the housing offers place for two 3.5"-HDDs as well as two 2.5"-SSDs
And thus also meets higher storage requirements.
This text is machine translated.
Modern design. Inspired by furniture craftsmanship, it fits seamlessly into minimalist
Living quarters.
The housing offers flexible hardware compatibility. It supports ATX power supplies
Up to a length of 160 mm, CPU-cooler up to 160 mm height as well as graphics cards up to
335mm long. There are several options available for optimal cooling, including
Support for 200mm fans or a 240mm radiator at the front and the top. Ein
200mm PWM-fan with long-life HDB-bearing is already pre-installed on the front
And provides for a quiet operation. The front of the casing is equipped with a unique round
Ventilation opening with breathable material, designed for the 200-mm fan.
Despite its compact size the housing offers place for two 3.5"-HDDs as well as two 2.5"-SSDs
And thus also meets higher storage requirements.
This text is machine translated.
Features
- Impressive Hi-Fi-inspired design
- Pre-installed 200mm PWM fan

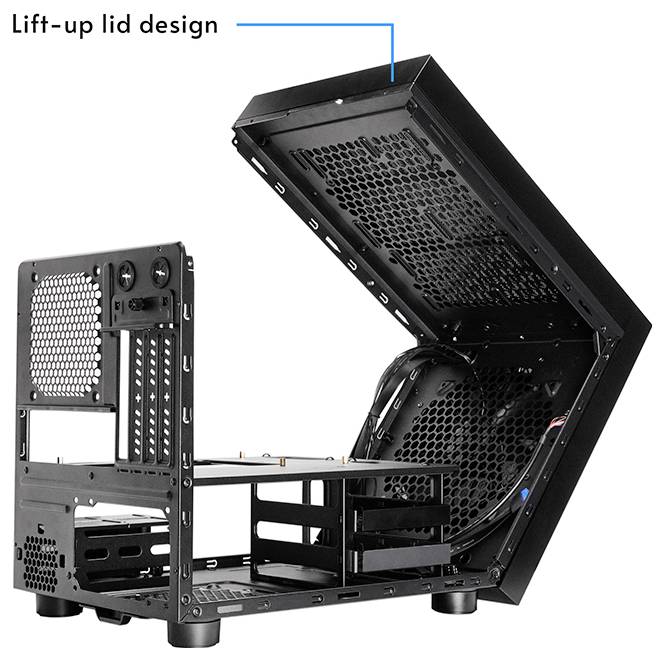

- Innovative, fold-out mechanism for easy installation
- Supports radiators up to max. 240 mm
- Compact form factor design
