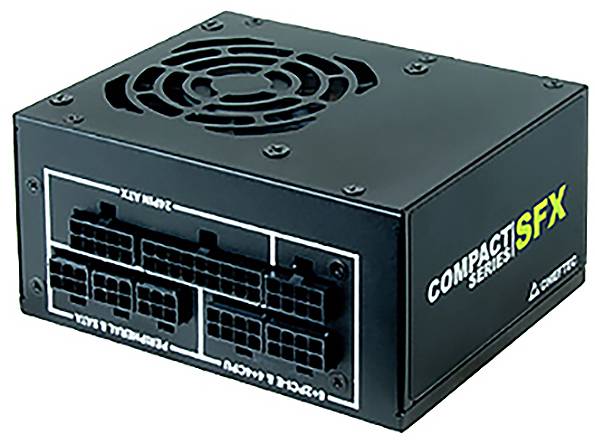

Chieftec CSN-550C PC power supply unit 550 W SFX 80 PLUS Gold
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
550 W
Modular
Yes
Certification
80 PLUS Gold
Form factor
SFX
Highlights & Details
Chieftec CSN-550C PC power supply unit
- Power supply unit output 550 W
- PCI-Express (6+2-Pin) 2x
- Cable management Yes
- 80 PLUS Gold
Technical specifications
- 80 Plus Certification 80 PLUS Gold
- Power Supply Unit (PSU) Form factor PS/2
- Fan diameter 8 cm
- Number of fans: 1 fans
- Product type
PC power supply unit
- PSU output power
550 W
- Modular
Yes
- Certification
80 PLUS Gold
- Form factor
SFX
- Factory colour
Black
- Dim
(W x H x D) 125 x 64 x 100 mm
- Depth
100 mm
- Height
64 mm
- Width
125 mm
- Weight
1.884
- -12V / DC
0.3 A
- 5 V DC
15 A
- +5V / DC SB
3 A
- 24-pin
1
- 20+4-pin.
1
- 4-pin Molex
3
- 6-pin PCIe
2
- 5-pin SATA
4
- Output rating > 500 W
550 W
- Power rating
501 - 750 W
- Fan size
80 mm
- 3.3V DC
18 A
- Power supply (details)
100 - 240 V
- UKCA
yes
- Efficiency
90 %
- Floppy drive power connector
1
- ATX power connector (20+4 pin)
yes
- CPU power connector (4+4 pin)
yes
- Power factor
0.9
- Combined power (+3.3V)
90 W
- Combined power (+5V)
90 W
- Max output current (+12V1)
45.8 A
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3414278 Chieftec CSN-550C PC power supply unit 550 W SFX 80 PLUS Gold
Description
Power in SFX format with unbelievable 550W power is not everything, WAS distinguishes this tiny thing. No more unnecessary cables, through the complete cable management and the 80Plus Gold certification speak for themselves. The large 80mm Ultra Silent fan is optimally aligned to the size of the power supply.
This text is machine translated.
This text is machine translated.
Features
- UVP
- OVP
- SCP (short-circuit protection)
- OPP (overload protection)
- OCP (Overcurrent protection)
- Over temperature protection (OTP)
- AFC (Automatic Fan Speed Control)
