Chieftec CSN-650C PC power supply unit 650 W SFX 80 PLUS Gold
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
650 W
Modular
Yes
Certification
80 PLUS Gold
Form factor
SFX

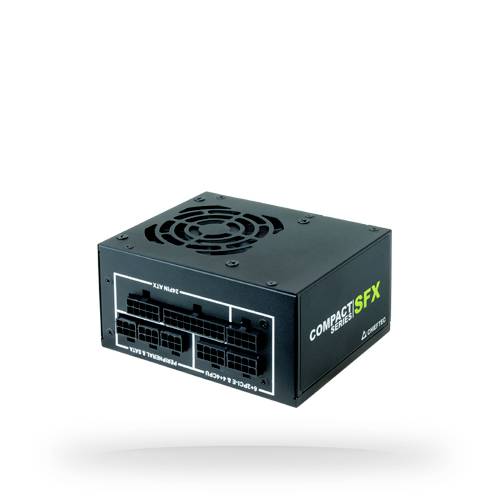

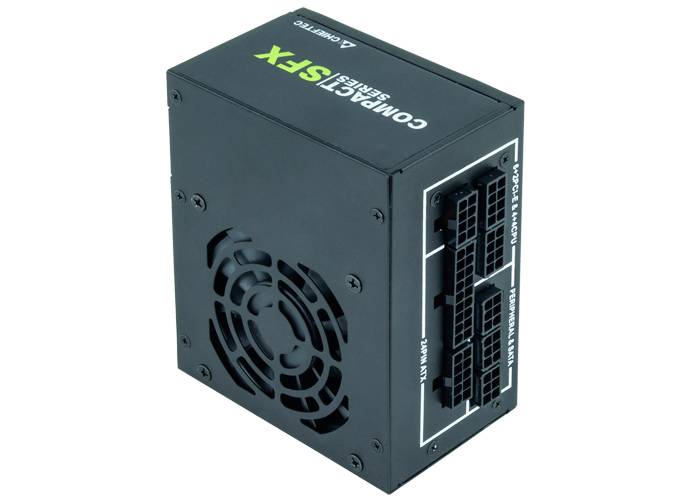

Chieftec CSN-650C PC power supply unit
Highlights & Details
- Power supply unit output 650 W
- PCI-Express (6+2-Pin) 2x

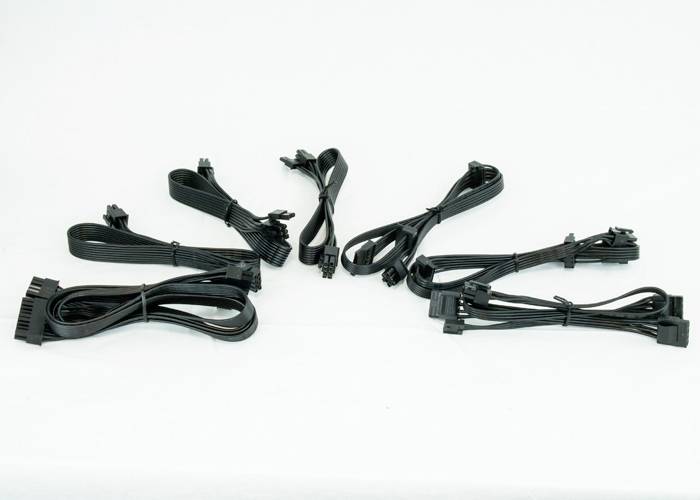

- Cable management Yes
- 80 PLUS Gold
Technical specifications
- Product type
PC power supply unit
- PSU output power
650 W
- Modular
Yes
- Certification
80 PLUS Gold
- Form factor
SFX
- Factory colour
Black
- Dim
(W x H x D) 125 x 64 x 100 mm
- Depth
100 mm
- Height
64 mm
- Width
125 mm
- Weight
1.897
- -12V / DC
0.3 A
- +12 V/DC (1)
54 A
- 5 V DC
15 A
- +5V / DC SB
3 A
- 20+4-pin.
3
- 6-pin PCIe
2
- Power rating
501 - 750 W
- Design height
64 mm
- Fan size
80 mm
- 3.3V DC
18 A
- Power supply (details)
100 - 240 V
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2937245 Chieftec CSN-650C PC power supply unit 650 W SFX 80 PLUS Gold
Description
Packed Power in SFX format with unbelievable 650W power is not all, WAS distinguishes this tiny thing. No more unnecessary cables, through the complete cable management and the 80Plus Gold certification speak for themselves. The large 80mm Ultra Silent fan is optimally aligned to the size of the power supply.
This text is machine translated.
This text is machine translated.
Features
- Total power 650 W.
- AC input voltage 100 - 240 V
- AC input frequency 47 - 63 Hz Motherboard connector plug 20+4 pin ATX Purpose: PC
- Power Supply Unit (PSU) Form factor: SFX
- 80 Plus Certification 80 PLUS Gold. Product color: Black
- Fan diameter 8 cm
- Number of fans: 1 fans. Width 125 mm
- Depth: 100 mm
- Height: 64 mm
